5-5-4 5-5 バックアップユ ニット UP UNIT, G BACK ｲﾗｽ ﾄ番号 Re f.No. 部品コ ード Parts Code 部品名 Part s Name Serial No. 個数 Q't y 備考 Rem arks 同期 Repl. 53 4-722-531-02 ﾊﾞﾂｸ ｱﾂﾌﾟ ﾌﾟﾚ - ﾄ ｶﾊﾞ - (1) COVER , BACK UP PLATE (1 ) 1 54 4-722-536…
5-5-3
5-5
バックアップユニット
UP UNIT, G BACK
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
27 2-694-376-01
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ﾌﾟﾚ
-
ﾄ
(K2)
PLATE (K2), BACK UP
1
K2
28 2-697-103-01
ｼﾘﾝﾀﾞ
ﾋﾟﾝ
PIN, CYLINDER
1
29 2-697-104-01
ｼﾘﾝﾀﾞ
-
ｽﾍﾟ
-
ｻ
ﾌﾟﾚ
-
ﾄ
(2)
PLATE (2), CYLINDER SPACER
1
30 2-697-105-01
ﾌﾟﾂｼﾕ
ｱﾂﾌﾟ
ｽﾄﾂﾊﾟ
-
STOPPER, PUSH UP
2
31 2-896-628-01
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ﾘﾝｸ
(2)
LINK (2), BACK UP
4
- 2-896-629-01
ｾﾝｻ
-
ｶﾞ
-
ﾄﾞ
GUARD, SENSOR
1
- 2-918-766-01
ﾕﾆｵﾝ
ﾜｲ
(KQ2U06-00)
UNION Y (KQ2U06-00),
2
KQ2U06-00, SMC
- 3-113-244-01
ｽﾋﾟ
-
ﾄﾞ
ｺﾝﾄﾛ
-
ﾗ
(AS2001FM-06)
CONTROLLER (AS2001FM-06),SPEED
1
AS2001FM-06, SMC
35 3-285-666-01
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ﾁﾖｳｾｲ
ﾖｳ
ｼﾑ
(A)
SHIM (A), BACK UP ADJUSTMENT
4
CHOICE
36 3-285-666-11
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ﾁﾖｳｾｲ
ﾖｳ
ｼﾑ
(B)
SHIM (B), BACK UP ADJUSTMENT
4
CHOICE
37 3-285-666-21
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ﾁﾖｳｾｲ
ﾖｳ
ｼﾑ
(C)
SHIM (C), BACK UP ADJUSTMENT
4
CHOICE
38 3-288-059-01
ｻｲﾄﾞ
ﾍﾞ
-
ｽ
(R)
BASE (R), SIDE
1
39 3-288-059-11
ｻｲﾄﾞ
ﾍﾞ
-
ｽ
(L)
BASE (L), SIDE
1
- 4-706-230-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M4X15)
BOLT (M4X15)
8
M4X15
41 4-706-724-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X5)
BOLT (M3X5), HEXAGON SOCKET
8
M3X5
42 4-706-724-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X6)
BOLT (M3X6), HEXAGON SOCKET
4
M3X6
43 4-706-724-21
ﾛﾂｶﾅ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M3X8)
BOLT (M3X8), HEXAGON SOCKET
1
M3X8
44 4-706-725-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X8)
BOLT (M4X8), HEXAGON SOCKET
46
M4X8
- 4-706-725-04
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X16SUS)
BOLT (M4X16SUS),HEXAGON SOCKET
16
M4X16SUS
46 4-706-725-11
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X10)
BOLT (M4X10), HEXAGON SOCKET
6
M4X10
- 4-706-725-12
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X12SUS)
BOLT (M4X12SUS),HEXAGON SOCKET
24
M4X12SUS
48 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
4
M4X6
49 4-706-740-19
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X12SUS)
BOLT (M6X12SUS),HEXAGON SOCKET
8
M6X12SUS
- 4-708-047-21
ｽﾋﾟ
-
ﾄﾞ
ｺﾝﾄﾛ
-
ﾗ
(AS2001F-06)
CONTROLLER, SPEED (AS2001F-06)
3
AS2001F-06, SMC
51 4-708-141-11
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KJL06-M5)
UNION, ELBOW
6
KJL06-M5, SMC
- 4-720-189-11
ﾂｷﾞﾃ
ﾁ
-
ｽﾞ
(KQ2T06-00)
JOINT, JOINT TEE (KQ2T06-00)
4
KQ2T06-00, SMC
5-5-4
5-5
バックアップユニット
UP UNIT, G BACK
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
53 4-722-531-02
ﾊﾞﾂｸｱﾂﾌﾟ
ﾌﾟﾚ
-
ﾄ
ｶﾊﾞ
- (1)
COVER, BACK UP PLATE (1)
1
54 4-722-536-01
ﾊﾞﾂｸｱﾂﾌﾟ
ｳﾚﾀﾝ
ｽﾄﾂﾊﾟ
-
STOPPER, BACK UP URETHANE
1
55 4-722-615-01
ﾃｲﾄｳ
ﾎﾞﾙﾄ
(CBS3-6)
BOLT, LOW HEAD (CBS3-6)
2
CBS3-6
56 4-722-814-01
ｼﾘﾝﾀﾞ
-
ｽﾍﾟ
-
ｻ
ﾌﾞﾛﾂｸ
(1)
BLOCK (1), CYLINDER SPACER
1
57 4-722-844-02
ﾊﾞﾂｸ
ｱﾂﾌﾟ
ｼﾘﾝﾀﾞ
ﾍﾞ
-
ｽ
CD
BASE (CD), BACK UP CYLINDER
1
- 7-681-000-05
+K M3X12
SCREW +K M3X12
1
59 7-682-246-02
+K M3X5
SCREW +K M3X5
2
- 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
12
- 7-688-003-01
W 3, SMALL
W 3, SMALL
4
W 3, SMALL
- 7-688-004-01
W 4, SMALL
W 4, SMALL
20
W 4, SMALL
63 1-763-892-11
ﾄﾞﾗｲﾊﾞ
(AXHD30K)
DRIVER (AXHD30K)
6
AXHD30K, ORIENTAL MOTOR
64 1-480-820-11
(S)
ｵ
-
ﾄ
ｽｲﾂﾁ
ASSY (D-M9NV)
SWICH ASSY, (S) AUTO (D-M9NV)
1
D-M9NV, SMC

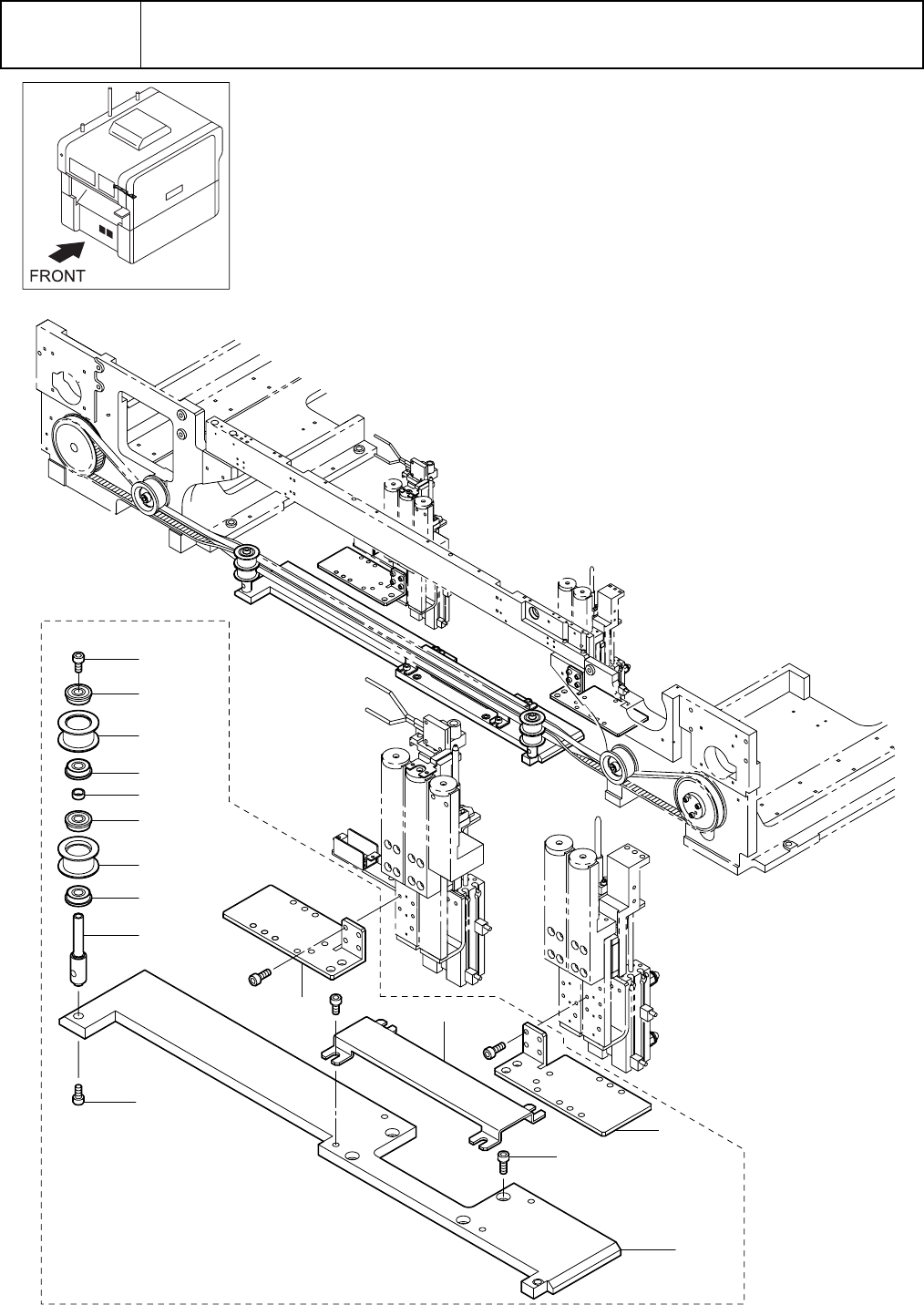

5-6-1
5-6
ベルト押さえＡＳＳＹ
RETAINER ASSY, BELT
9
8
6
8
7
8
6
8
5
9
1
4
10
2
3
