11 - 4 - 2 11 - 4 トレイ架台ユニット／Ｖ軸 STAND UNIT, TRAY / V SHAFT ｲﾗｽﾄ番号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 1-487-183-11 (S) ｾﾚｸﾄ ｽｲﾂﾁ ASSY (AS6M-21Y1P) (S) SELECT SWITCH ASSY (…

100%1 / 240

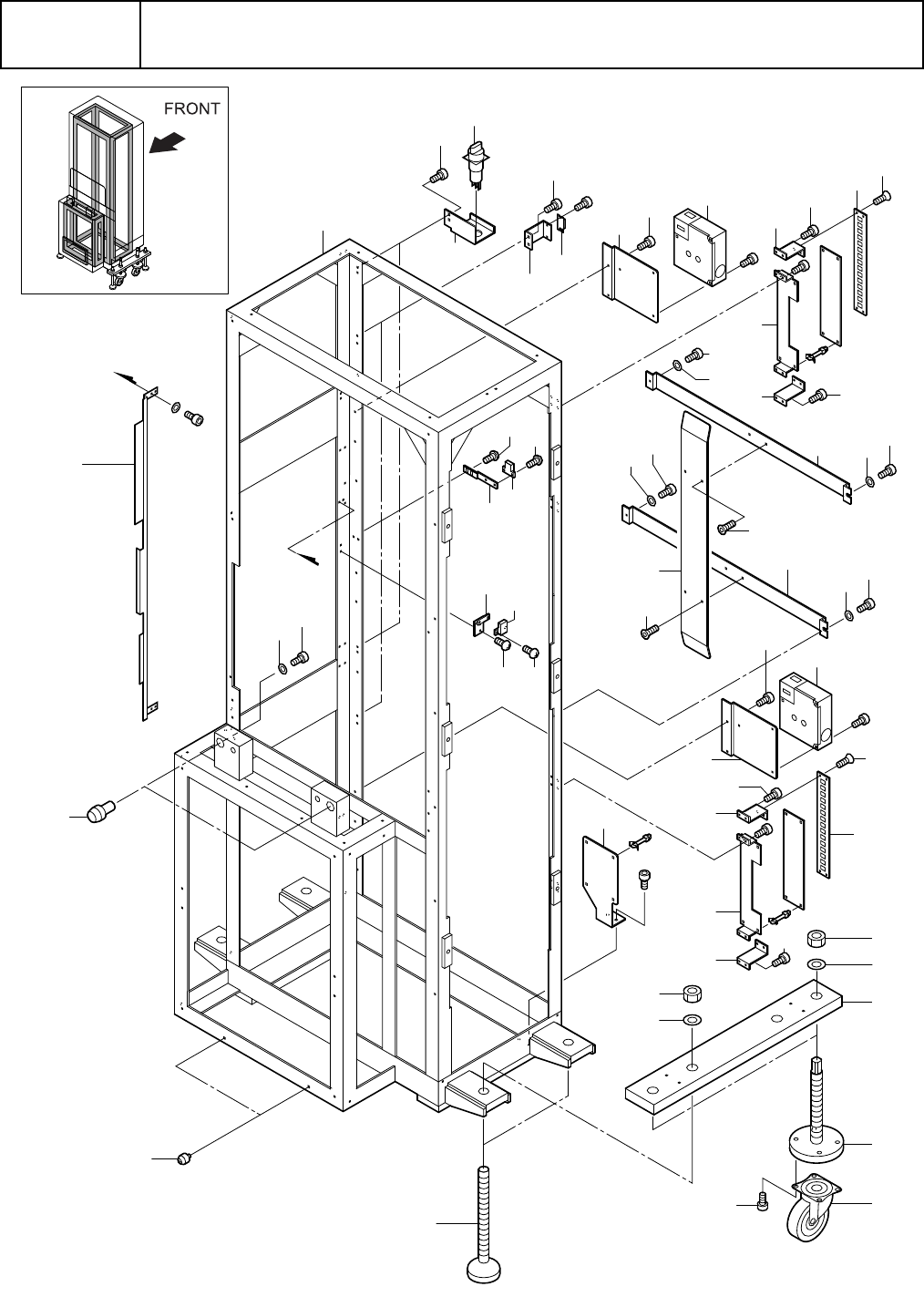

11-4-1
11-4
トレイ架台ユニット／Ｖ軸
STAND UNIT, TRAY / V SHAFT
A
21
10
11
7
5
35
35
24
20
9
14
22
16
19
29
15
29
13
2
29
40
29
23
28
40
29
40
29
28
23
29
40
37
37
12
3
26
27
3
37 37
5
6
29
6
15
2
29
13
29
8
17
1
29
18
25
22
16
29
19
A
32
33
33
11-4-2
11-4
トレイ架台ユニット／Ｖ軸
STAND UNIT, TRAY / V SHAFT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-487-183-11
(S)
ｾﾚｸﾄ
ｽｲﾂﾁ
ASSY (AS6M-21Y1P)
(S) SELECT SWITCH ASSY (AS6M-21Y1P)
2
AS6M-21Y1P
2 1-798-126-11
ﾄﾞｱ
ｽｲﾂﾁ
(D4NL-1DFG-B)
SWITCH, DOOR (D4NL-1DFG-B)
2
D4NL-1DFG-B
3 1-809-471-11
ﾌｵﾄｾﾝｻ
(EE-SPY301)
PHOTO SENSOR (EE-SPY301)
2
EE-SPY301
- 2-676-193-01
ｹ
-
ﾌﾞﾙ
ｸﾗﾝﾌﾟ
(ST13.5-B)
CLAMP (ST13.5-B), CABLE
2
ST13.5-B
5 2-915-933-41
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M8 SUS)
BOLT (M8 SUS), HEXAGON SOCKET
18
M8 SUS
6 2-915-947-11
ｼﾞﾕｳｼﾞ
ｱﾅﾂｷ
ｻﾗ
ｺﾈｼﾞ
(M3 SUS)
SCREW (M3 SUS), (HOLE) PLATE
4
M3 SUS
7 3-282-369-01
ｱｼﾞﾔｽﾀ
ﾌﾂﾄ
(LEMT20-180E)
FOOT (LEMT20-180E), ADJUSTOR
4
LEMT20-180E
8 3-282-370-01
ﾏｸﾞﾈﾂﾄ
ｷﾔﾂﾁ
(TL-194)
CATCHER (TL-194), MAGNET
2
TL-194
9 3-282-372-01
ｷﾔｽﾀ
- (K-420G-75N)
CASTER (K-420G-75N)
4
K-420G-75N
10 3-282-521-01
ﾕﾆﾂﾄ
ｺﾃｲ
ﾋﾟﾝ
PIN, UNIT FIXED
2
11 3-282-523-01
ｲﾁｷﾞﾒ
ﾋﾟﾝ
PIN, POSITIONING
2
12 3-282-524-01
ﾊﾟﾚﾂﾄ
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
BRACKET, PALLET SENSOR
1
13 3-282-525-01
ｾ
-
ﾌﾃｲ
ﾄﾞｱ
SW
ﾌﾞﾗｹﾂﾄ
BRACKET, SAFETY DOOR SW
2
14 3-282-529-01
ﾌﾞﾗｹﾂﾄ
BRACKET
1
15 3-282-566-01
ｱｸﾘﾙ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
(1)
BRACKET (1), ACRYLIC FITTING
2
16 3-282-566-11
ｱｸﾘﾙ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
(2)
BRACKET (2), ACRYLIC FITTING
2
17 3-282-567-01
ﾏｸﾞﾈﾂﾄ
ﾌﾞﾗｹﾂﾄ
BRACKET, MAGNET
2
18 3-282-568-01
ﾌﾞﾚ
-
ｷ
ｽｲﾂﾁ
ﾌﾞﾗｹﾂﾄ
BRACKET, BRAKE SWITCH
2
19 3-282-591-01
ｱﾄﾞﾚｽ
ﾏﾄﾞ
(
ｳｴ
)
WINDOW (UPPER), ADDRESS
2
20 3-282-608-02
ｷﾔｽﾀ
-
ﾍﾞ
-
ｽ
BASE, CASTER
4
21 3-282-628-01
ｹ
-
ﾌﾞﾙ
ﾍﾞﾔ
ﾚ
-
ﾙ
RAIL, CABLE BARE
1
22 3-282-630-01
LED
ﾌﾞ
ﾌﾞﾗｹﾂﾄ
BRACKET, LED BLOCK
2
23 3-282-632-01
ｼﾔﾂﾀ
-
ｶﾞｲﾄﾞ
ｻﾎﾟ
-
ﾄ
SUPPORT, SHUTTER GUIDE
2
24 3-282-634-02
ｱｼﾞﾔｽﾀ
ﾌﾟﾚ
-
ﾄ
PLATE, ADJUSTOR
2
25 3-282-831-02
ﾄﾚｲ
ｶﾀﾞｲ
STAND, TRAY
1
26 3-294-611-01
ｼﾔﾂﾀ
-
ｶﾞｲﾄﾞ
(2)
GUIDE (2), SHUTTER
1
11-4-3
11-4
トレイ架台ユニット／Ｖ軸
STAND UNIT, TRAY / V SHAFT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
27 3-870-457-01
ｾﾝｻ
-
ﾌﾞﾗｹﾂﾄ
(
ｼﾀ
)
BRACKET (LOWER), SENSOR
1
28 4-702-262-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ｻﾗ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
4
M4X6
29 4-706-725-51
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X6)
BOLT (M4X6), HEXAGON SOCKET
20
M4X6
- 4-706-740-04
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X10SUS)
BOLT (M6X10SUS),HEXAGON SOCKET
8
M6X10SUS
- 4-706-740-21
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M6X8)
BOLT (M6X8), HEXAGON SOCKET
4
M6X8
32 4-716-152-09
ﾋﾗ
ｻﾞｶﾞﾈ
(M12
ﾁﾕｳ
SUS)
WASHER (M12 MIDDLE SUS), PLAIN
4
M12 MIDDLE SUS
33 4-716-152-11
ﾋﾗ
ｻﾞｶﾞﾈ
(M20
ﾁﾕｳ
SUS)
WASHER (M20 MIDDLE SUS), PLAIN
4
M20 MIDDLE SUS
- 4-718-724-05
ﾛﾂｶｸ
ﾅﾂﾄ
(1
ｼﾕ
) (M4X0.7 SUS)
NUT(1TYPE),HEXAGON(M4X0.7 SUS)
22
35 4-718-724-12
ﾛﾂｶｸ
ﾅﾂﾄ
(1
ｼﾕ
) (M20X2.5 SUS)
NUT (1TYPE),HEXAGON
4
- 7-623-423-07
LW 4, TYPE B
LW 4, TYPE B
8
37 7-682-147-01
+P 3X6
SCREW +P 3X6
4
- 7-682-160-01
+P 4X6
SCREW +P 4X6
23
- 7-688-003-11
W 3, MIDDLE
W 3, MIDDLE
6
40 7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
6
