13-7-1 13-7 Ｉ／Ｏユニット２ I/ O U N IT (2 )
13-6-2
13-6
Ｉ／Ｏユニット１
I/O UNIT (1)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-244-386-11
ｶｸｶﾞﾀ
ｾﾒﾝﾄ
ﾃｲｺｳｷ
(MHS-10 8.2*)
RESISTOR, SQUARE CEMENT-COATED
1
MHS-10 8.2*
2 1-789-406-11
ｺﾝﾍﾞｱ
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
4-A ASSY
CONVEYOR CONTROL BOARD4-A ASSY
1
3 1-789-493-11
ｾ
-
ﾌﾃｲ
ﾘﾚ
-
ｷﾊﾞﾝ
ASSY
SAFETY RELAY BOARD ASSY
1
4 2-681-968-02
PL
ﾗﾍﾞﾙ
(
ｺｳｵﾝ
ﾁﾕｳｲ
)
LABEL,PL
1
5 2-694-579-01
I/O
ﾕﾆﾂﾄ
1
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, I/O UNIT 1 MAIN
1
6 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
8
KGLS-4S, MORIMIYA
7 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
8 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
9 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
10 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
4
+PSW 3X6
11 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
3
+PSW 4X8

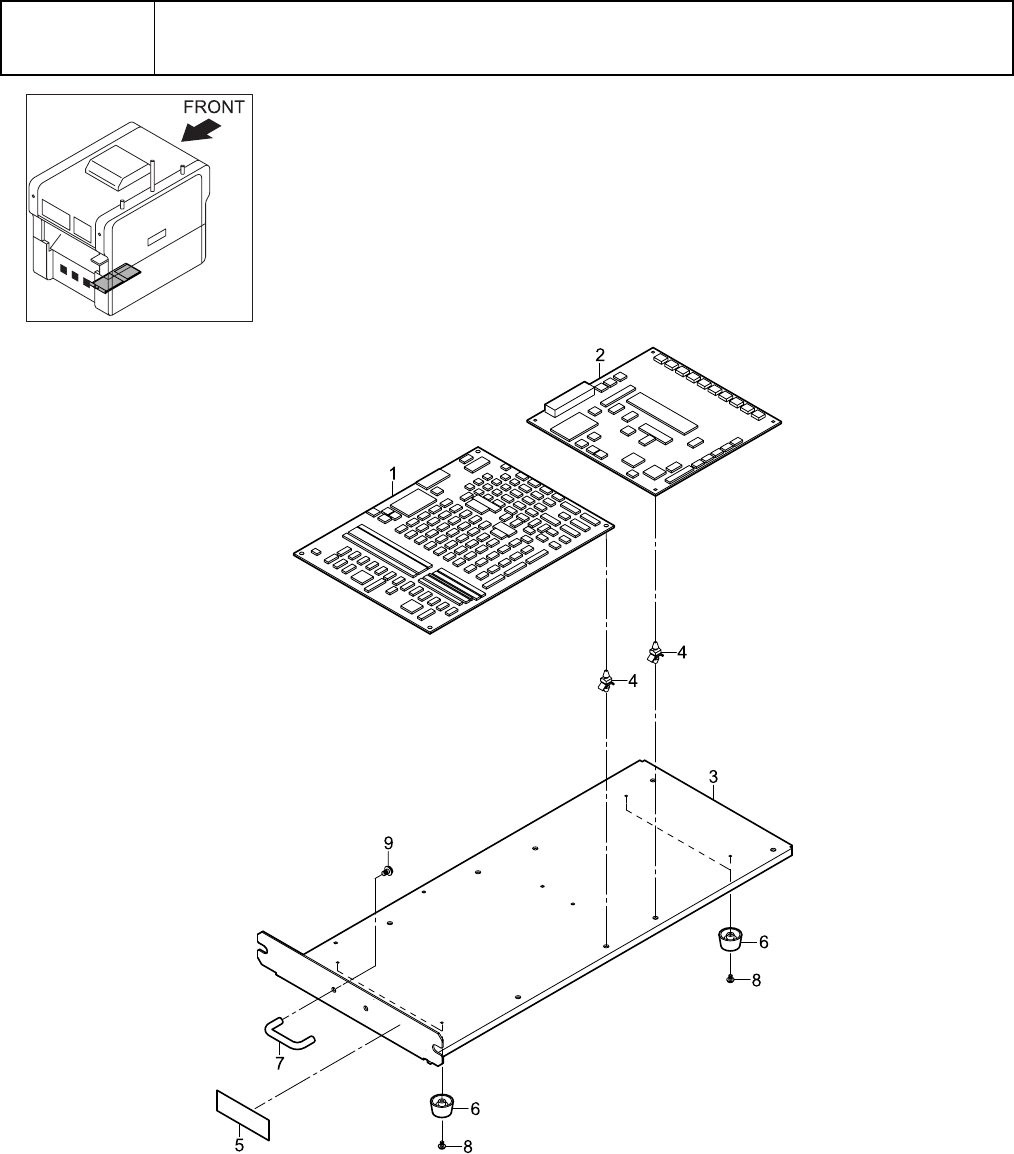

13-7-1
13-7
Ｉ／Ｏユニット２
I/O UNIT (2)
13-7-2
13-7
Ｉ／Ｏユニット２
I/O UNIT (2)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-789-403-11
EMG I/L
ｷﾊﾞﾝ
3-B ASSY
EMG I/L BOARD 3-B ASSY
1
2 1-789-405-11
LED
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
4 ASSY
LED CONTROL BOARD 4 ASSY
1
3 2-694-416-01
I/O
ﾕﾆﾂﾄ
2,3
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, I/O UNIT 2,3 MAIN
1
4 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
10
KGLS-4S, MORIMIYA
5 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
6 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
7 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
8 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
4
+PSW 3X6
9 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
2
+PSW 4X8
