13-9-1 13-9 ＰＯＷＥＲ ユ ニット PO W ER UNIT
13-8-2
13-8
Ｉ／Ｏ ユニット３
I/O UNIT (3)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-789-403-11
EMG I/L
ｷﾊﾞﾝ
3-B ASSY
EMG I/L BOARD 3-B ASSY
1
2 1-789-405-11
LED
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
4 ASSY
LED CONTROL BOARD 4 ASSY
1
3 2-694-416-01
I/O
ﾕﾆﾂﾄ
2,3
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, I/O UNIT 2,3 MAIN
1
4 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
10
KGLS-4S, MORIMIYA
5 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
6 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
7 4-711-852-31
ﾏﾙﾎﾞｳ
ﾄﾂﾃ
(A-1042-C-9)
HANDLE, ROUND BAR (A-1042-C-9)
1
A-1042-C-9, TAKIGEN
8 7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
4
+PSW 3X6
9 7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
2
+PSW 4X8

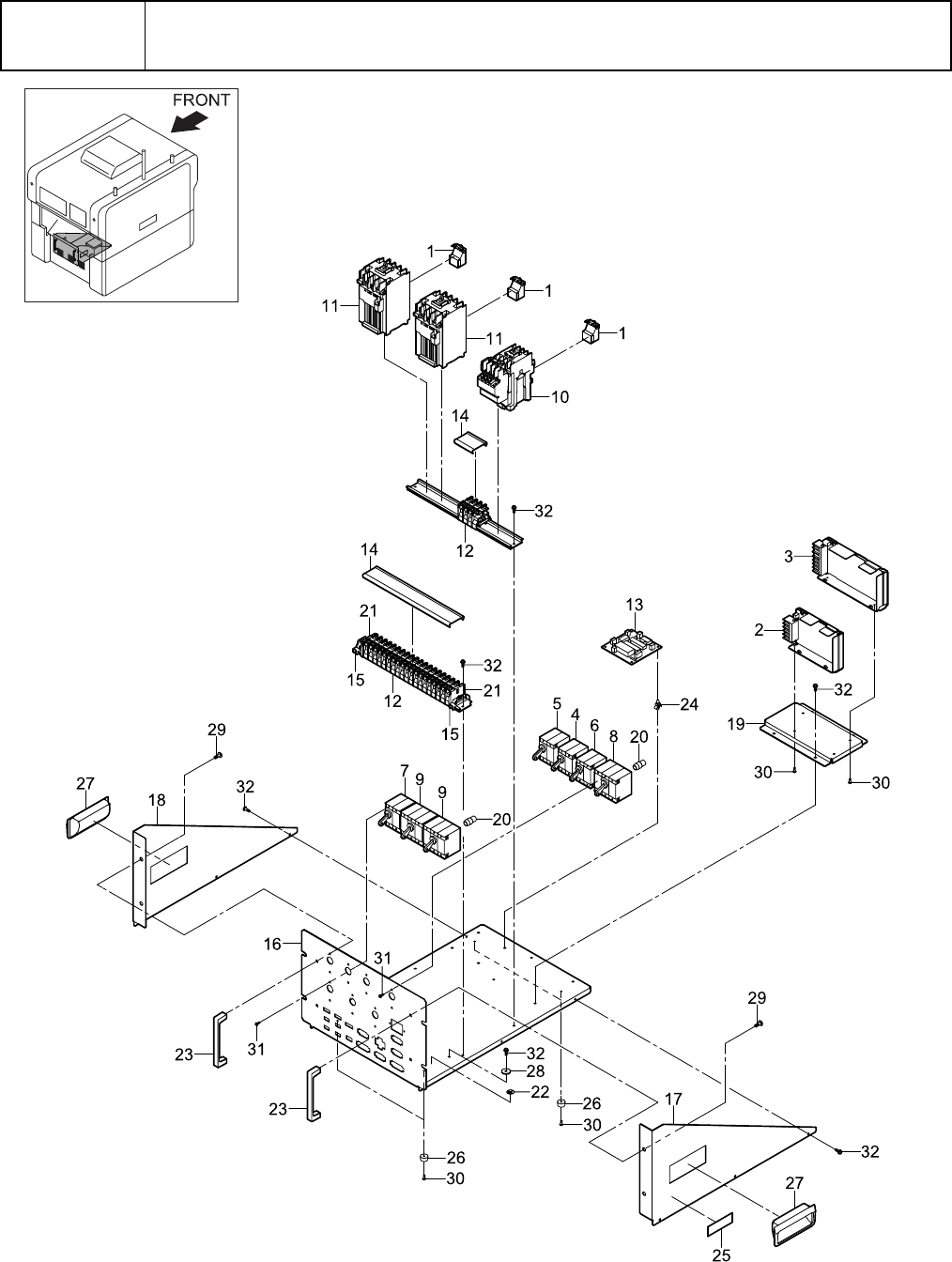

13-9-1
13-9
ＰＯＷＥＲ ユニット
POWER UNIT
13-9-2
13-9
ＰＯＷＥＲ ユニット
POWER UNIT
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 1-234-904-11
ｺｲﾙ
ｻ
-
ｼﾞ
ｷﾕｳｼﾕｳ
ﾕﾆﾂﾄ
(UN-SA25)
COIL SURGE UNIT (UN-SA25)
3
UN-SA25,
MITSUBISHI ELECTRIC
2 1-474-014-11
ｽｲﾂﾁﾝｸﾞ
ﾚｷﾞﾕﾚ
-
ﾀ
(HWS50-24)
REGULATOR, SWITCHING (HWS50-*)
1
HWS50-24, MISUMI
3 1-474-015-11
ｽｲﾂﾁﾝｸﾞ
ﾚｷﾞﾕﾚ
-
ﾀ
(HWS100-12)
REGULATOR, SWITCHING (HWS100*)
1
HWS100-12, MISUMI
4 1-576-981-11
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
- (CP32V/3N)
BREAKER, CIRCUIT (CP32V/3N)
1
CP32V/3N, FUJI ELECTRIC
5 1-576-981-21
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
(CP32V/5N)
BREAKER, CIRCUIT (CP32V/5N)
1
CP32V/5N, FUJI ELECTRIC
6 1-576-981-31
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
(CP32V/7.5N)
BREAKER, CIRCUIT (CP32V/7.5N)
1
CP32V/7.5N, FUJI ELECTRIC
7 1-576-981-41
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
(CP32V/10N)
BREAKER, CIRCUIT (CP32V/10N)
1
CP32V/10N, FUJI ELECTRIC
8 1-576-982-11
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
- (CP33V/2N)
BREAKER, CIRCUIT (CP33V/2N)
1
CP33V/2N, FUJI ELECTRIC
9 1-576-982-21
ｻ
-
ｷﾂﾄ
ﾌﾞﾚ
-
ｶ
(CP33V/15N)
BREAKER, CIRCUIT (CP33V/15N)
2
CP33V/15N, FUJI ELECTRIC
10 1-755-537-11
ﾃﾞﾝｼﾞ
ｶｲﾍｲｷ
(MSOD-N11KP)
SWITCH, ELECTROMAGNETIC (MSOD*
1
MSOD-N11KP
11 1-755-595-11
ｺﾝﾀｸﾀ
(SD-N35 DC24V 2A2B)
CONTACTOR (SD-N35 DC24V 2A2B)
2
SD-N35 DC24V 2A2B,
MITSUBISHI ELECTRIC
12 1-780-409-11
ﾀﾝｼﾀﾞｲ
(BNH30W)
TERMINAL BOARD (BNH30W)
23
BNH30W, IDEC
13 1-789-492-11
ﾃﾞﾝｹﾞﾝ
ON/OFF
ｾｲｷﾞﾖ
ｷﾊﾞﾝ
3 ASSY
POWERON/OFF CONTRULBOARD3 ASSY
1
14 2-584-265-01
ﾀﾝｼﾀﾞｲ
ｶﾊﾞ
- (BNC230)
COVER (BNC230), TERMINAL TABLE
1
BNC230, IDEC
15 2-679-204-01
ﾄﾒ
ｶﾅｸﾞ
(BNL6)
BRACKET (BNL6), STOPPER
2
BNL6, IDEC
16 2-694-412-01
POWER
ﾕﾆﾂﾄ
ﾒｲﾝ
ﾊﾟﾈﾙ
PANEL, POWER UNIT MAIN
1
17 2-694-413-01
POWER
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾐｷﾞ
)
PANEL (RIGHT), POWER UNIT SIDE
1
18 2-694-414-01
POWER
ﾕﾆﾂﾄ
ｿｸﾒﾝ
ﾊﾟﾈﾙ
(
ﾋﾀﾞﾘ
)
PANEL (LEFT),POWER UNIT SIDE
1
19 2-694-415-01
POWER
ﾕﾆﾂﾄ
ﾃﾞﾝｹﾞﾝ
ﾄﾘﾂｹ
ﾌﾞﾗｹﾂﾄ
BRACKET, POWER FITTING
1
20 2-694-889-01
TCV
ｷﾔﾂﾌﾟ
(TCV-141)
CAP (TCV-141), TCV
34
TCV-141
21 2-915-967-01
ｴﾝﾄﾞ
ﾌﾟﾚ
-
ﾄ
(BNE30W)
PLATE (BNE30W), END
2
BNE30W, IDEC
22 4-701-543-01
ｱ
-
ｽ
ﾒｲﾊﾞﾝ
AMS-550
LABEL (AMS-550), GROUND
1
AMS-550
23 4-705-232-11
ｶｸｶﾞﾀ
3
ｺﾞｳ
ﾄﾂﾃ
(A165-4)
HANDLE 3, SQUARE (165-4)
2
A165-4
24 4-706-153-01
ｶ
-
ﾄﾞ
ｽﾍﾟ
-
ｻ
(KGLS-4S)
SPACER (KGLS-4S), CARD
4
KGLS-4S, MORIMIYA
25 4-706-486-01
ｷﾒｲﾊﾞﾝ
LABEL, MODEL NUMBER
1
26 4-707-937-11
ｺﾞﾑ
ｱｼ
(BU-4850 20
ｶﾞﾀ
)
FOOT, RUBBER (BU-4850 20 TYPE)
4
BU-4850 20 TYPE,
SATO PARTS
