3OM-1751 2-67 1303-001 2.9.3 "Mark Light" T ab Sheet [1] F3B66 [1] Mark (Back) and Mark (Front) Cam1 and Cam2 The brightness level for the reference mark lighting is set in these text boxes. 2.9 "Comp. Rec…
3OM-1751
2-661303-001

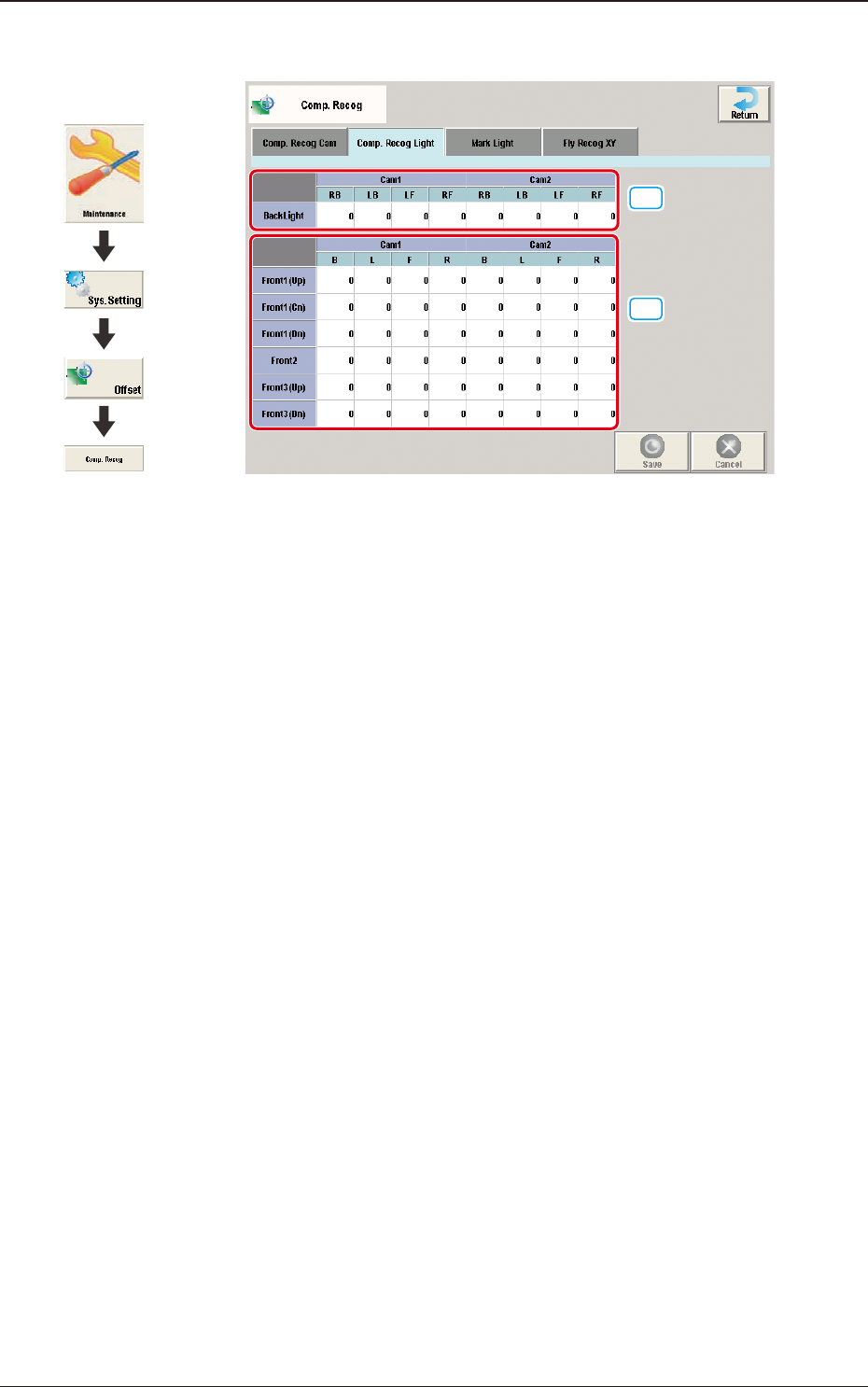

2.9.2 "Comp. Recog Light" Tab Sheet
[1]
[2]
F3B65
[1] Back Light
Set the light level for Comp. Recog Light.
[2] Front 1 (Up), (Cn), (Dn)
Front 2
Front 3 (Up), (Dn)
Set the light level for Comp. Recog Light.
2.9 "Comp. Recog" Window
Graphic
Development
3OM-1751
2-671303-001
2.9.3 "Mark Light" Tab Sheet
[1]
F3B66
[1] Mark (Back) and Mark (Front)
Cam1 and Cam2
The brightness level for the reference mark lighting is set in these text boxes.
2.9 "Comp. Recog" Window
Graphic
Development
3OM-1751
2-681303-001
2.9.4 "Fly Recog XY" Tab Sheet
[1]
F3B67
[1] Head 1, Head 2
X [mm], Y [mm]
Cam1 and Cam2
Obtain the deections (caused mainly due to the delay time of the servo
amplier and the strobe) of the images captured by the stopped component
recognition camera (still image capture) and the ying component
recognition camera (y image capture) and set the obtained values to adjust
the deviations in timing for image capture.
The set parameters are used to prevent a component from getting affected by
the delay and staying out of camera eld of view.
2.9 "Comp. Recog" Window
Graphic
Development
