第
2
章
操作顺序书
2-1.
治具列表
4

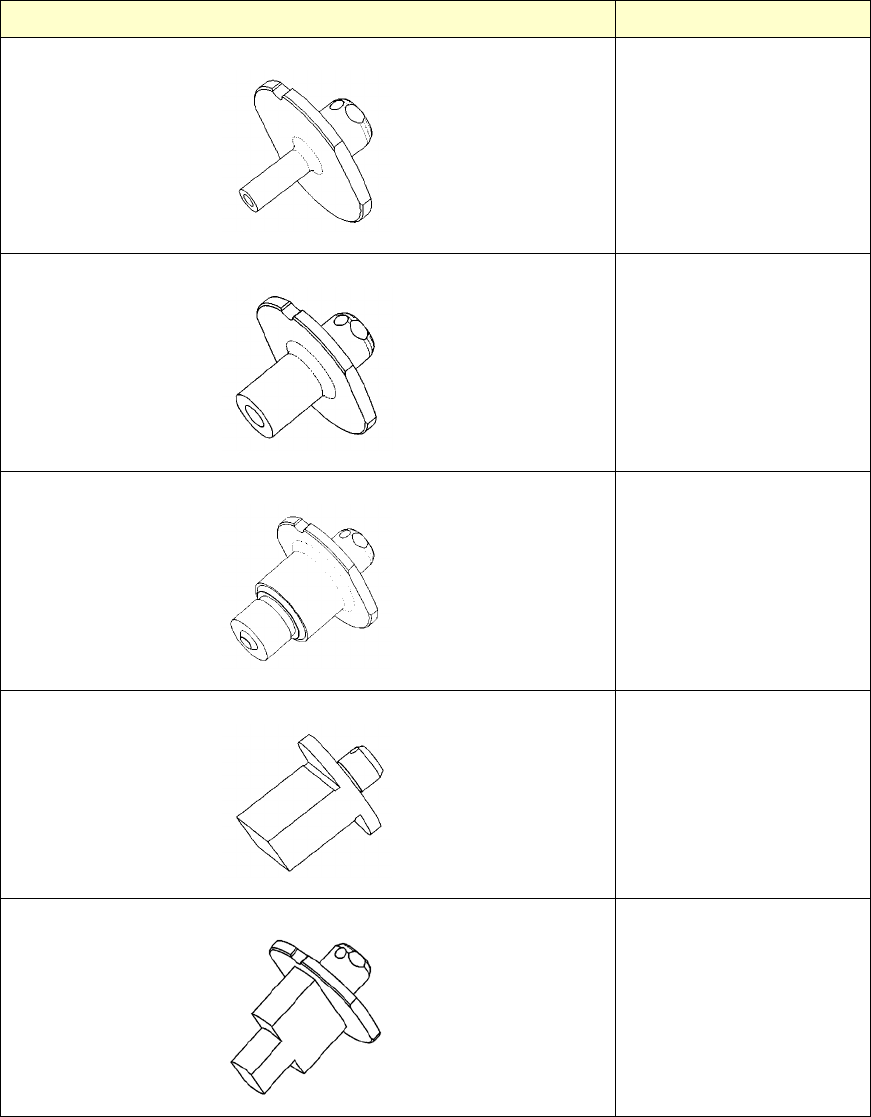

治具名称／图编号
用途
STANDARD, NOZZLE / EZ453431601 (1)
•
测定
Z
轴的原点
•
确定吸取检查摄像机的
像素率
•
确定贴装行程
GLASS CHIP PICK UP NOZZLE / EZ453432401 (1)
•
治具芯片的吸取
•
确认吸嘴有无传感器
NOZZLE, CAMERA CALIBRATION / EZ453431201 (20)
•
测量吸嘴尖端位置
JIG, AXIS R ORIGIN / EZ453432101 (1)
•
确定
RT
轴
/RN
轴原点
NOZZLE, HEIGHT CAM CLAIB / EZ453432301 (1)
•
确定吸取检查摄像机的
像素率
第
2
章
操作顺序书
2-1.
治具列表
5
治具名称／图编号
用途
ACCURACY CHECK KIT (S SIZE) / 40261069 (1 set)
Component parts
•
PC BOARD, MEASUREMENT GLASS / EZ267245902 (2)
•
TAPE, ADHESION / EZ445731701 (1)
•
GLASS BOARD RETAINER (S SIZE) / EZ453431001 (1)
•
GLASS BORAD CLAMP / 40258922 (2)
•
PIN (SPSPM-D3-L5) / EZ453505701 (4)
•
CASE CONFIRM KIT (S SIZE) / EZ453709101 (1)
•
BOLT,HEXAGON SOCKET 4 x 12 / EZ768342104 (2)
•
CLAMP NOB / 40166897 (2)
•
WASHER M4 / WP0430801SC (2)
•
测定贴装精度
WRENCH KIT, TORQUE / EZA1800938A (1 set)
Component parts
•
BIT (SB2.0) / EZ426504101 (1)
•
DRIVER SET (N6LTDK), TORQUE / EZ472277102 (1)
•
各部分螺丝的固定
TENSION METER, BELT (U-507) / EZ152054211 (1)
•
X
轴・传送装置皮带的
张力调整
第 2 章 操作顺序书
2-1. 治具列表
6
治具名称／图编号
用途
MEASUREMENT SET, PRESSUER / EZA2042049A (1 set)
Component parts
•
SENSOR DIGITAL PLESSURE (PG-100-102VP) /
EZ152053512 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
吸嘴上的真空压力测定
MEASUREMENT SET, MASS FLOW / EZA2042050A (1 set)
Component parts
•
REJUICER (KQ2R04-08A) / EZ444671511 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
UNION (KQ2H08-02AS), HALF / EZ444724821 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
测定喷气流量
•
流量计不含在内
METER KIT, FLOW RATE / EZA8417279A (1 set)
Component parts
•
POWER (PAC-D1) / EZ146860311 (1)
•
METER, FLOW RATE (SEF-400RC1/4) / EZ152053311 (1)
•
CORD, CONNECTION (SC-D4-S) / EZ175792111 (1)
•
测定喷气流量
