第 2 章 操作顺序书 2- 1. 治具列表 6 治具名称／图 编号 用途 MEASUR EMENT SET , PR ESSU ER / EZ A2 042049 A (1 set) Component parts • SENSOR DI GIT AL PLES SURE (PG - 100 - 10 2VP) / EZ 152053512 (1) • UNION (KQ2H0 4 - M5N), HALF / EZ 44470530…
第
2
章
操作顺序书
2-1.
治具列表

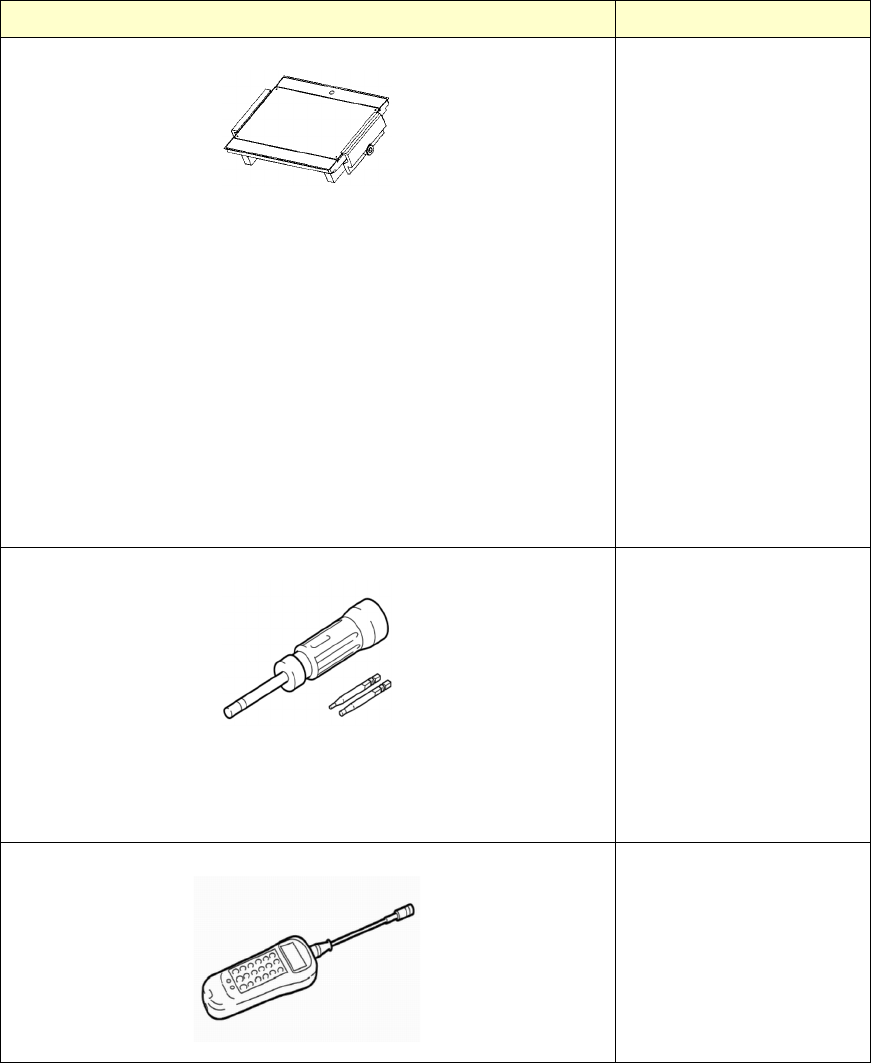

5
治具名称／图编号
用途
ACCURACY CHECK KIT (S SIZE) / 40261069 (1 set)
Component parts
•
PC BOARD, MEASUREMENT GLASS / EZ267245902 (2)
•
TAPE, ADHESION / EZ445731701 (1)
•
GLASS BOARD RETAINER (S SIZE) / EZ453431001 (1)
•
GLASS BORAD CLAMP / 40258922 (2)
•
PIN (SPSPM-D3-L5) / EZ453505701 (4)
•
CASE CONFIRM KIT (S SIZE) / EZ453709101 (1)
•
BOLT,HEXAGON SOCKET 4 x 12 / EZ768342104 (2)
•
CLAMP NOB / 40166897 (2)
•
WASHER M4 / WP0430801SC (2)
•
测定贴装精度
WRENCH KIT, TORQUE / EZA1800938A (1 set)
Component parts
•
BIT (SB2.0) / EZ426504101 (1)
•
DRIVER SET (N6LTDK), TORQUE / EZ472277102 (1)
•
各部分螺丝的固定
TENSION METER, BELT (U-507) / EZ152054211 (1)
•
X
轴・传送装置皮带的
张力调整
第 2 章 操作顺序书
2-1. 治具列表

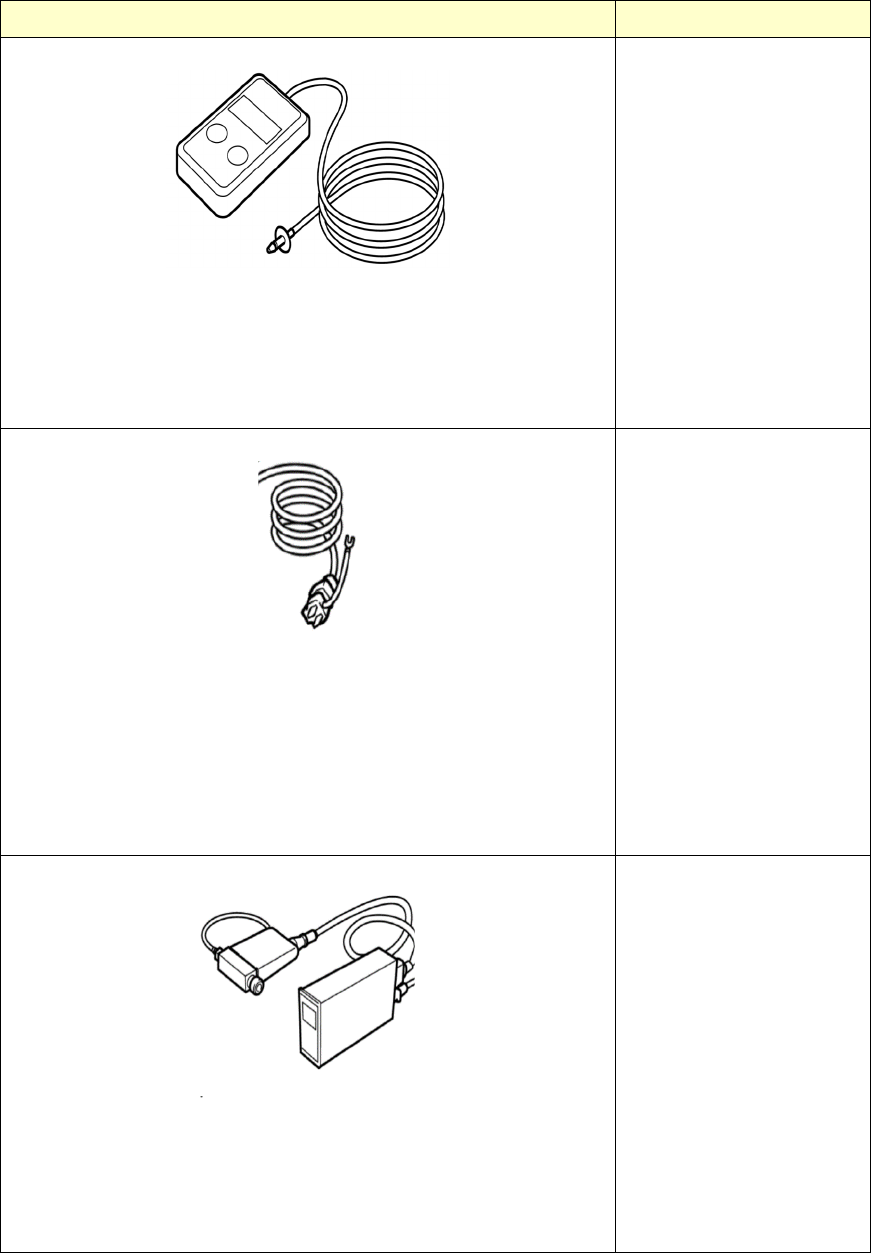

6
治具名称／图编号
用途
MEASUREMENT SET, PRESSUER / EZA2042049A (1 set)
Component parts
•
SENSOR DIGITAL PLESSURE (PG-100-102VP) /
EZ152053512 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
吸嘴上的真空压力测定
MEASUREMENT SET, MASS FLOW / EZA2042050A (1 set)
Component parts
•
REJUICER (KQ2R04-08A) / EZ444671511 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
UNION (KQ2H08-02AS), HALF / EZ444724821 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
测定喷气流量
•
流量计不含在内
METER KIT, FLOW RATE / EZA8417279A (1 set)
Component parts
•
POWER (PAC-D1) / EZ146860311 (1)
•
METER, FLOW RATE (SEF-400RC1/4) / EZ152053311 (1)
•
CORD, CONNECTION (SC-D4-S) / EZ175792111 (1)
•
测定喷气流量
第
2
章
操作顺序书
2-1.
治具列表
7
治具名称／图编号
用途
RTRN gear adjustment jig assembly / 40258980 (1 set)
Component parts
•
Gear adjustment jig base / 40241709 (1)
•
Rack (B)/ EZ327814901 (2)
•
Hexagon socket bolt M3 L=25 / SM6032502TN (2)
•
Hexagon socket bolt M2.5 L=6 / SM6850602TN (4)
•
RTRN
齿轮的调整
Nozzle shaft collar fixing jig / 40255578 (1 set)
Component parts
• Nozzle shaft jig_1 / 40242563 (1)
• Nozzle shaft jig_2 / 40242564 (1)
• Nozzle shaft jig_3 / 40242574 (1)
• Precision ball slide (BSP720SL) / 40242593 (1)
• Spring (DE577) /40242594 (1)
• Hexagon socket head cap bolt (M2X3 SUS) / EZ471872101
(8)
•
将吸嘴轴环安装到转塔
JIG, SET DRIVING GEAR / EZ453431501 (1)
•
将驱动齿轮装到电动机
上时用来决定安装位置
的垫铁
