FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 9 New MTU Adjustment Page 20 of 21
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 20 CS Section

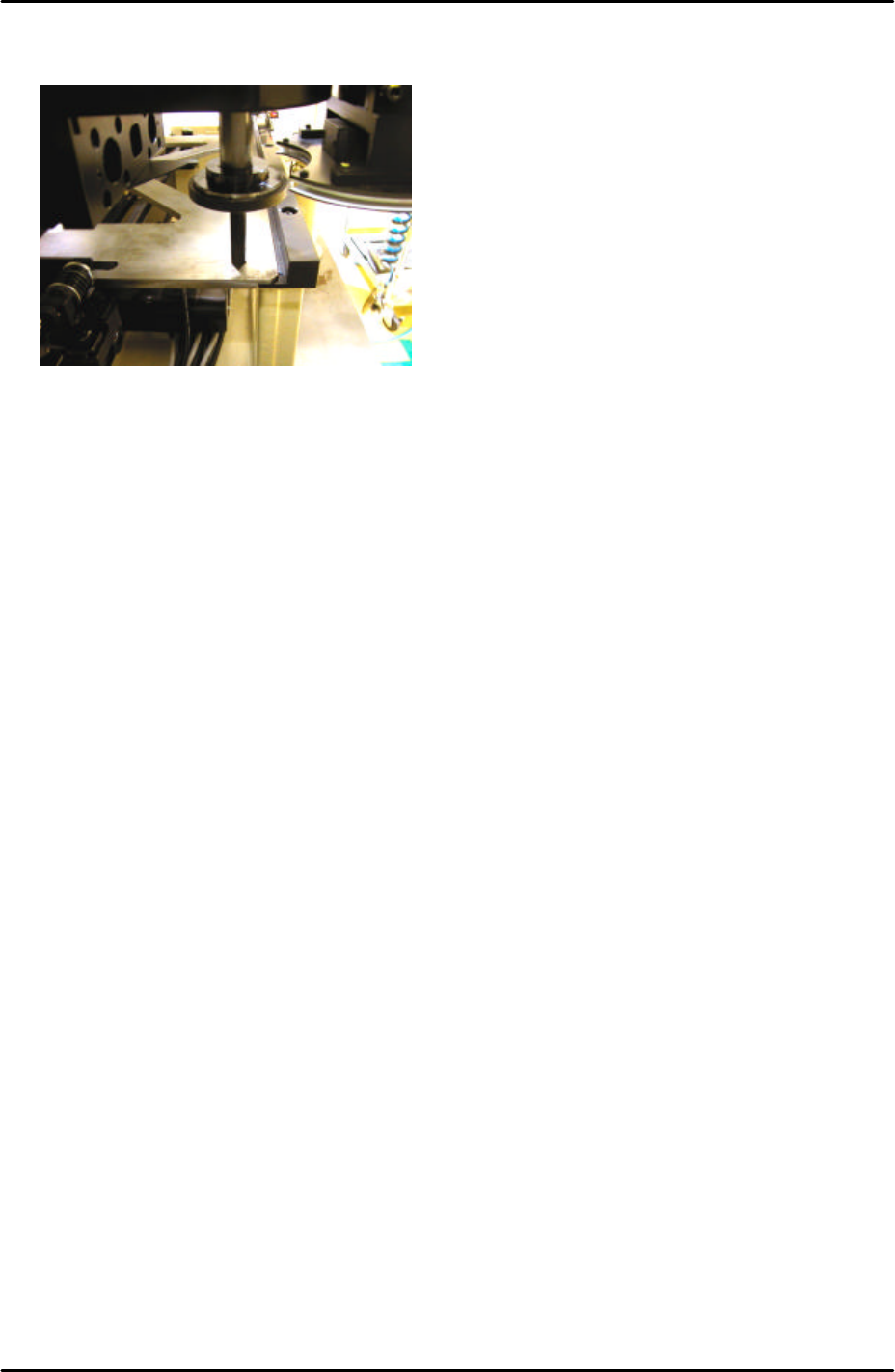

5. Manually move the X, Y and Z axes until the nozzle jig can slide smoothly into the tray
pick up position jig hole:
6. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] –
[X_stage2Org/Y_stage2Org] – [Direct Servo Input] to save the current X and Y-axes
positions in proper data.
7. To set the [Z_stage2surface] proper data remove the tray jig (Z9531DEPJ3522). Set a
standard tray pallet in slot [01,02] and select [Manual Operation] – [Tray Operation] –
[01,02] – [Move Elevator] to bring the tray pallet to the tray origin position.
8. Select [Shuttle Forward] to bring the tray pallet to the tray pickup position.
9. Replace the pickup position nozzle jig (Z9731DEPJ3650) with the standard nozzle jig
(Z9531DEPJ0070).
10. Bring the placing head over the tray pallet and then press the emergency stop button to
cut the 200V power supply to the servos.
11. Manually descend the Z-axis until the nozzle jig just contacts the surface of the tray
pallet.
12. Select [Maintenance C] – [Proper Data Editor] – [Machine Origin] – [Z_stage2surface] –
[Direct Servo Input] to save the current Z-axis position in proper data.
9.27 Returning proper data
1. Select [Maintenance C] – [Proper Data Editor] – [Operation] – [TrayDetectMotion] and
change from 0 to 2.
2. Select [OPERATION_2] – [JogInterlockOFF] and change from 1 to 0.
9.28 Re-tightening check
1. Carry out a re-tightening check for any bolts that were tightened during the adjustment.
FK-9F98-29 XP Series Training Text for Service Engineers
Edition 5.0 XP241 – Chapter 9 New MTU Adjustment Page 21 of 21
Fuji Machine Mfg. Co., Ltd. Okazaki
SMT Equipment Quality Assurance Dept.
9 – 21 CS Section
9.29 Final check
1. Confirm that bypass keys, jigs, wrenches, and other foreign objects do not remain in the
machine.
2. Remove the U-axis brake release jumper.
9.30 Backing Up
1. Back up the system files at [Maintenance B] – [Backup].
2. Back up the proper data at [Maintenance C] – [Proper Data].
