Note 2：Since a theta error may occur due to the shape of the surface of a 2012R
component to be picked (such as differences of manufactures and/or resistance
values), use a No. 504 nozzle if you have to place 2012R components in the high
density (the gap between the adjacent components: 0.3 mm or less).
Note 3 : To place a 0603 component on a board, a No. 501 nozzle, a dedicated tape
feeder and a HMS are required. (A HMS is supplied with JX-100LED without any
extra charge.)
4.4 Applicable Component
4.4.1 Applicable component sizes
(1) Component size
Unit: mm
Recognition device Applicable component size
Length × Width
Minimum length: 0.6 × 0.3 (see Note 1)
Maximum length : 33.5
(see Note 2)
Square component : □ 33.5
(see Note 2)
Component height
LNC60 laser
recognition device
0.09 to 12.0 (see Note 3)
Note 1: HMS (option for JX-100) is required when the 0603 component is placed.
Moreover, it is sequentially picked up.
Note 2: The maximum size of components that can be recognized with 6 nozzles of the LNC60 at
the same time is □ 10.0 mm. When you are to place components whose size is more
than □ 10.0 mm with the LNC60 head, only three heads are used to pick them up.
Note 3: The minimum component height varies depending on component size. To be exact,
the component height depending on the window width is set, the smaller the diagonal
width of component, the smaller the value of the minimum component height. To
cite JX-100 LED, if the board dimension in X direction is 630 to 680 mm, the
maximum component height is 9.0 mm.
4.5 Component Placement Accuracy at X, Y and θ
* The placement accuracy is achieved when the PWB mark is used.
Placed positions (X, Y)
Unit: μm
Component type
Placement accuracy (±3σ)
Square chip（0603 or more）
± 50
Square chip LED (3216）
± 50
MELF
± 100
SOT
± 150
Placed posture (θ)
Unit: °
Component type
Angle
Square chip of 0603
± 3.0
Square chip of 1005
± 2.5
Square chip of 1608 or more
± 2.0
Square chip of 3216 LED
± 3.0
MELF
± 3.0
SOT
± 3.0
8
9
4.6 Applicable PWBs
4.6.1 PWBs transport direction
Left to Right, Right to Left/ U-turn type conveyor
(The conveyor type can be switched between "Straight" and "U-turn".)
Rightward flow (carrying from left to right, looking from the front side)
Leftward flow (carrying from right to left, looking from the front side)
Note
：
Corresponding to a time of shipments from the factory.
4.6.2 PWB sizes and Mass
Machine type
Minimum size
(L
1
x W
1
)
(see Note 1)
Maximum size
(L
2
x W
2
)
(see Note 1)
Thickness T Weight (Mass)
JX-100 50×50mm 330×250mm 0.4 to 2.0mm 1,000 g or less
JX-100 LED 50×50mm
410 (see Note 2)
×360mm
0.4 to 2.0mm 2,000 g or less
Note 1: L represents the size in the board feed direction and L represents the right-angle
direction. W/L should be 2 or less.
Note 2: PWB size can be supported up to 800 mm by split clamping.
4.6.3 Allowable value of board warp
The allowable board warp is 0.2 mm or less per 50 mm, and 1 mm or less for both upper
warp and lower warp (conforming to JIS B 8461)
4.6.4 Limitations on PWBs
(1) A range not available to place the components)

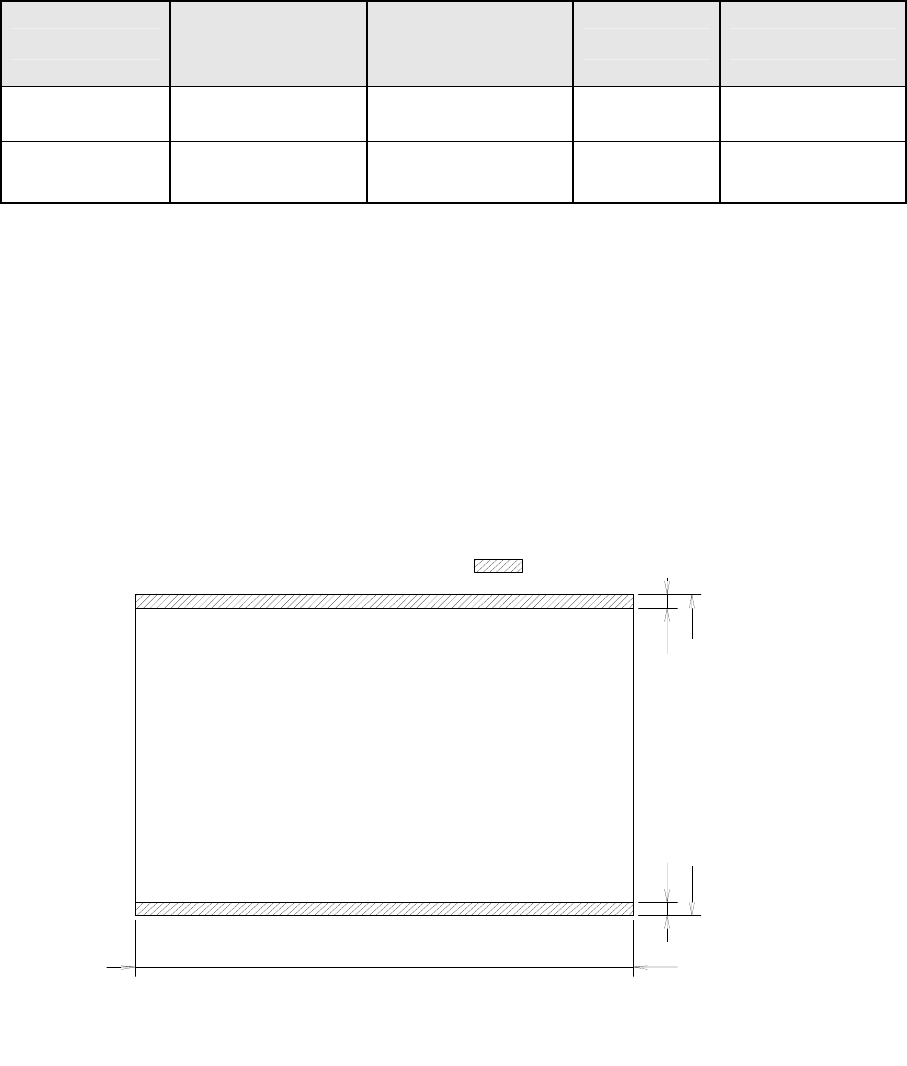

Figure 1 Placement disable range of the top surface of PWB
は搭載不可範囲
3
m
m
3 mm
50～250mm
50～330mm
JX-100 50 to 330 mm
JX-100 LED 50 to 410 (800) mm
JX-100 LED 50 to 360 mm
JX-100 50 to 250 mm
Placement disables range
10
(2) A range not available to set up the support pins
JX-100
はサポートピン設置不可範囲
5
0
～
2
5
0
m
m
50～330mm
3
2
m
m
60mm
10mm 基板サイズ320mm以上の時　10mm
4
m
m
4
m
m
8
～
1
0
5
m
m
基板幅による位置調整範囲
Figure 2 Bottom surface view of PWB
JX-100 LED
Figure 3 Bottom surface view of PWB – Board size in X direction : 410 mm or less
: Support pin setup disable
Position adjustment
range by board width
10 mm for a board size of 320 mm or more
0～200mm
50mm
95mm
Direction
はサポートピン設置不可範囲
5
0
～
3
6
0
m
m
50～410mm
5
0
m
m
95mm
40mm 基板サイズ370mm以上の時　40mm
4
m
m
4
m
m
0
～
9
5
m
m
基板幅による位置調整範囲
基板搬送方向
Direction
: Support pin setup disable
40 mm for a board size of 370 mm or more
Position adjustment
range by board width
