5 4. SPECIFICATIONS 4.1 Mechanical/Electrical Specifications JX-100 V oltage 3-phase, 200V/ 220V/240V/380V/400V/ 415V AC (see Note 1 ) Frequency 50/60 Hz Power supply Rated apparent power 1.5 kV A Compressor supply air p…

3.2 JX-100 LED System Configuration

JX-100 LED

Signal light with buzzer

The device or function enclosed with dotted

line is an option.

*1: The option marked (*1) is delivered at construction work.

*2: Type 1 or type 2 is available for the rear as an option.

*3: In the USA, China, and Singapore, the air compressor

must be procured locally because the export of this item

is prohibited.

Power supply unit

CPU board

I/O control unit

Cabinet

Liquid crystal display

Keyboard

Mouse

USB port

Touch panel

SSD

Caster (*1)

Emergency stop button

Leakage breaker (*1)

DVD/CD-ROM drive

(USB connection)

Motor control unit

FDD (USB connection)

HOD

Head unit

Laser recognition head (LNC60)

Outline reference

Placement station

Automatic Tool Changer (ATC)

Feeder bank Front fixing bank

X-Y positioning unit

100 BASE/10 BASE T

Ethernet port

Rear fixing bank (*1)

Trash box

Feeder float detecting function, Front

Pneumatic piping system

Tray holder (*2)

Vacuum pump (*1)

Main line filter

Air compressor Assembly (*3)

Extension guide of the conveyor (100mm)

(*1)

Offset correction camera (OCC)

Height Measurement System (HMS)

(

)

Lighting unit of solder

recognition

Quick connect coupling

Feeder float detecting function, Rear(*1)

Bulk feeder, Tape feeder, Stick feeder

External Programming Unit(EPU)

4. SPECIFICATIONS

4.1 Mechanical/Electrical Specifications

JX-100

Voltage 3-phase, 200V/220V/240V/380V/400V/415V AC (see Note 1)

Frequency 50/60 Hz

Power supply

Rated apparent power 1.5 kVA

Compressor supply

air pressure

0.6MPa to 0.9Mpa, Dry air (see Note 2)

Air pressure 0.5±0.05 Mpa Dry air (see Note 2)

345L/min（ANR）, (see Note 3）

Air supply

Maximum air

consumption

50 L/min (ANR)

See Note 3 when the vacuum pump (option) is used

During operation

Ambient temperature +5ºC to +35ºC (Accuracy guaranty temperature: +20 to +25ºC)

Humidity 50 % RH or less (35ºC)

During transportation or storage

Temperature -15ºC to +70 ºC

Environment

requirements

Humidity 20％ to 95％ (No condensation)

Noise 75 dB (A) or less (see Note 4)

Installation place

Install this machine on a flat floor having a sufficient strength, such as

reinforced concrete floor.

Do not install this machine on a floor where the machine vibrates

during operation or on a wooden floor.

Particle dust

Do not install this machine in a place where a large amount of dust or

dirt exists.

Do not install this machine in a place close to a unit that produces the

high-frequency wave.

Power shut-down

Before turning OFF the main power, stop the machine and shut down

the system completely.

Additionally, if the main power is turned OFF while the SSD access

lamp is lit, this may cause the machine to malfunction. Do not turn

OFF the main power while the production is being carried out or an

axis is moving.

Note 1: An appropriate cross-sectional area of the primary power cable may vary depending on the

cable routing conditions, length, and/or power voltage. Always use an appropriate cable

meeting the standards for the installation place from those stated in the Table below.

Primary power cable

Power supply

Less than 20 m Less than 30 m Less than 40 m Less than 50 m

200V/220V/240V AC 5.5 mm

or more 5.5 mm

or more 8.0 mm

or more 10.0 mm

or more

380V/400V/415V AC 3.5 mm

or more 5.5 mm

or more 6.0 mm

or more

Note 2: Dry air: Always use an appropriate air dryer or mist separator. As for references, blow the

air to the metallic plate or other object at the compressor supply port to make sure that any

water droplets are not sticking to it.

Note 3: ANR: Temperature 20ºC, absolute pressure 0.1MPa (=100kPa =1 bar), and relative

humidity 65%

Note 4: Conforming to JIS Z 8731.

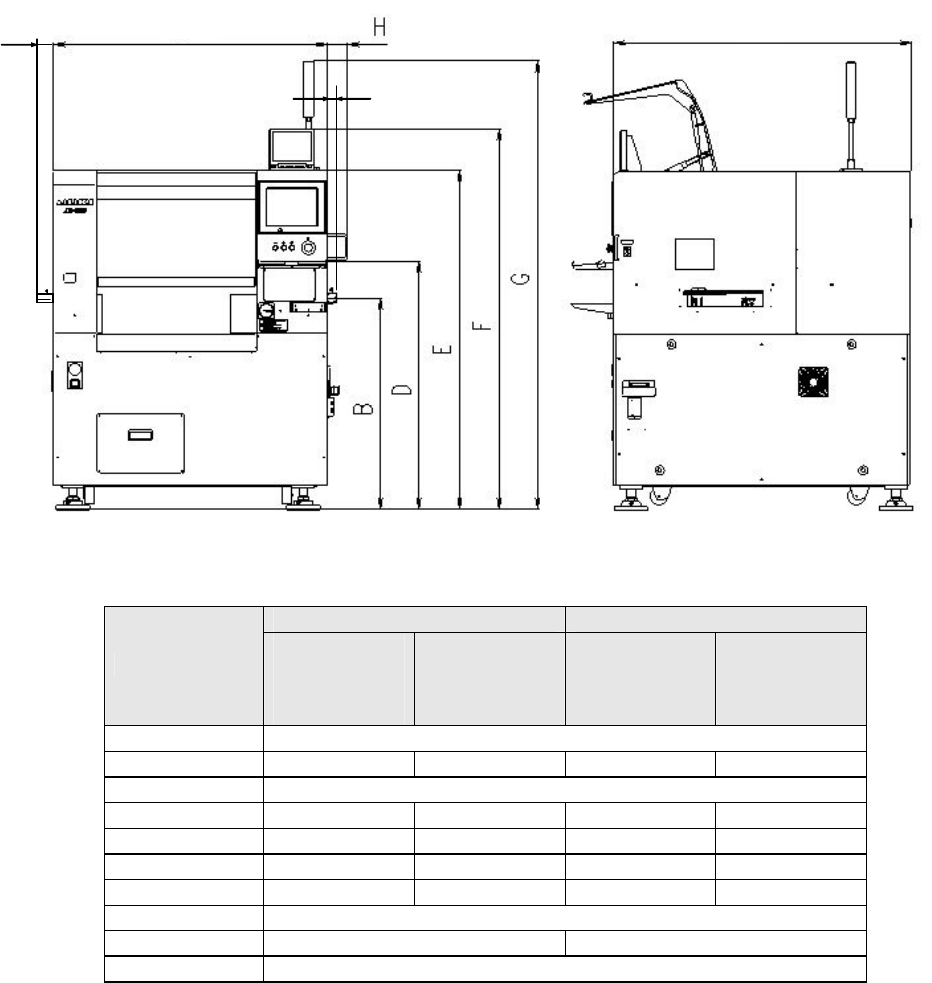

4.1.1 Machine dimensions

(mm)

JX-100 JX-100 LED

Dimensions

Board

transport

height

900mm

Board

transport

height

950mm

Board

transport

height

900mm

Board

transport

height

950mm

A 1170

B 900 950 900 950

C 1270

D 1060 1110 1060 1110

E 1440 1490 1440 1490

F 1620 1670 1620 1670

G 1910 1960 1910 1960

H 65

J 125(EN:130) 145(EN:150)

K 75(EN:80)

4.1.2 Mass

JX-100, JX-100 LED :1,000kg
