INFINITY
EX
CAMERA SYSTEM MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 3 Jan 04 Technical Reference Manual 17.25
4. Use the screw holes visible on top of the camera Y axis linear bearing
supports as a reference. Align the vernier on the fourth hole from the front
edge on both supports and record the dimension. Repeat the measurement
using the eighth hole from the front edge. Compare the readings, ensure the
bearings are parallel to within ±0.05mm.
5. If adjustment is required, carry out the following:
NOTE
Machine panels may have to be removed to carry out the following proce-
dures.

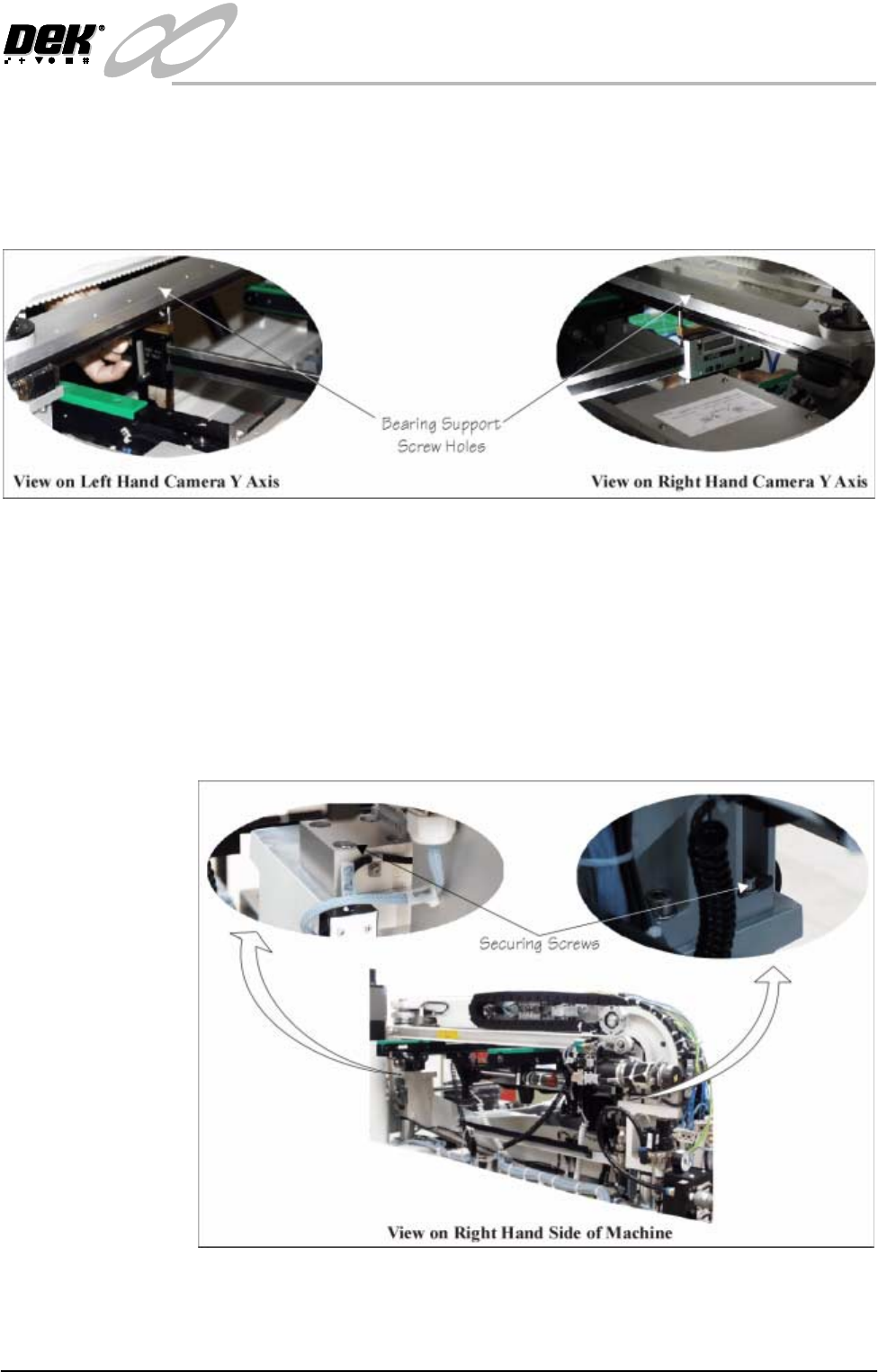

a. Loosen the right hand camera Y rail support securing screws (4 each end),
(see figure below).
b. Adjust the rails as necessary to achieve rail parallelism.
c. Tighten the rail support screws and recheck the rail parallelism, (refit any
removed panels on completion).
6. When adjustment is complete, power up the machine, remove the head prop
and lower the printhead.
7. If adjustment has been necessary carry out the following:
INFINITY
EX
CAMERA SYSTEM MODULE
ADJUSTMENTS AND SETTINGS
17.26 Technical Reference Manual Chapter Issue 3 Jan 04
a. Home Camera X Axis and Y axis.
b. Camera Reference Position.
c. Calibrate Vision.
Board at Stop Sensor
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN
WORKING IN THE TOOLING AREA OF THE MACHINE TO AVOID
INJURY. THE FOILS ON THE FRONT AND REAR BOARD CLAMPS
ARE VERY SHARP.
The sensitivity should be adjusted to see a board on the rails at transport height.
The distance between the top of the board and the top of the tooling can change,
due to different board thicknesses, even if the same underside clearance param-
eter is used. The optimum adjustment is achieved using the thinnest board, down
to a minimum of 0.4 mm thick. If the sensor is adjusted and later a thinner board
is used in the machine, it is possible that the decreased distance between the
sensor and the tooling may cause the sensor to be activated while no board is
present, due to tooling be positioned directly below the sensor. If a 0.6 mm board
is not available, extra care should be taken to ensure that the sensor is detecting
only the top of the board used.
1. In Diagnostics select Camera Axes module.
2. Select Home Camera X Axis. Select Home Camera Y Axis.
3. Select Exit. Select Rail System diagnostics.
4. Ensure the rail width is set to the width of the board using Drive Rail to
Board Width (if the board being used for the adjustment is not in the current
product file, adjust the rail width using Drive Rail Width Using Two Button
Control).
5. Select Exit. Select Camera Axes diagnostics.
6. Select Drive to Board Stop Position. Select Exit.
7. Select Print Head diagnostics. Select Raise Head Under 2 Button Control
and fit the head prop.
8. Position the test board (a 0.6 mm board if available) on the rails below the
sensor.
INFINITY
EX
CAMERA SYSTEM MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 3 Jan 04 Technical Reference Manual 17.27
9. If the red LED on the sensor is illuminated, turn the sensitivity/focal length
adjustment anti-clockwise using a plastic trimmer tool until the LED extin-
guishes (or the LED is flickering).
10.Turn the sensitivity/focal length adjustment very slowly in a clockwise
direction until the instant the LED is fully illuminated (the LED may flicker
before fully illuminating).
11.Turn the control in a clockwise direction approximately 10 to 20 degrees
beyond the point at which the LED illuminated.
NOTE
Turning the control more than 10 to 20 degrees beyond the point at which
the LED first illuminated may cause the sensor to detect the tooling whilst
printing using thin boards.
12.Remove the test board from the machine. Remove the head prop and lower
the printhead.
13.Select the System button. Exit from diagnostics, the machine initializes.

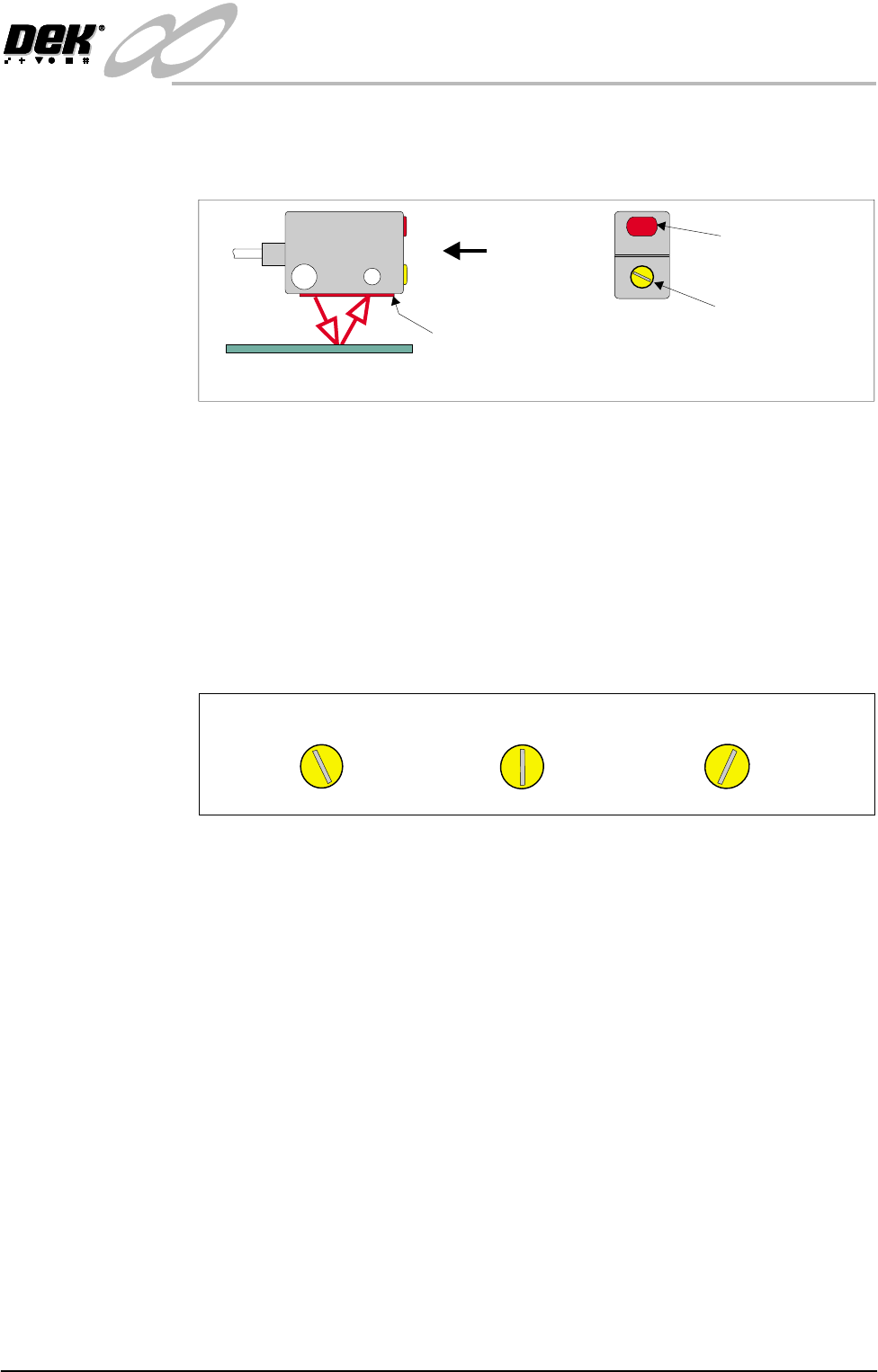

View on Arrow A
Sensitivity/Focal
Length Adjustment
Red LED
(Target Detected)
Background Suppressed Opto
Emitter/Receiver
A
NOTE
The final set position can be at any angle.
Final Set Position
LED IlluminatedLED Not Illuminated
