INFINITY EX CAME RA SYSTE M MODULE ELECTRIC AL SCHE MATIC Chapter Issue 3 J an 04 Technical Reference Manual 17.3 ELECTRICAL SCHEM A TIC Gr een Camera Y Camer a Motor Encoder Servo Motor Encoder Servo Motor X Camer a Mot…
INFINITY
EX
CAMERA SYSTEM MODULE
MODULE OVERVIEW
17.2 Technical Reference Manual Chapter Issue 3 Jan 04
is home (raised) the LED is on as the beam is broken by the vane.
Figure 17-1 Camera and Vision System Overview
View on Arrow A
Green Camera
Gold Camera
Optical Unit
GreenCamera
Gold Cameras & Optical Unit
BoardStop
BoardStopIn
Sensor
Main Y Axis Timing Belts
X Axis Timing Belt
Camera X Motor
Camera Carriage
Camera Assembly
Y Transfer
Timing Belts
Camera Y Motor
Y Motor Timing Belt
A
INFINITY
EX
CAMERA SYSTEM MODULE
ELECTRICAL SCHEMATIC
Chapter Issue 3 Jan 04 Technical Reference Manual 17.3

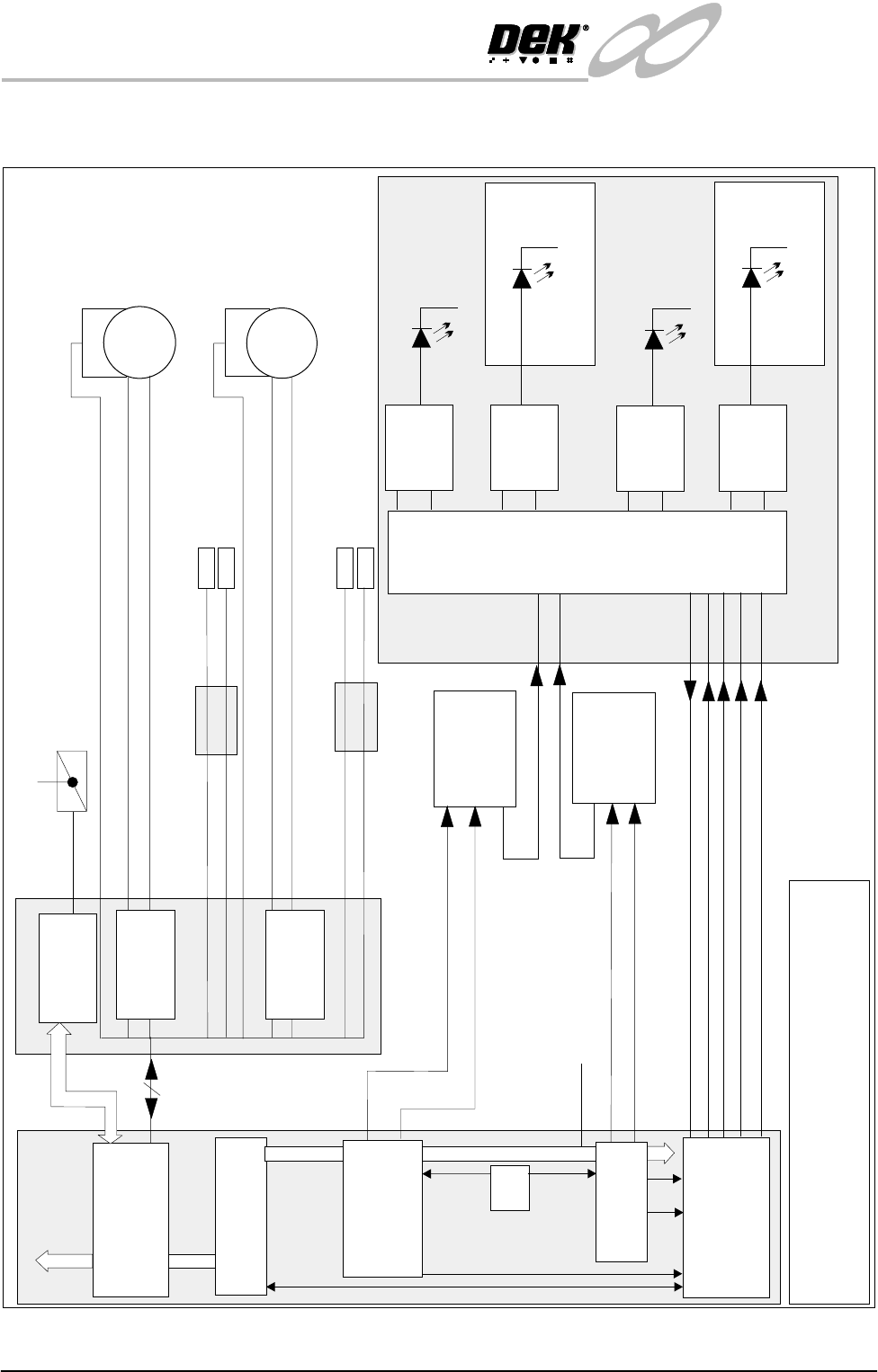

ELECTRICAL SCHEMATIC
Green Camera
Y Camera Motor
Encoder
Servo
Motor
Encoder
Servo
Motor
X Camera Motor
+
_
+
_
SOURCE 4
Board Stop
Manual Operation
Optical Unit
Video
+12V
Camera
Video
Screen Direct
LEDs
24V
Constant
Current
Generator
Board Direct
LEDs
24V
Constant
Current
Generator
Constant
Current
Generator
Constant
Current
Generator
Screen Oblique LEDs
24V
Upper Lighting Board
Board Oblique LEDs
24V
Lower Lighting Board
Strobe
RX
0V
TX
24V U/S
Processor
NOTE
The CAN Bus forms part of the 100 way connection
between the Machine PC and Controller enclosures
100 Way
RS232
Strobe
Trig
NextMove
Processor
Cognex
I
S
A
B
u
s
P
C
I
B
u
s
+12V
PSU
Vision PC
Adaptor
Machine PC
Breakout
Board A
X Home Sensor
Y Home Sensor
DIG IN 15
DIG IN 5
MultiMove1
X13
Servo Drive
X8
Servo Drive
X10
Board Stop In (Up)
Board At Stop
DIG IN 23
DIG IN 22
Breakout
Board B
Machine Controller
CAN Bus
+24V (US)
