B1-1 主電源配線図 (AC) Main power supply wiring diagram (AC) B-1
A25
その他
消耗品
Other supplies
クリーニングユニット
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ4-456-232-01
ﾛ-ﾙ ﾍﾟ-ﾊﾟ-
(270MM)
PAPER (270MM), ROLL
1
2 EZ4-456-231-01
ﾛ-ﾙ ﾍﾟ-ﾊﾟ-
(520MM)
PAPER (520MM), ROLL
1
3 EZ4-456-230-01
ｼｶﾝ
(W530)
CORE (W530), PAPER
1
4 EZ2-668-887-21
ﾌｲﾙﾀ- ﾄﾚﾐｸﾛﾝ
(105X50)
FILTER (105X50)
1
はんだ供給ユニット
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
0 EZA-1773-119-A
ｸﾘ-ﾅ-
KIT (850)
CLEANER KIT (850)
1
1 EZ4-185-299-01
ｸﾘ-ﾅ- ｼﾔﾌﾄ
SHAFT, CLEANER
1
2 EZ4-185-300-01
ﾛ-ﾚﾂﾄ ﾂﾏﾐ
(A-1040-11)
KNOB (A-1040-11), KNURL
1
3 EZ4-185-301-01
ｼﾝｸｳ ﾊﾟﾂﾄﾞ
(VSPG-6RS)
PAD (VSPG-6RS), VACUUM
3
0 EZA-1923-238-A
ﾋﾟｽﾄﾝ ｷﾂﾄ
GROUP
PISTON KIT GROUP
1
4 EZ4-455-416-01
ｼﾘﾝﾀﾞ
CYLINDER
1
5 EZ4-455-417-01
ﾊﾟﾂｷﾝ ﾌﾟﾚ-ﾄ
PLATE, PACKING
1
6 EZ4-455-418-01
ﾅﾂﾄ
NUT
1
基板反りサポート
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1923-264-A
ｷﾕｳﾁﾔｸ ﾋﾟﾝ
(
ﾌｱｲ
3.5) GROUP
PIN(DIA. 3.5) GROUP,ABSORPTION
1
2 EZA-1923-265-A
ｷﾕｳﾁﾔｸ ﾋﾟﾝ
(
ﾌｱｲ
6) GROUP
PIN (DIA. 6) GROUP, ABSORPTION
1
3 EZA-1923-266-A
ｻﾎﾟ-ﾄ ﾋﾟﾝ
(
ﾌｱｲ
2) GROUP
PIN (DIA. 2) GROUP, SUPPORT
1
4 EZA-1923-267-A
ｻﾎﾟ-ﾄ ﾌﾞﾛﾂｸ
(100MM) GROUP
BLOCK (100MM) GROUP, SUPPORT
1
5 EZA-1923-268-A
ｻﾎﾟ-ﾄ ﾌﾞﾛﾂｸ
(50MM) GROUP
BLOCK (50MM) GROUP, SUPPORT
1
6 EZA-1929-939-A
ﾏﾆﾎ-ﾙﾄﾞ ﾌﾞﾛﾂｸ
GROUP
BLOCK GROUP, MANIFOLD
1
7 EZA-1937-539-A
ﾊﾞﾂｸｱﾂﾌﾟ ｼﾞｸﾞ
(M
ｾﾂﾄ
)
TOOL (M SET), BACK UP
1
8 EZA-1937-540-A
ﾊﾞﾂｸｱﾂﾌﾟ ｼﾞｸﾞ
(L
ｾﾂﾄ
)
TOOL (L SET), BACK UP
1
A-89
B1-1

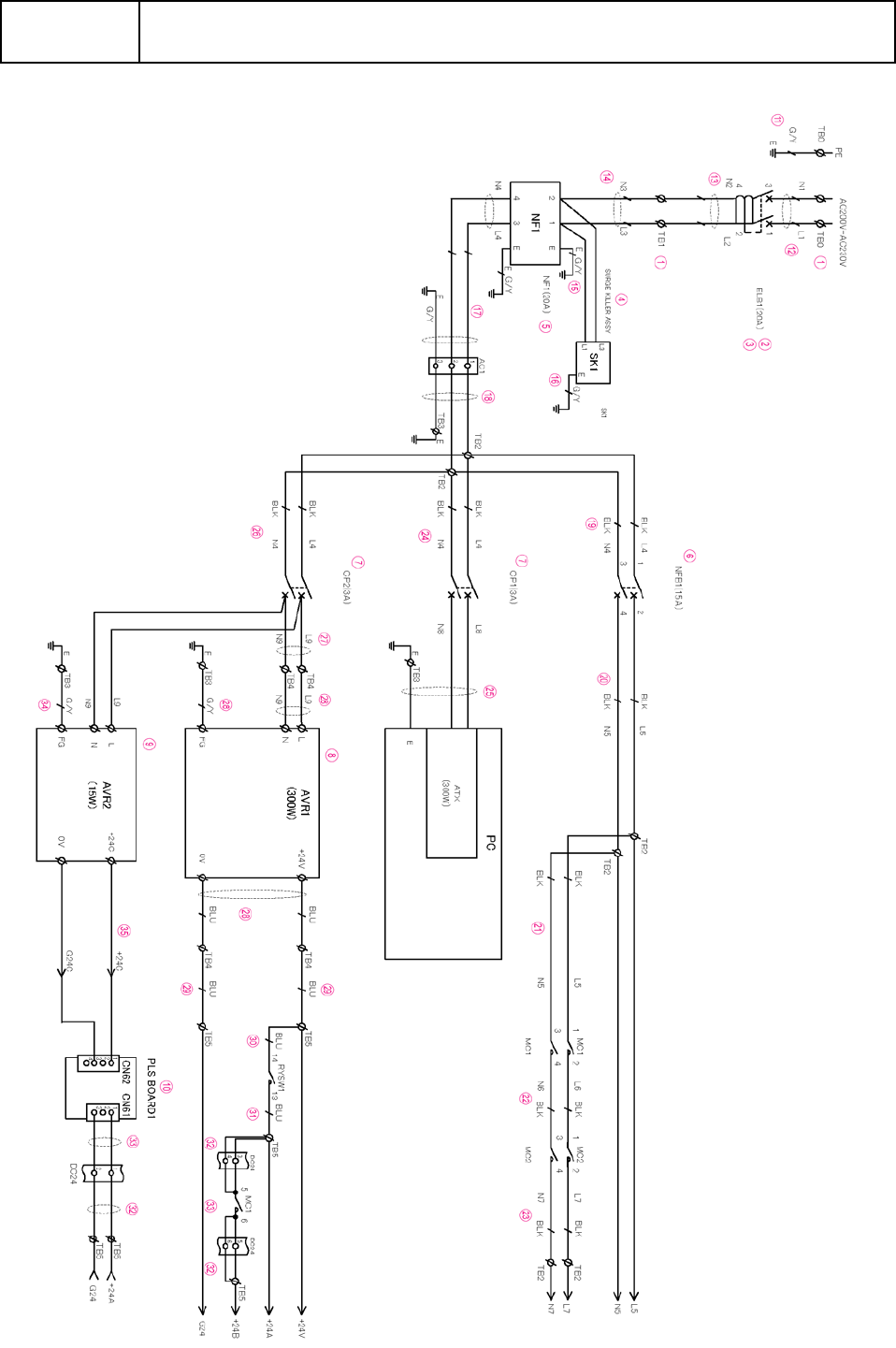

主電源配線図
(AC)
Main power supply wiring diagram (AC)
B-1
B1-1
主電源配線図
(AC)
Main power supply wiring diagram (AC)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-780-827-11
ﾀﾝｼﾀﾞｲ
(BTBH30C2)
TERMINAL BOARD (BTBH30C2)
1
2 EZ1-523-159-11
ﾛｳﾃﾞﾝ ﾌﾞﾚ-ｶ
(EW32AAG-3P020B)
BREAKER (EW32AAG-3P020B)
2
3 EZ4-187-223-01
ｶﾞｲﾌﾞ ｿｳｻ ﾊﾝﾄﾞﾙ
(BZ6V10D)
HANDLE (BZ6V10D),OUTER
CONTROL
1
4 EZ1-492-019-12
ｻ-ｼﾞ ｷﾗ-
ASSY
SURGE KILLER ASSY
1
5 EZ1-200-170-11
ﾉｲｽﾞ ﾌｲﾙﾀ
(HF2020A-UP)
FILTER, NOISE (HF2020A-UP)
4
6 EZ1-576-952-11
ﾉ- ﾋﾕ-ｽﾞ ｼﾔﾀﾞﾝｷ
(NF30-FAU2P*)
BREAKER (NF30-FAU2P 15A CE)
3
7 EZ1-576-959-12
ｻ-ｷﾂﾄ ﾌﾟﾛﾃｸﾀ-
(CP32FM/3)
PROTECTOR, CIRCUIT (CP32FM/3)
1
8 EZ1-474-493-11
ｽｲﾂﾁﾝｸﾞ ﾚｷﾞﾕﾚ-ﾀ
(PLA300F-24)
REGULATOR, SWITCHING
1
9 EZ1-474-490-11
ﾊﾟﾜ- ｻﾌﾟﾗｲ
(PS5R-SB24)
SUPPLY, POWER (PS5R-SB24)
1
10 EZA-1923-199-A
PLS COMPL
PLS COMPL
1
11 EZ1-968-960-11
ﾊ-ﾈｽ
(
ｱ-ｽ
PE)
HARNESS
1
12 EZ1-968-954-12
ﾊ-ﾈｽ
(AC1)
HARNESS
1
13 EZ1-968-954-22
ﾊ-ﾈｽ
(AC2)
HARNESS
1
14 EZ1-968-955-12
ﾊ-ﾈｽ
(AC3)
HARNESS
1
15 EZ1-968-960-21
ﾊ-ﾈｽ
(
ｱ-ｽ
NF1-1)
HARNESS
1
16 EZ1-968-960-31
ﾊ-ﾈｽ
(
ｱ-ｽ
NF1-2)
HARNESS
1
17 EZ1-968-956-12
ﾊ-ﾈｽ
(AC4)
HARNESS
1
18 EZ1-968-879-12
ﾊ-ﾈｽ
(AC13)
HARNESS
1
19 EZ1-968-875-11
ﾊ-ﾈｽ
(AC5)
HARNESS
1
20 EZ1-968-875-21
ﾊ-ﾈｽ
(AC6)
HARNESS
1
21 EZ1-968-876-31
ﾊ-ﾈｽ
(AC9)
HARNESS
1
22 EZ1-968-877-11
ﾊ-ﾈｽ
(AC10)
HARNESS
1
23 EZ1-968-876-41
ﾊ-ﾈｽ
(AC11)
HARNESS
1
24 EZ1-968-876-11
ﾊ-ﾈｽ
(AC7)
HARNESS
1
25 EZ1-968-871-14
ﾊ-ﾈｽ
(PC
ﾃﾞﾝｹﾞﾝ
)
HARNESS
1
26 EZ1-968-876-21
ﾊ-ﾈｽ
(AC8)
HARNESS
1
27 EZ1-968-878-13
ﾊ-ﾈｽ
(AC12)
HARNESS
1
28 EZ1-968-915-11
ﾊ-ﾈｽ
(DC1)
HARNESS
1
29 EZ1-968-906-11
ﾊ-ﾈｽ
(DC3)
HARNESS
1
B-2
