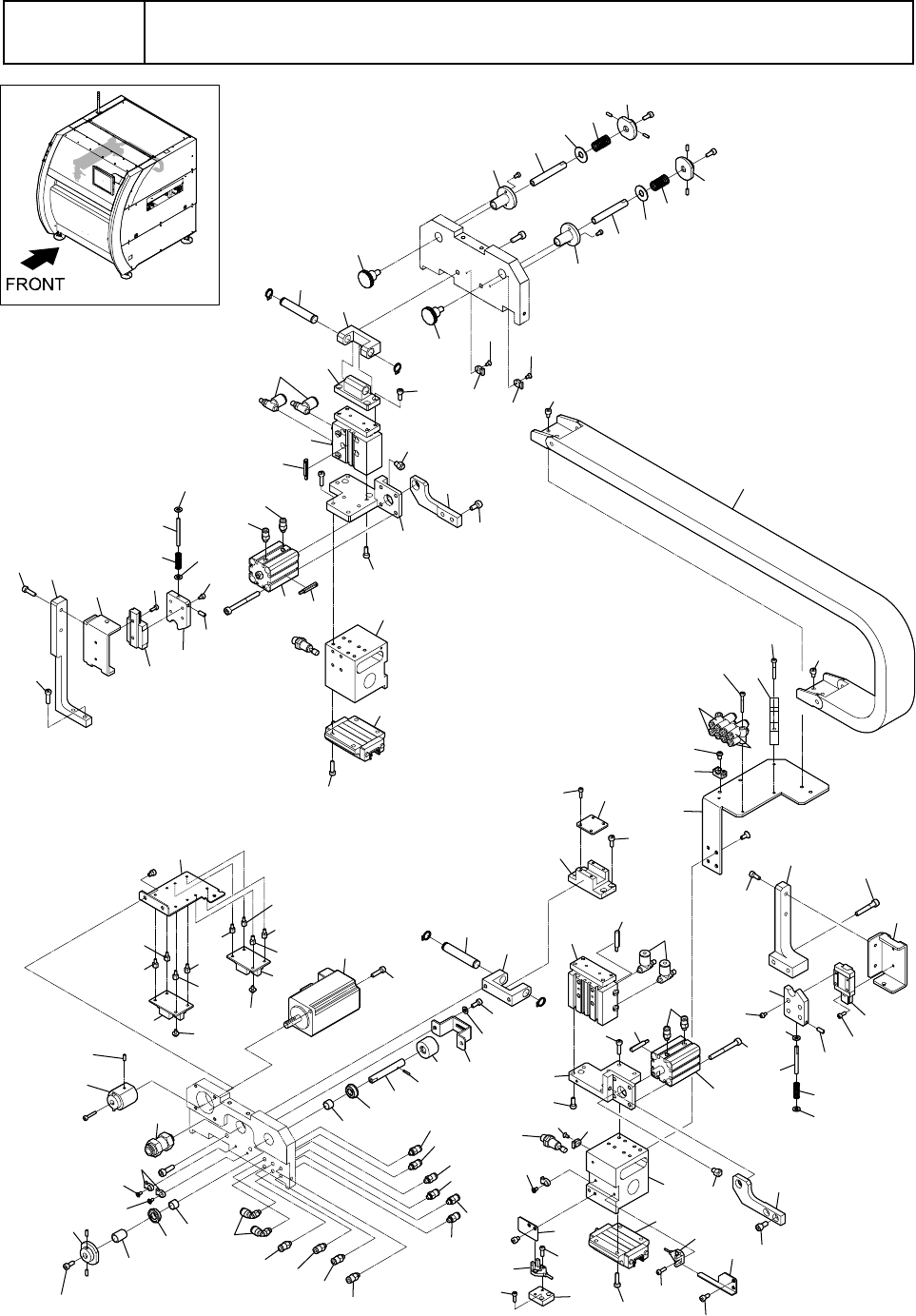

A 21 クリーニングユニット ( オプション ) Cleaning unit (option) 1 1 1 1 59 59 12 18 72 72 12 13 14 13 14 15 15 23 19 24 23 26 35 10 17 39 40 37 3 16 16 67 67 16 1 1 16 16 16 75 16 16 33 30 31 32 6 48 58 54 5 9 79 29 27 27 25 25 60 65 6…
A21
クリーニングユニット
(
オプション
)
Cleaning unit (option)
11
11
59
59
12
18
72
72
12
13
14
13
14
15
15
23
19
24
23
26
35
10
17
39
40
37
3
16
16
67
67
16
1
1
16
16
16
75
16
16
33
30
31
32
6
48
58
54
5
9
79
29
27
27
25
25
60
65
66
66
21
63
64
22
25
28
36
61
38
41
42
54
43
45
46
47
9
44
52
55
2
56
56
55
42
43
44
45
49
8
49
51
52
53
62
62
58
4
62
62
62
62
62
62
62
62
62
62
62
58
64
57
7
66
59
66
66
68
79
79
68
69
69
77
70
70
70
70
71
71
20
20
73
74
79
74
74
74
61
74
59
34
74
74
58
74
76
76
78
79
57
66
A-76
A21
クリーニングユニット
(
オプション
)
Cleaning unit (option)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1899-202-A
SC MOUNT
SC MOUNT
2
2 EZ1-492-032-14
ｾﾝｻ-
ASSY (IN2-7)
SENSOR ASSY (IN2-7)
1
3 EZ1-492-032-24
ｾﾝｻ-
ASSY (IN2-8)
SENSOR ASSY (IN2-8)
1
4 EZ1-492-034-63
ｾﾝｻ-
ASSY (IN2-10)
SENSOR ASSY (IN2-10)
1
5 EZ1-492-041-83
ｾﾝｻ-
ASSY (IN2-11)
SENSOR ASSY (IN2-11)
1
6 EZ1-492-024-12
ｾﾝｻ-
ASSY (L11)
SENSOR ASSY (IN2-12)
1
7 EZ1-492-338-13
ｾﾝｻ-
ASSY (IN2-9)
SENSOR ASSY (IN2-9)
1
8 EZ1-787-838-11
ｻ-ﾎﾞ ﾓ-ﾀ
(SGMJV-01ADA61)
MOTOR, SERVO (SGMJV-01ADA61)
1
9 EZ4-459-003-01
ｱﾂｼﾕｸ
ｺｲﾙ
ﾊﾞﾈ
(#5558)
SPRING (#5558), COMPRESSION
1
10 EZ2-249-361-01
ﾍｲｺｳ
ﾋﾟﾝ
(
ｺｳｼﾂ
)
PIN, PARALLEL
1
11 EZ2-584-986-31
ﾛ-ﾚﾂﾄ ﾉﾌﾞ
(NKOSC6-10-22)
KNOB (NKOSC6-10-22), KNURL
2
12 EZ2-672-391-11
ｽﾄﾂﾌﾟ
ﾋﾟﾝ
(USTEH8)
PIN, STOP (USTEH8)
2
13 EZ2-672-449-31
ｱﾂｼﾕｸ
ｺｲﾙ
ﾊﾞﾈ
(1135)
SPRING, COMPRESSION COIL(1135)
2
14 EZ2-691-046-21
ﾜﾂｼﾔ
(WSSB20-8-1)
WASHER (WSSB20-8-1)
2
15 EZ2-693-716-01
ﾐﾆﾁﾕｱ
ﾀﾏ
ｼﾞｸｳｹ
(F688AZZ1)
BALL (BEARING (F688AZZ1))
2
16 EZ2-990-379-01
ｼﾁﾕｳ
SUPPORT
8
17 EZ4-141-605-01
ﾄﾙｸ
ﾘﾐﾂﾀ
(OTLV8-1500C)
LIMITER (OTLV8-1500C), TORQUE
1
18 EZ4-184-270-51
ｹ-ﾌﾞﾙ ﾍﾞｱ
(TKP0180W40R50-39L*)
BARE (TKP0180W40R50-39L+PIA*)
1
19 EZ4-447-109-01
ｴﾙﾎﾞ
ﾕﾆｵﾝ
(KQ2L04-M5A)
UNION (KQ2L04-M5A), ELBOW
2
20 EZ4-447-186-01
ﾕﾆｵﾝ
ﾜｲ
(KQ2U04-00A)
WYE (KQ2U04-00A), UNION
4
21 EZ4-455-307-01
ﾓ-ﾀ ｼﾞｸﾞ ｱﾀﾞﾌﾟﾀ
ADAPTOR, MOTOR SHAFT
1
22 EZ4-455-308-01
ﾘﾐﾂﾄ
ﾌﾞﾗｹﾂﾄ
BRACKET, LIMIT
1
23 EZ4-455-309-01
ｶﾗ-
S
COLLAR (S)
2
24 EZ4-455-310-01
ｶﾗ-
L
COLLAR (L)
1
25 EZ4-455-313-01
ﾍﾟ-ﾊﾟ- ｵｻｴ
RETAINER, PAPER
3
26 EZ4-455-314-01
ｼﾔﾌﾄ
R
SHAFT (R)
1
27 EZ4-455-315-01
ｼﾔﾌﾄ
F
SHAFT (F)
2
28 EZ4-455-317-02
ｷﾊﾞﾝ
ﾌﾞﾗｹﾂﾄ
BRACKET, PC BOARD
1
29 EZ4-455-318-02
ｼﾞﾖｲﾝﾄ
ﾌﾞﾗｹﾂﾄ
CXF
BRACKET (CXF), JOINT
1
30 EZ4-455-318-12
ｼﾞﾖｲﾝﾄ
ﾌﾞﾗｹﾂﾄ
CXR
BRACKET (CXR), JOINT
1
A-77
