A13 電装ユニット 1 Electr ical unit 1 ｲﾗｽﾄ番 号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 EZA- 1923 - 199 -A PLS COMPL PLS COMPL 1 2 EZ 1- 243 - 498 - 11 ﾌﾈﾝｾｲﾏｷ ｾﾝﾃｲ ｺｳ (GZG - 150 W- …

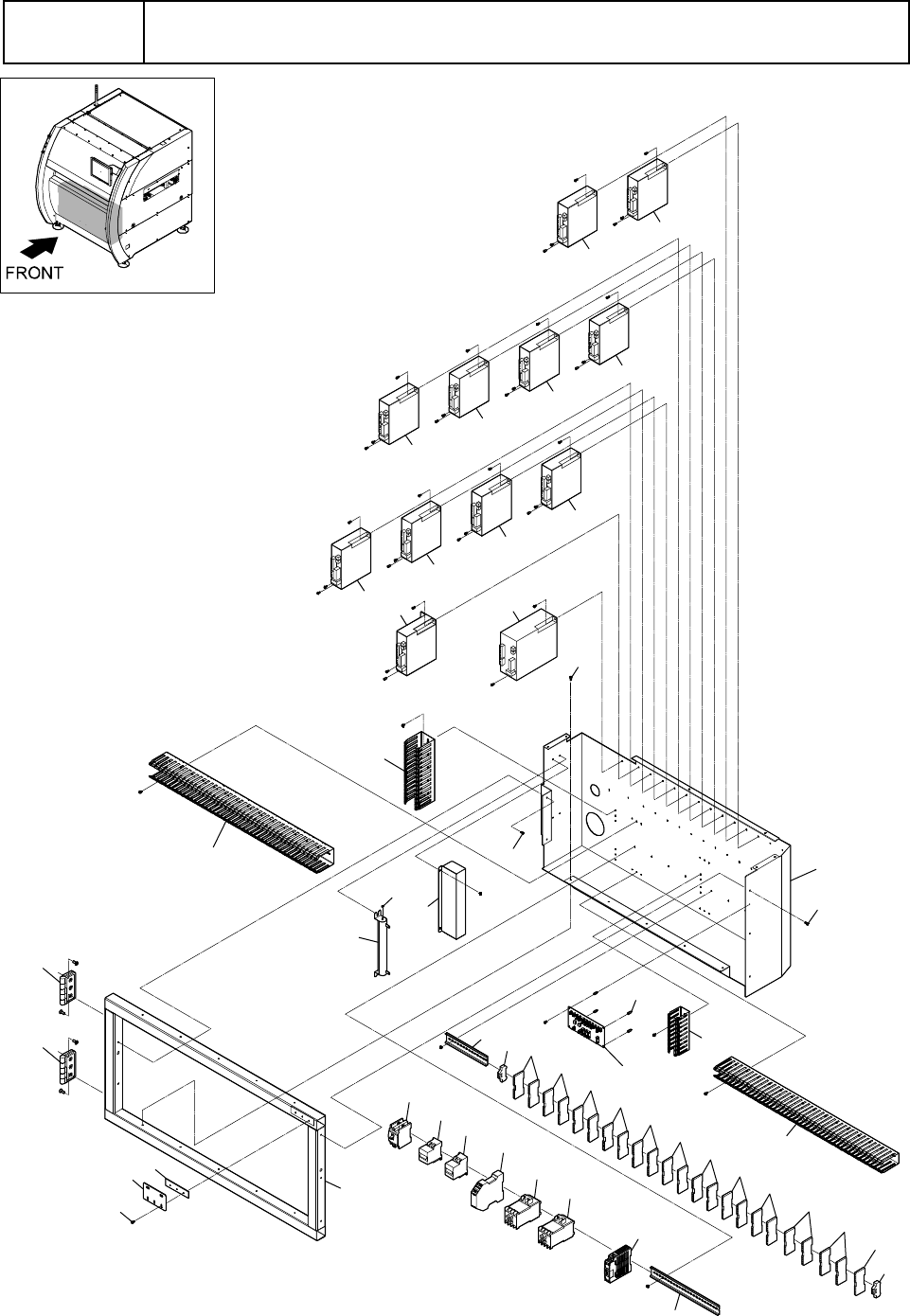

A13
電装ユニット
1
Electrical unit 1
7
8
8
10
9
9
13
3
2
25
24
5
6
6
4
24
18
24
1
11
12
12
12,16
6
6
6
6
6
6
6
6
22
24
20
22
26
27
14
14
11
11
11
11
11
11
11
11
17
19
17
21
15
15
23
A-49
A13
電装ユニット
1
Electrical unit 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1923-199-A
PLS COMPL
PLS COMPL
1
2 EZ1-243-498-11
ﾌﾈﾝｾｲﾏｷｾﾝﾃｲｺｳ
(GZG-150W-500-J)1
RES, NONFLAMMABLE
WIREWOUND
1
3 EZ1-474-490-11
ﾊﾟﾜ- ｻﾌﾟﾗｲ
(PS5R-SB24)
SUPPLY, POWER (PS5R-SB24)
1
4 EZ1-489-052-11
AC
ｻ-ﾎﾞ ﾊﾟﾂｸ
(CACR-5R5-SO4VA)
SERVO PACK, AC (CACR-5R5-
SO4VA
1
5 EZ1-489-053-11
AC
ｻ-ﾎﾞ ﾊﾟﾂｸ
(CACR-2R8-SO4VA)
SERVO PACK, AC (CACR-2R8-
SO4VA
1
6 EZ1-489-054-11
AC
ｻ-ﾎﾞ ﾊﾟﾂｸ
(CACR-R90-SO4VA)
SERVO PACK, AC (CACR-R90-
SO4VA
10
7 EZ1-576-952-11
ﾉ- ﾋﾕ-ｽﾞ ｼﾔﾀﾞﾝｷ
(NF30-FAU2P*)
BREAKER (NF30-FAU2P 15A CE)
1
8 EZ1-576-959-12
ｻ-ｷﾂﾄ ﾌﾟﾛﾃｸﾀ-
(CP32FM/3)
PROTECTOR, CIRCUIT (CP32FM/3)
2
9 EZ1-755-583-11
ﾃﾞﾝｼﾞ ｾﾂｼﾖｸｷ
(SC-03/G
ｺｲﾙ
DC*)
CONTACTOR, ELECTROMAGNETIC
2
10 EZ1-755-674-11
ｾ-ﾌﾃｲ- ﾘﾚ
-
(HR1S-AF5130B)
RELAY, SAFETY (HR1S-AF5130B)
1
11 EZ1-854-019-11
ﾀﾝｼ ﾀﾞｲ
(PT4-QUATTRO)
TERMINAL BLOCK (PT4-QUATTRO)
18
12 EZ1-854-020-11
ﾀﾝｼ ﾀﾞｲ
(PT4-QUATTRO-PE)
TERMINAL BLOCK (PT4-QUATTRO-
PE
5
13 EZ4-453-718-01
DIN
ﾚ-ﾙ
(NS35/7,5PERF300MM/Z)
RAIL (NS35/7,5PERF300MM/Z),DIN
1
14 EZ4-453-719-01
ﾀﾞｸﾄ
(AD-682)
DUCT (AD-682)
1
15 EZ4-453-720-01
ﾀﾞｸﾄ
(AD-482)
DUCT (AD-482)
1
16 EZ4-453-870-01
ｼﾕｳﾀﾝﾊﾞﾝ
(D-PT 4-QUATTRO)
PLATE (D-PT 4-QUATTRO), END
2
17 EZ4-453-871-01
ｼﾕｳﾀﾝ ﾄﾞﾒ
(E/NS 35N)
STOPPER (E/NS 35N), END
2
18 EZ4-455-220-03
ﾊｲﾃﾞﾝﾊﾞﾝ
PLATE, SWITCH
1
19 EZ4-455-223-02
ﾊｲﾃﾞﾝﾊﾞﾝ ﾌﾚ-ﾑ
FRAME, SWITCH PLATE
1
20 EZ4-455-224-01
ｺﾃｲ ﾌﾟﾚ-ﾄ
PLATE, FIXED
1
21 EZ4-455-723-01
DIN
ﾚ-ﾙ
(NS35/7, 5PERF180MM/Z)
RAIL, DIN
1
22 EZ4-456-872-01
ﾁﾖｳﾊﾞﾝ
(B-1064-1)
HINGE (B-1064-1)
2
23 EZ4-705-584-11
ｽﾍﾟ-ｻ
(SQ-10)
SPACER (SQ-10)
4
24 EZ7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
13
25 EZ7-684-023-04
N 3, TYPE 2
N 3, TYPE 2
2
26 EZ4-455-233-02
PC
ﾊﾟﾈﾙ
PANEL, PC
1
27 EZ4-455-270-01
ﾚｼﾞｽﾀ ｶﾊﾞ-
COVER, RESISTOR
1
A-50
A13
電装ユニット
1
Electrical unit 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
EZ1-500-386-11
ｸﾗﾝﾌﾟ ﾌｲﾙﾀ
(
ﾌｴﾗｲﾄ ｺｱ
)
FILTER, CLAMP (FERRITE CORE)
1
EZ1-854-023-11
ﾌﾞﾘﾂｼﾞ ﾊﾞ
-
(FBS4-6)
FERRITE-ROD, BRIDGE (FBS4-6)
4
EZ4-455-926-01
ｹｲｺｸ ﾗﾍﾞﾙ
(
ｶﾐﾅﾘ
) (M)
LABEL (ZIGZAG) (M), WARNING
1
EZ4-462-761-01
ｱ-ｽ ﾗﾍﾞﾙ
LABEL, EARTH
1
EZ4-722-956-01
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ
(TTC82YS-10)
LABEL (SILVER), BLANK
22
EZ7-300-011-85
ｼﾞｻﾞｲ ﾌﾞﾂｼﾕ
(GEE99F-A-C)30.48M
BUSHING, UNIVERSAL(GEE99F-A-C)
376
EZ2-691-843-01
ﾀﾝｼ ｶﾊﾞ-
(TCS-05FA2)
COVER (TCS-05FA2), TERMINAL
1
EZ3-217-534-01
ﾀﾝｼ ｶﾊﾞ-
(CP-T6)
COVER (CP-T6), TERMINAL
2
EZ3-217-535-01
ﾀﾝｼ ｶﾊﾞ-
(SZ-T1)
COVER (SZ-T1), TERMINAL
2
EZ7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
6
EZ7-682-960-01
+PSW 4X6
SCREW +PSW 4X6
16
EZ7-682-962-01
+PSW 4X10
SCREW +PSW 4X10
24
EZ7-683-418-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X6
BOLT,HEXAGON SOCKET 4X6
13
