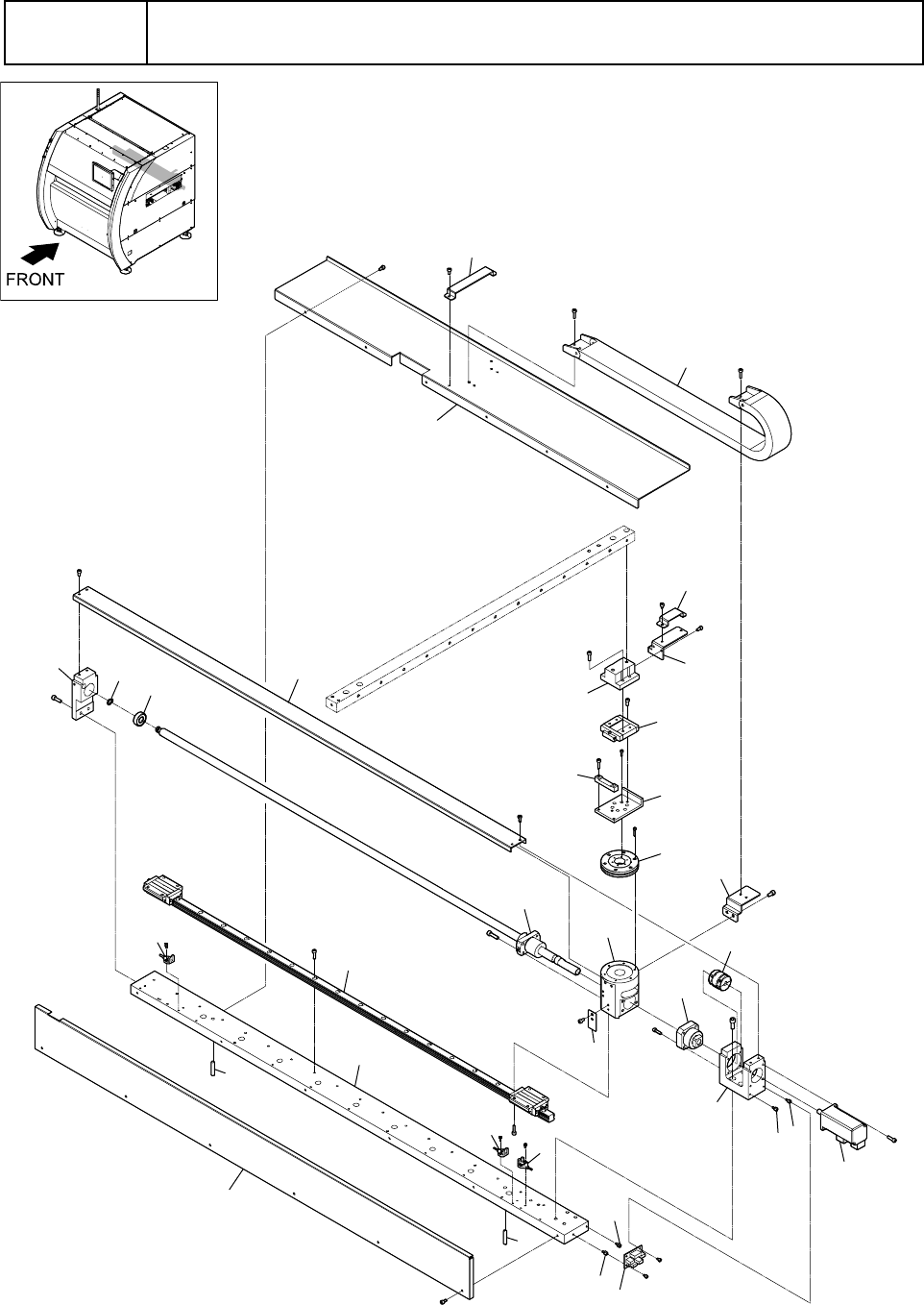

A 7 カメラ X 軸 (R) ユニット Camera X axis unit (Rear) 7 7 7 1 7 12 19 26 4 30 30 3 5 2 9 27 13 6 10 25 1 1 25 14 23 29 24 16 28 20 21 8 22 17 15 18 A- 25
A7
カメラ
X
軸
(R)
ユニット
Camera X axis unit (Rear)
7
7
7
1
7
12
19
26
4
30
30
3
5
2
9
27
13
6
10
25
11
25
14
23
29
24
16
28
20
21
8
22
17
15
18
A-25
A7
カメラ
X
軸
(R)
ユニット
Camera X axis unit (Rear)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1899-202-A
SC MOUNT
SC MOUNT
1
2 EZ4-454-876-01
ｶﾊﾞ-
2
COVER (2)
1
3 EZ1-492-041-62
ｾﾝｻ-
ASSY (S9ORG)
SENSOR ASSY (S9ORG)
1
4 EZ1-492-044-32
ｾﾝｻ-
ASSY (S9CW)
SENSOR ASSY (S9CW)
1
5 EZ1-492-044-42
ｾﾝｻ-
ASSY (S9CCW)
SENSOR ASSY (S9CCW)
1
6 EZ1-787-836-11
ｻ-ﾎﾞ ﾓ-ﾀ
(SGMJV-01ADA21)
MOTOR, SERVO (SGMJV-01ADA21)
1
7 EZ2-990-379-01
ｼﾁﾕｳ
SUPPORT
4
8 EZ4-184-270-41
ｹ-ﾌﾞﾙ ﾍﾞｱ
(TKP0180W40R50-36L*)
BARE (TKP0180W40R50-36L+PIA*)
1
9 EZ4-454-870-02
ﾍﾞ-ｽ ﾌﾟﾚ-ﾄ
PLATE, BASE
1
10 EZ4-454-871-01
ｻﾎﾟ-ﾄ ﾌﾞﾛﾂｸ
1
BLOCK (1), SUPPORT
1
11 EZ4-454-872-01
ｻﾎﾟ-ﾄ ﾌﾞﾛﾂｸ
2
BLOCK (2), SUPPORT
1
12 EZ4-454-873-03
ﾅﾂﾄ ﾌﾞﾛﾂｸ
BLOCK, NUT
1
13 EZ4-454-874-01
ﾄﾞｸﾞ
DOG
1
14 EZ4-454-875-01
ｶﾊﾞ-
1
COVER (1)
1
15 EZ4-454-877-01
ｽﾍﾟ-ｻ
SPACER
1
16 EZ4-454-879-01
ﾊﾞﾂﾌｱ ｼﾔﾌﾄ
SHAFT, BUFFER
1
17 EZ4-454-880-01
ﾊﾞﾂﾌｱ ｽﾄﾂﾊﾟ
STOPPER, BUFFER
1
18 EZ4-454-881-02
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾄﾚｲ
TRAY, CABLE BARE
1
19 EZ4-454-882-01
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ
BRACKET, CABLE BARE
1
20 EZ4-454-883-01
ｹ-ﾌﾞﾙ ｻﾎﾟ-ﾄ
SUPPORT, CABLE
1
21 EZ4-454-884-01
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ
1
CLAMP (1), CABLE
1
22 EZ4-454-885-01
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ
2
CLAMP (2), CABLE
1
23 EZ2-592-891-01
C
ｶﾞﾀ ﾄﾒﾜ
10 (
ｼﾞｸ ﾖｳ
)
STOP RING 10, TYPE C
1
24 EZ4-456-896-01
ｸﾛｽ ﾛ-ﾗ- ﾘﾝｸﾞ
(CRBF2012ATUUT1)
RING (CRBF2012ATUUT1), ROLLER
1
25 EZ4-456-910-11
ｻﾎﾟ-ﾄ ﾕﾆﾂﾄ
(BUM-12)
SUPPORT UNIT (BUM-12)
1
26 EZ4-456-914-01
ﾎﾞ-ﾙﾈｼﾞ
(FK1520PS-HPNR-1100X1*)
SCREW(FK1520PS-HPNR-
1100X102*)
1
27 EZ4-456-925-01
ﾘﾆｱ ｳｴｲ
(MEG15C1R1060E014)
LINEAR WAY (MEG15C1R1060E014)
1
28 EZ4-456-936-01
ﾘﾆｱ ｳｴｲ
(MLF30C1R60H)
LINEAR WAY(MLF30C1R60H)
1
29 EZ4-456-953-01
ｶﾂﾌﾟﾘﾝｸﾞ
(XGS-25C-8X10)
COUPLING (XGS-25C-8X10)
1
A-26
