A 11 Z テーブルユニット Z table unit 3 4 29 4 4 29 4 3 31 31 1 30 6 2 7 8 22 22 14 12 13 15 9 18 21 23 23 24 25 28 20 27 26 24 20 19 19 10 10 10 10 9 9 8 1 1 1 1 32 1 1 1 1 32 33 5 17 17 5 33 16 16 A- 39
A10
コンベア奥側
Back side conveyor lane
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
55 EZ7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
6
56 EZ7-683-404-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X8
BOLT,HEXAGON SOCKET 3X8
4
57 EZ7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
12
58 EZ7-683-420-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X10
BOLT,HEXAGON SOCKET 4X10
28
59 EZ2-593-797-01
U
ﾅﾂﾄ
(M4, 2
ｼﾕ
)
U NUT (M4, 2 MAIN)
1
60 EZ4-700-043-01
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ
(M3X4)
BOLT (M3X4), HEXAGON SOCKET
4
61 EZ4-700-043-31
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ
(M3X10)
BOLT (M3X10), HEXAGON SOCKET
10
62 EZ4-700-042-41
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ
(M4X15)
BOLT (M4X15), HEXAGON SOCKET
18
63 EZ4-718-767-07
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ
(M4X20 SUS)
SET-SCREW (M4X20 SUS), HEAD
2
64 EZ7-684-000-02
6
ｶｸﾅﾂﾄ
M4, TYPE2
NUT, HEXAGON M4, TYPE2
2
EZ7-627-451-28
ｾｲﾐﾂﾈｼﾞ
+K 1.4X3, TYPE 1
SCREW,PRECISION +K 1.4X3
10
EZ7-623-210-22
SW 4,TYPE 2
SW 4,TYPE 2
6
EZ7-684-000-01
6
ｶｸﾅﾂﾄ
M3, TYPE2
NUT, HEXAGON M3, TYPE2
2
EZ7-684-000-02
6
ｶｸﾅﾂﾄ
M4, TYPE2
NUT, HEXAGON M4, TYPE2
4
EZ4-718-767-01
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ
(M4X5 SUS)
SET-SCREW (M4X5 SUS), HEAD
2
A-38

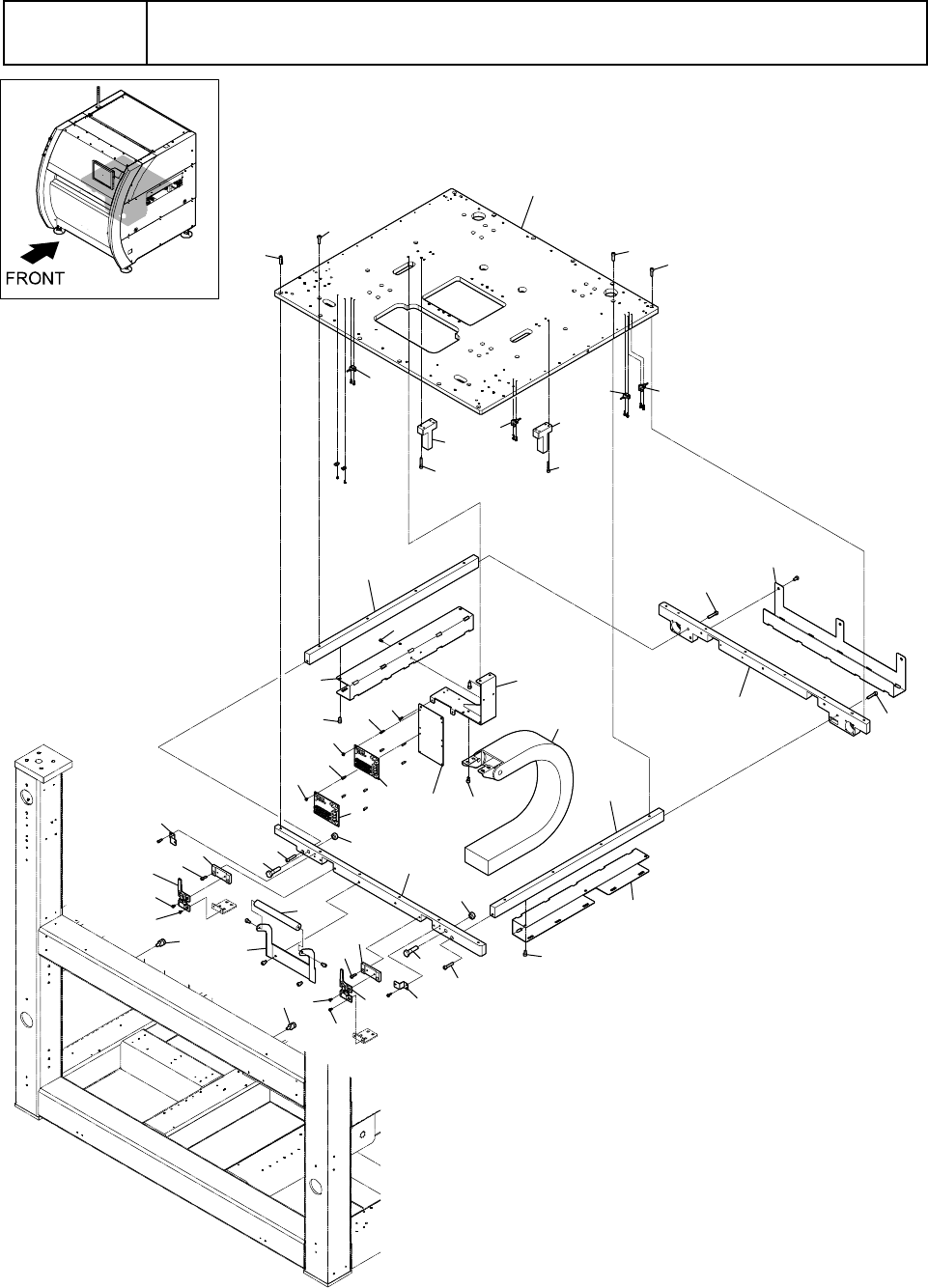

A11
Z
テーブルユニット
Z table unit
3
4
29
4
4
29
4
3
31
31
1
30
6
2
7
8
22
22
14
12
13
15
9
18
21
23
23
24
25
28
20
27
26
24
20
19
19
10
10
10
10
9
9
8
11
11
32
11
11
32
33
5
17
17
5
33
16
16
A-39
A11
Z
テーブルユニット
Z table unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ4-455-194-01
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ
1
BRACKET (1), CABLE BARE
1
2 EZ4-455-196-03
ﾎﾞ-ﾄﾞ ﾌﾟﾚ-ﾄ
PLATE, BOARD
1
3 EZ4-700-040-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X15)
BOLT (M5X15), HEXAGON SOCKET
4
4 EZ7-682-261-04
+K 4X8
SCREW +K 4X8
4
5 EZ7-682-947-09
+PSW 3X6
SCREW +PSW 3X6
8
6 EZ7-683-418-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X6
BOLT,HEXAGON SOCKET 4X6
2
7 EZ7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
2
8 EZ7-683-444-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X30
BOLT,HEXAGON SOCKET 5X30
8
9 EZ7-683-452-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X10
BOLT,HEXAGON SOCKET 6X10
10
10 EZ7-683-457-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X20
BOLT,HEXAGON SOCKET 6X20
36
11 EZ7-683-461-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X30
BOLT,HEXAGON SOCKET 6X30
4
12 EZ1-492-256-12
ｾﾝｻ-
ASSY (IN3-10)
SENSOR ASSY (IN3-10)
1
13 EZ1-492-041-33
ｾﾝｻ-
ASSY (S6ORG)
SENSOR ASSY (S6ORG)
1
14 EZ1-492-043-52
ｾﾝｻ-
ASSY (S6CW)
SENSOR ASSY (S6CW)
1
15 EZ1-492-043-62
ｾﾝｻ-
ASSY (S6CCW)
SENSOR ASSY (S6CCW)
1
16 EZ1-789-652-11
SDIOS-IN 16
ｷﾊﾞﾝ
ASSY
SDIOS-IN 16 BOARD ASSY
2
17 EZ2-990-379-01
ｼﾁﾕｳ
SUPPORT
8
18 EZ4-455-169-03
ﾃ-ﾌﾞﾙ
TABLE
1
19 EZ4-455-170-01
ﾘﾌﾞ
1
RIB (1)
2
20 EZ4-455-171-01
ﾘﾌﾞ
2
RIB (2)
1
21 EZ4-455-172-02
ﾘﾌﾞ
3
RIB (3)
1
22 EZ4-455-173-02
ﾀﾞﾝﾊﾟ
ｳｹ
RETAINER, DAMPER
2
23 EZ4-455-174-01
ﾊﾝﾄﾞﾙ ﾌﾟﾚ-ﾄ
PLATE, HANDLE
2
24 EZ4-455-175-01
ﾊﾝﾄﾞﾙ
ｽﾄﾂﾊﾟ
STOPPER, HANDLE
2
25 EZ4-455-176-01
ﾊﾝﾄﾞﾙ
ﾌﾞﾗｹﾂﾄ
BRACKET, HANDLE
1
26 EZ4-455-177-01
ｹ-ﾌﾞﾙ ﾄﾚｲ
1
TRAY (1), CABLE
2
27 EZ4-455-178-01
ｹ-ﾌﾞﾙ ﾄﾚｲ
2
TRAY (2), CABLE
1
28 EZ4-455-179-01
ﾊﾝﾄﾞﾙ
HANDLE
1
29 EZ4-456-913-01
ﾐﾂﾍﾟｲ
ﾖｳ
ﾊﾝﾄﾞﾙ
(FA-1110-5)
HANDLE (FA-1110-5), CLOSE UP
2
