RP-1-Rev00.pdf - 第142页
B3-3 サーボ入力系配線 図 1 Wiring diagram serv o input signal 1 B- 31
B3-2
サーボモーター配線図
2
Wiring diagram servo motor 2
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
3 EZ1-489-054-11
AC
ｻ-ﾎﾞ ﾊﾟﾂｸ
(CACR-R90-SO4VA)
SERVO PACK, AC (CACR-R90-
SO4VA
10
14 EZ1-968-866-91
ﾊ-ﾈｽ
(
ｱ-ｽ
S9)
HARNESS
1
15 EZ1-968-867-11
ﾊ-ﾈｽ
(
ｱ-ｽ
S10)
HARNESS
1
16 EZ1-968-868-11
ﾊ-ﾈｽ
(
ｱ-ｽ
S11)
HARNESS
1
17 EZ1-968-868-21
ﾊ-ﾈｽ
(
ｱ-ｽ
S12)
HARNESS
1
26 EZ1-968-849-72
ﾊ-ﾈｽ
(AC
ｼﾕｶｲﾛ
S9)
HARNESS
1
27 EZ1-968-849-82
ﾊ-ﾈｽ
(AC
ｼﾕｶｲﾛ
S10)
HARNESS
1
28 EZ1-968-849-92
ﾊ-ﾈｽ
(AC
ｼﾕｶｲﾛ
S11)
HARNESS
1
29 EZ1-968-850-12
ﾊ-ﾈｽ
(AC
ｼﾕｶｲﾛ
S12)
HARNESS
1
36 EZ1-968-855-13
ﾊ-ﾈｽ
(
ｻ
-
ﾎﾞ
PW1-1)
HARNESS
1
37 EZ1-968-950-11
ﾊ-ﾈｽ
(
ｻ
-
ﾎﾞ
PW 1-2)
HARNESS
1
38 EZ1-968-940-14
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
PW1-3)
HARNESS
1
39 EZ1-968-851-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN1-1)
HARNESS
1
40 EZ1-968-949-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN 1-2)
HARNESS
1
41 EZ1-968-939-14
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN1-3)
HARNESS
1
42 EZ1-968-856-13
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
PW2-1)
HARNESS
1
43 EZ1-968-923-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
PW2-2)
HARNESS
1
45 EZ1-968-852-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN2-1)
HARNESS
1
46 EZ1-968-924-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN2-2)
HARNESS
1
47 EZ1-968-932-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
PW2-4)
HARNESS
1
48 EZ1-968-933-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN2-4)
HARNESS
1
51 EZ1-968-937-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
S10)
HARNESS
1
52 EZ1-968-920-21
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
PW S11)
HARNESS
1
53 EZ1-968-919-21
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
EN S11)
HARNESS
1
B-30
B3-3

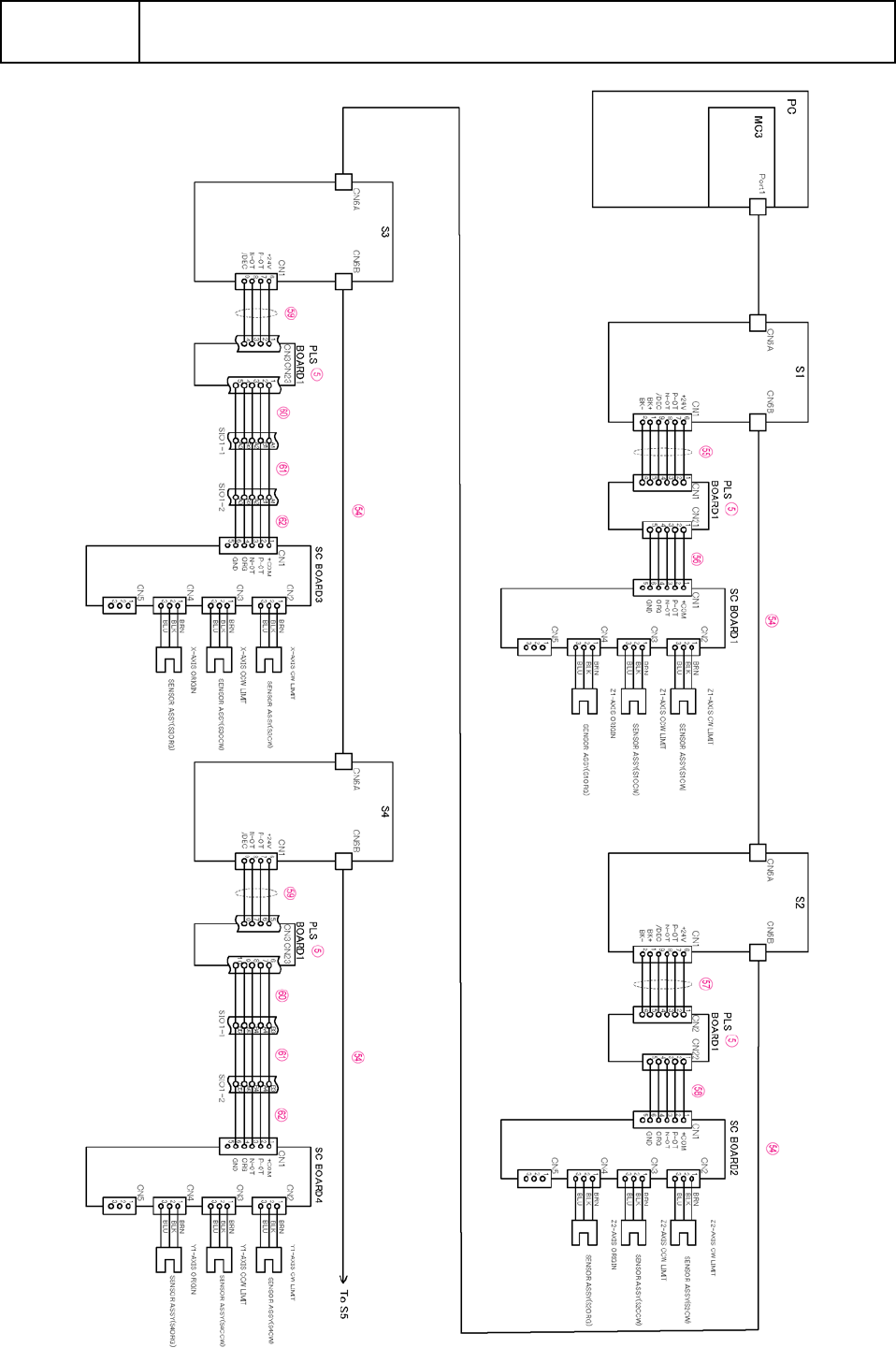

サーボ入力系配線図
1
Wiring diagram servo input signal 1
B-31
B3-3
サーボ入力系配線図
1
Wiring diagram servo input signal 1
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
5 EZA-1923-199-A
PLS COMPL
PLS COMPL
1
54 EZ1-838-011-11
ｻ-ﾎﾞ ｹ-ﾌﾞﾙ
(JEPMC-W6012-A2-E)
CABLE, SERVO (JEPMC-W6012-A2-
E
11
55 EZ1-968-859-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO S1B)
HARNESS
1
56 EZ1-968-862-13
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO3-1)
HARNESS
1
57 EZ1-968-859-21
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO S2B)
HARNESS
1
58 EZ1-969-421-12
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO4-1)
HARNESS
1
59 EZ1-968-864-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO S3/4)
HARNESS
1
60 EZ1-968-861-13
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO1-1)
HARNESS
1
61 EZ1-968-948-11
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO 1-2)
HARNESS
1
62 EZ1-968-938-13
ﾊ-ﾈｽ
(
ｻ-ﾎﾞ
IO1-3)
HARNESS
1
B-32
