RP-1-Rev00.pdf - 第68页
A 15 電源・制御ユニッ ト Power & Contro l unit 26 24 3 13,21 13 14 14,22 30 41 41 9 31 37 37 37 41 23 37 37 23 24 12 16 15 40 25 6 7 37 26 9 27 39 37 37 1 5 2 42 40 10 29 34 41 35 8 37 19 18 17 33 28 41 1 1 38 43 31 37 37 28 …
A14
電装ユニット
2
Electrical unit 2
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1911-473-A
CAN ADDA COMPL
CAN ADDA COMPL
1
2 EZA-1923-197-A
LED DRIVE COMPL
LED DRIVE COMPL
2
3 EZA-1923-198-A
RY COMPL
RY COMPL
1
4 EZ1-492-140-11
DC
ﾓ-ﾀ- ﾄﾞﾗｲﾊﾞ
(B-PDBA-30F)
DRIVER, DC MOTOR (B-PDBA-30F)
2
5 EZ1-755-648-11
ﾊﾟﾜ- ﾘﾚ
-
(G7J-2A2B-B 24V)
RELAY, POWER (G7J-2A2B-B 24V)
1
6 EZ1-789-652-11
SDIOS-IN 16
ｷﾊﾞﾝ
ASSY
SDIOS-IN 16 BOARD ASSY
1
7 EZ1-789-653-11
SDIOS-OUT 16
ｷﾊﾞﾝ
ASSY
SDIOS-OUT 16 BOARD ASSY
1
8 EZ1-854-018-12
ﾀﾝｼ ﾀﾞｲ
(PIT2, 5-QUATTRO BU)
TERMINAL BLOCK
17
9 EZ4-104-008-01
ｺﾃｲ ｶﾅｸﾞ
(R99-04 FOR G5F)
BRACKET (R99-04 FOR G5F),FIXED
1
10 EZ4-453-716-01
DIN
ﾚ-ﾙ
(NS35/7,5PERF130MM/Z)
RAIL (NS35/7,5PERF130MM/Z),DIN
1
11 EZ4-453-721-01
ﾀﾞｸﾄ
(AD-242)
DUCT (AD-242)
2
12 EZ4-453-765-01
ｼﾕｳﾀﾝﾊﾞﾝ
(D-ST2.5-QUATTRO)
PLATE (D-ST2.5-QUATTRO)
1
13 EZ4-453-871-01
ｼﾕｳﾀﾝ ﾄﾞﾒ
(E/NS 35N)
STOPPER (E/NS 35N), END
2
14 EZ4-455-221-03
ｷﾊﾞﾝ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ
PLATE, PC BOARD FITTING
1
15 EZ4-705-584-11
ｽﾍﾟ-ｻ
(SQ-10)
SPACER (SQ-10)
24
16 EZ7-682-947-01
+PSW 3X6
SCREW +PSW 3X6
24
17 EZ7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4×8
BOLT,HEXAGON SOCKET 4X8
2
EZ7-682-961-01
+PSW 4X8
SCREW +PSW 4X8
16
EZ1-854-021-11
ﾌﾞﾘﾂｼﾞ ﾊﾞ
-
(FBS3-5)
FERRITE-ROD, BRIDGE
3
EZ1-854-022-11
ﾌﾞﾘﾂｼﾞ ﾊﾞ
-
(FBS5-5)
FERRITE-ROD, BRIDGE (FBS5-5)
2
EZ4-716-434-11
ｲﾝｼﾕﾛﾂｸ ﾀｲ
(AB100
ｸﾛ
)
TIE, INSULOCK (AB100 BLACK)
10
EZ4-722-956-01
ﾌﾞﾗﾝｸ ﾗﾍﾞﾙ ｷﾞﾝ
(TTC82YS-10)
LABEL (SILVER), BLANK
10
A-53

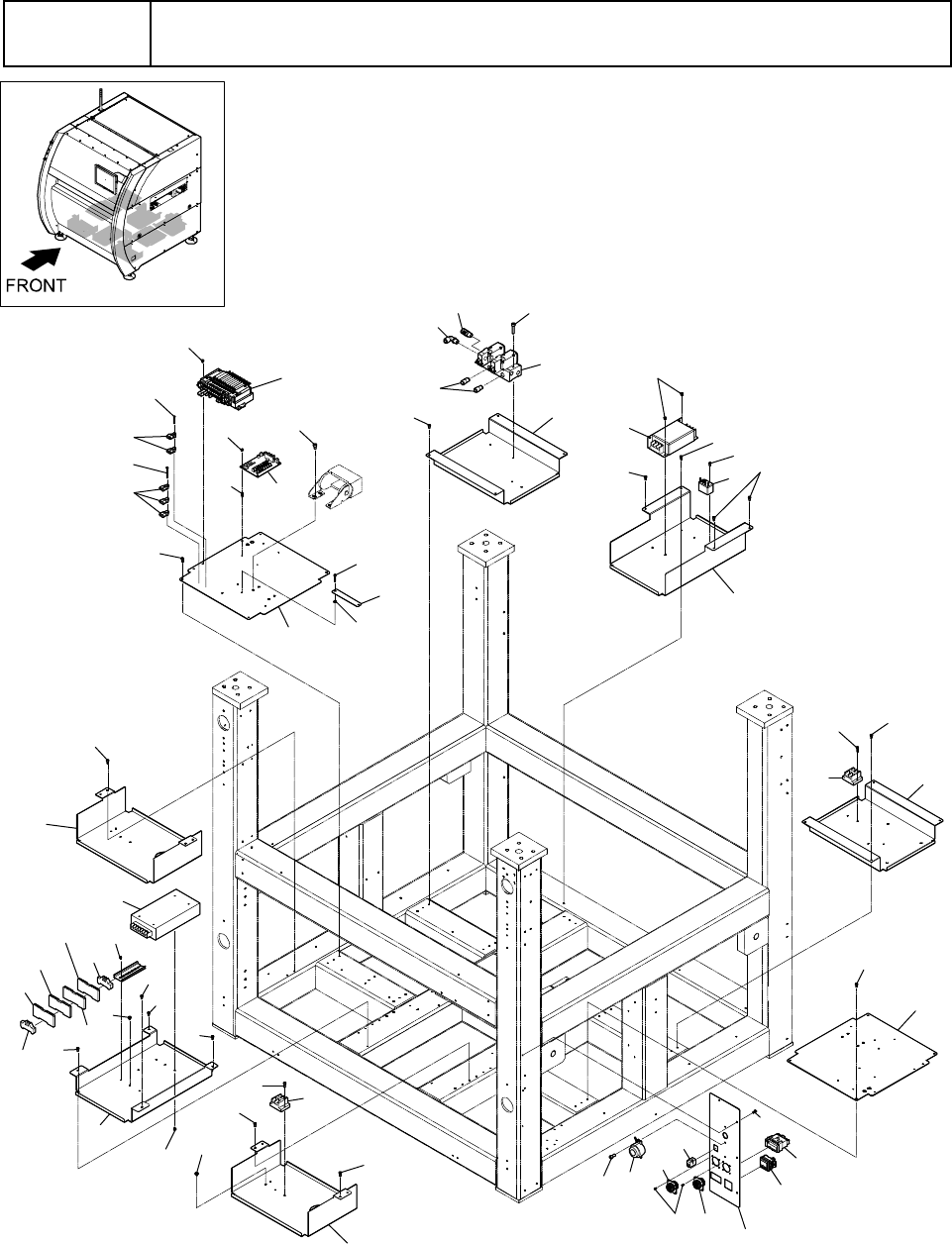

A15
電源・制御ユニット
Power & Control unit
26
24
3
13,21
13
14
14,22
30
41
41
9
31
37
37
37
41
23
37
37
23
24
12
16
1540
25
6
7
37
26
9
27
39
37
37
1
5
2
42
40
10
29
34
41
35
8
37
19
18
17
33
28
41
11
38
43
31
37
37
28
41
37
36
37
8
37
4
32
37
A-54
A15
電源・制御ユニット
Power & Control unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-200-170-11
ﾉｲｽﾞ ﾌｲﾙﾀ
(HF2020A-UP)
FILTER, NOISE (HF2020A-UP)
1
2 EZ1-492-442-12
ｺﾈｸﾀ
ASSY (
ﾊﾞﾙﾌﾞ
)
CONNECTOR ASSY (VALVE)
1
3 EZ1-474-493-11
ｽｲﾂﾁﾝｸﾞ ﾚｷﾞﾕﾚ-ﾀ
(PLA300F-24)
REGULATOR, SWITCHING
1
4 EZ1-492-016-11
ﾌﾞｻﾞ
-
ASSY
BUZZER ASSY
1
5 EZ1-492-019-12
ｻ-ｼﾞ ｷﾗ-
ASSY
SURGE KILLER ASSY
1
6 EZ1-492-262-11
ｱﾂﾘﾖｸ ｽｲﾂﾁ
(ISE30A-C4H-N-MB)
SWITCH,PRESSURE(ISE30A-C4H-
N*)
1
7 EZ1-520-538-12
ｱﾜ- ﾒ-ﾀ-
(H7ET-NFV-300)
METER, HOUR (H7ET-NFV-300)
1
8 EZ4-447-186-01
ﾕﾆｵﾝ ﾜｲ
(KQ2U04-00A)
WYE (KQ2U04-00A), UNION
5
9 EZ1-780-827-11
ﾀﾝｼﾀﾞｲ
(BTBH30C2)
TERMINAL BOARD (BTBH30C2)
1
10 EZ1-789-653-11
SDIOS-OUT 16
ｷﾊﾞﾝ
ASSY
SDIOS-OUT 16 BOARD ASSY
1
11 EZ1-492-442-12
ｺﾈｸﾀ
ASSY (
ﾊﾞﾙﾌﾞ
)
CONNECTOR ASSY (VALVE)
1
12 EZ1-842-491-11
ｽﾅﾂﾌﾟ ｲﾝ ﾓｼﾞﾕ-ﾙ
(NWSI-C5E-SH*)
MODULE (NWSI-C5E-SH*)
1
13 EZ1-854-018-12
ﾀﾝｼ ﾀﾞｲ
(PIT2, 5-QUATTRO BU)
TERMINAL BLOCK
2
14 EZ1-854-019-11
ﾀﾝｼ ﾀﾞｲ
(PT4-QUATTRO)
TERMINAL BLOCK (PT4-QUATTRO)
2
15 EZ1-968-958-11
ﾊ-ﾈｽ
(F I/F)
HARNESS
1
16 EZ1-968-959-11
ﾊ-ﾈｽ
(R I/F)
HARNESS
1
17 EZ4-436-830-21
ｻｲﾚﾝｻ
(AN20-02)
SILENCER (AN20-02)
1
18 EZ4-447-063-51
ｴﾙﾎﾞ ﾕﾆｵﾝ
(KQ2L08-02AS)
UNION (KQ2L08-02AS), ELBOW
1
19 EZ4-447-248-21
ﾊ-ﾌ ﾕﾆｵﾝ
(KQ2H08-02AS)
UNION (KQ2H08-02AS), HALF
2
20 EZ4-453-715-01
DIN
ﾚ-ﾙ
(NS35/7,5PERF100MM/Z)
RAIL (NS35/7,5PERF100MM/Z),DIN
1
21 EZ4-453-765-01
ｼﾕｳﾀﾝﾊﾞﾝ
(D-ST2.5-QUATTRO)
PLATE (D-ST2.5-QUATTRO)
1
22 EZ4-453-870-01
ｼﾕｳﾀﾝﾊﾞﾝ
(D-PT 4-QUATTRO)
PLATE (D-PT 4-QUATTRO), END
1
23 EZ4-453-871-01
ｼﾕｳﾀﾝ ﾄﾞﾒ
(E/NS 35N)
STOPPER (E/NS 35N), END
2
24 EZ4-455-225-01
ﾎｼﾞﾖ ｲﾀ
2
PLATE (2), ASSIST
2
25 EZ4-455-226-01
ｲﾝﾀ-ﾌｴｲｽ ﾌﾟﾚ-ﾄ
PLATE, INTERFACE
1
26 EZ4-455-227-04
ﾎｼﾞﾖ ｲﾀ
3
PLATE (3), ASSIST
2
27 EZ4-455-228-01
ﾎｼﾞﾖ ｲﾀ
4
PLATE (4), ASSIST
1
28 EZ4-455-221-03
ｷﾊﾞﾝ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ
PLATE, PC BOARD FITTING
2
29 EZ4-455-230-01
ｴｱ ｻﾌﾟﾗｲ ﾌﾞﾗｹﾂﾄ
COVER, AIR SUPPLY
1
A-55
