Stepper Motor
Outputs
The stepper motor demand outputs are digital output drivers which are opto-
isolated. The outputs are arranged in four groups for the three positional axis
drives and the fourth output is used in the multiplexer drive circuit.
Their functions are as follows:
• STEP Step pulses to the stepper drive cards
• DIR Direction of rotation to stepper drive cards.
• BOOST Not used
The outputs are routed to their respective stepper drive cards or via the
multiplexer card to drive the individual motors.

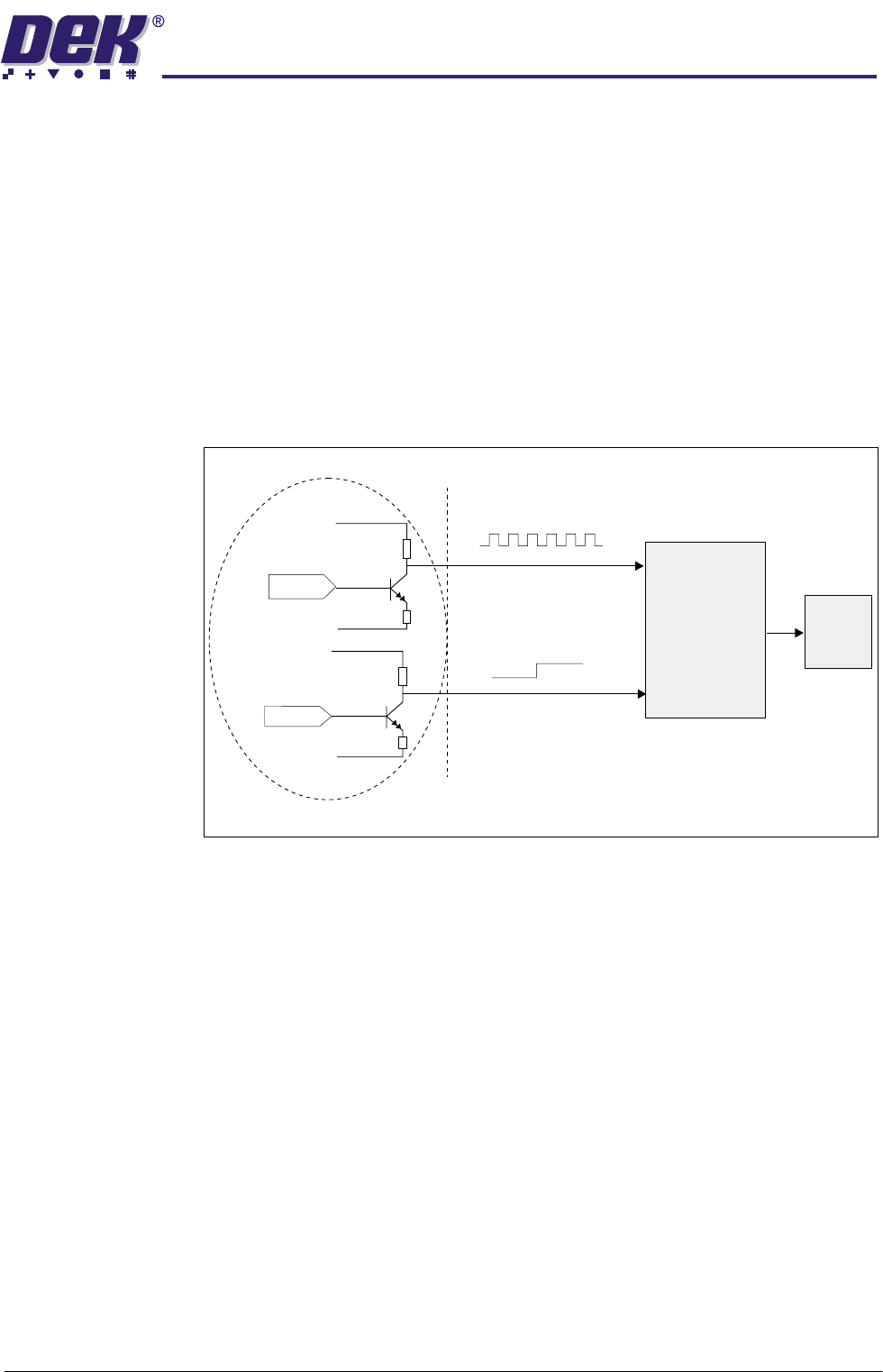

An example of the digital output for the stepper motor system is shown below:
Figure 6-9 Stepper Drive Signals
Single/Dual
Stepper Drive
STEP AXIS
DIR
STEP
NextMove Card
V+
12V
12V
Gnd
V+
Gnd
Stepper
Motor
STEP
DIR
0$&+,1(&21752//(5
1(;7029(&$5'
6.14 Technical Reference Manual Chapter Issue 4 May 03
NextMove
Breakout
The NextMove card passes signals through the 100 way breakout backplane
known as the NextMove Breakout. The breakout is situated on the rear
connector panel as shown below. DEK provide a breakout service tool which
plugs into either M19PL15 or M19PL17 it enables monitoring of the 100 Way
connector M19SK16 which has all the encoder, analog and digital signals
directed to it.

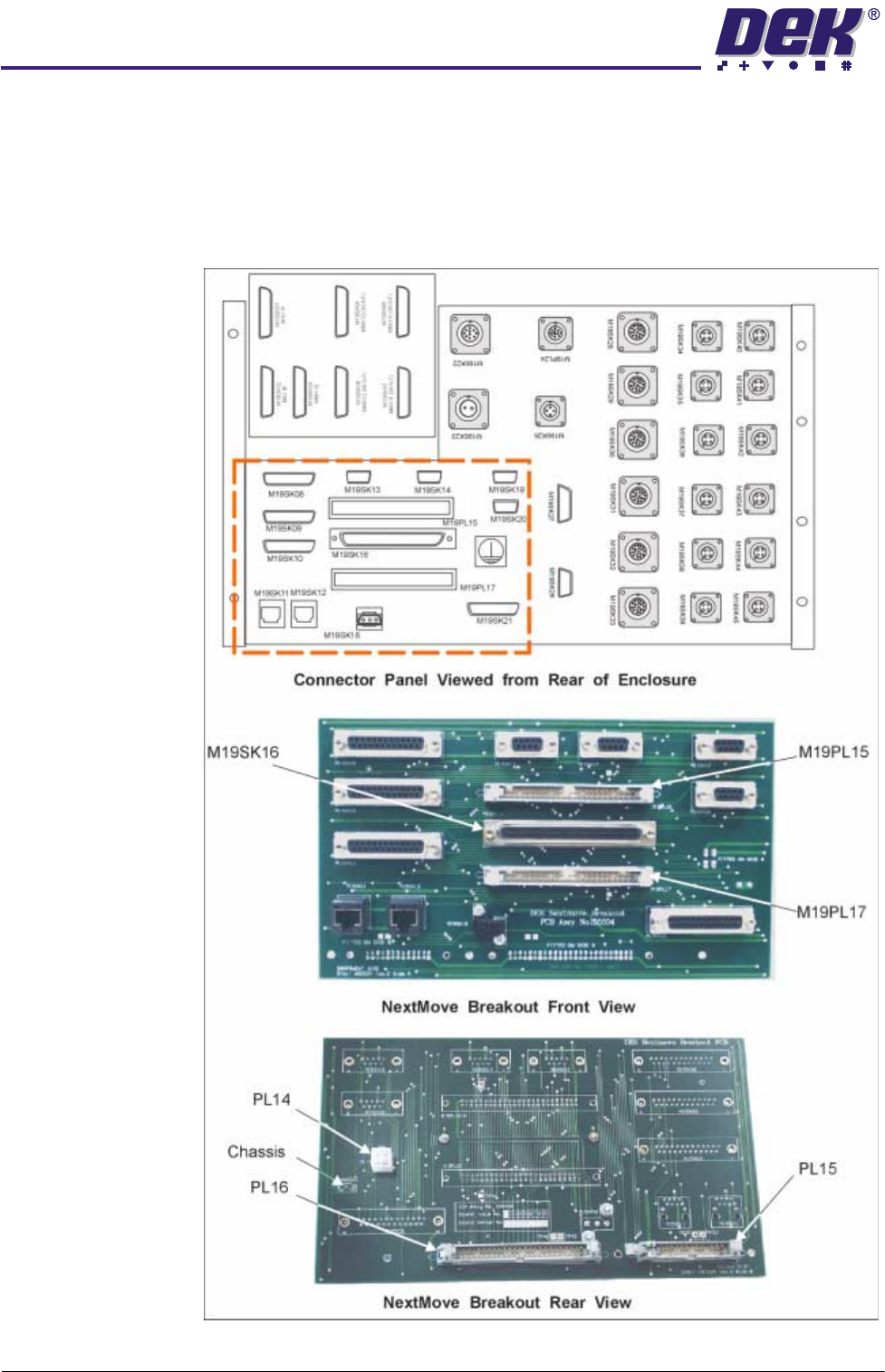

Figure 6-10 NextMove Breakout Backplane
0$&+,1(&21752//(5
1(;7029(&$5'
Chapter Issue 4 May 03 Technical Reference Manual 6.15
Service Tool The NextMove breakout service tool has screw terminals to enable easy
connection of test equipment to the 50 way breakout connectors M19PL15 and
M19PL17. This tool is used to enable all the signals available on the breakout
board sockets to be accessed for monitoring. Plug M19PL15 connects to all of
the odd numbered pins (1 through to 99) in connector M19SK16 whilst plug
M19PL17 connects to the even numbered pins of M19SK16.

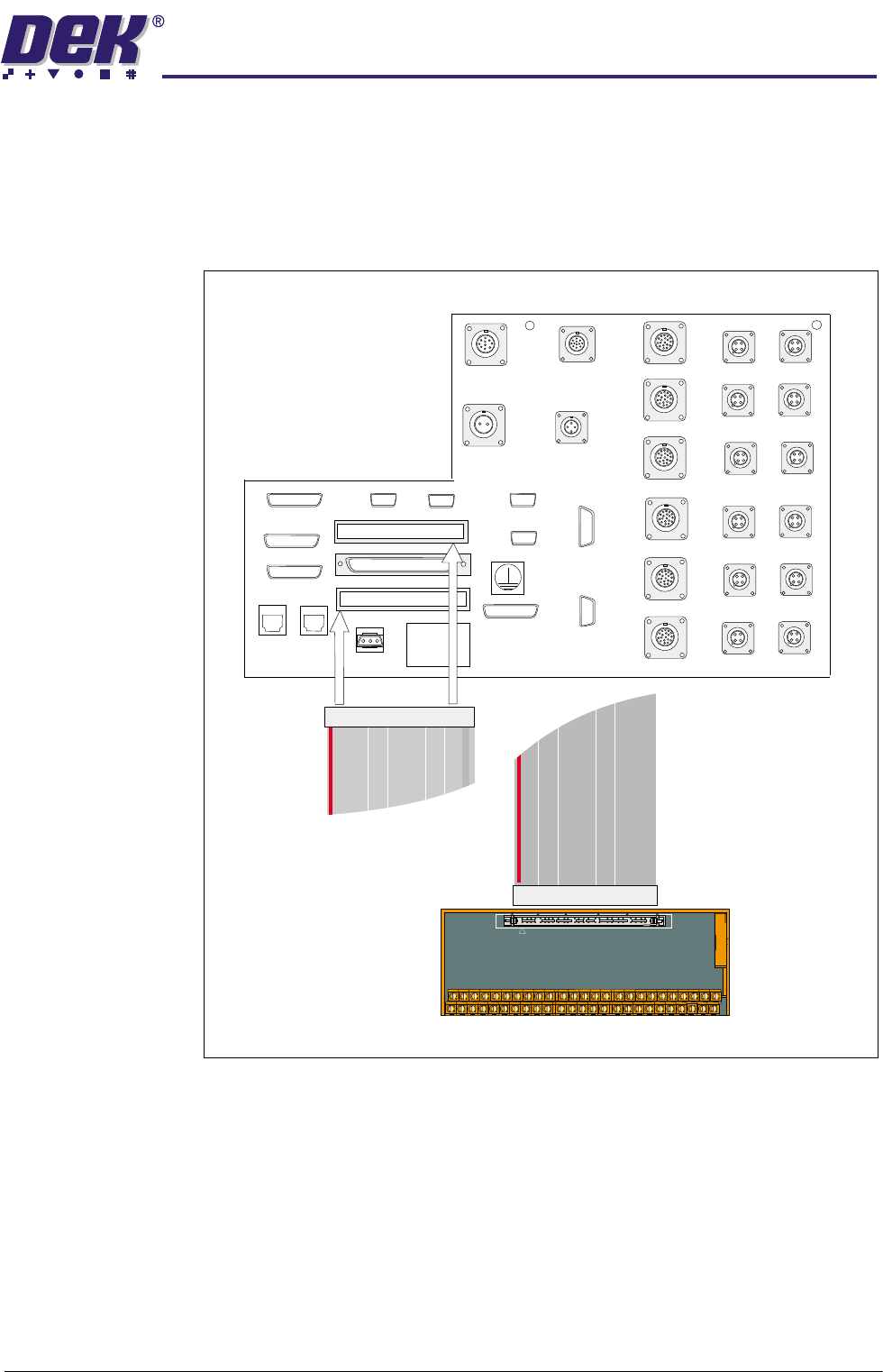

Figure 6-11 NextMove Breakout Service Tool
50 way IDC Connector
50 way IDC Connector
Service Tool
Rear Connector Panel
MODEL
BATCH NO
BATCH
CENTRE
M19SK45
M19SK39
M19SK38
M19SK37
M19SK36
M19SK35
M19SK34
M19SK33
M19SK32
M19SK31
M19SK27
M19SK26
M19SK30
M19SK29
M19SK28
M19PL24
M19SK22
M19SK23
M19SK19
M19SK20
M19SK21
M19SK14
M19SK13
M19SK15
M19SK16
M19SK17
M19SK18
M19SK08
M19SK10
M19SK11
M19SK12
M19SK09
M19SK25
M19SK44
M19SK43
M19SK42
M19SK41
M19SK40
NOTE
To monitor the signals on
the 100 Way NextMove
Connector M19SK16
connect the Service Tool
to either M19PL15 or
M19PL17 using the
interface ribbon cable.
