0$&+ ,1(&21752 //(5 08/7,029( Chapter Issue 4 May 03 Technical Reference Manual 6.25 IN5 Switch - Paste C artridge V ertical 9PL44 9S E14 IN6 Switc h - Pr oFlow C asse tte Low M18PL 01 M18SE 01 IN7 Link - Pr oFl…
0$&+,1(&21752//(5
08/7,029(
6.24 Technical Reference Manual Chapter Issue 4 May 03
IN5 Switch - Cleaner Home PCB C - CSK5 8SE10
IN6 Sensor - Paper Low 8PL71
IN7 Sensor - Solvent Low 8PL73
IN8
IN9 Config Jumper - Bit 0 MultiMove
Backplane
INA MIU Lane B Read Status M19SK02 N/C
INB MIU Downline Ready M19SK02 N/C
INC MIU Upline Ready M19SK02 N/C
IND MIU Lane A Read Status M19SK01 FMI Lane A
INE MIU Downline Ready M19SK01 FMI Lane A
INF MIU Upline Ready M19SK01 FMI Lane A
Source O/P MultiMove X13 Function Destination Device
0 Screen Clamps Solenoid Bank 16SOL07
1 Cleaner Squeegee Solenoid Bank 16SOL08
2 Cleaner Vac Valve Solenoid Bank 16SOL09
3 Solenoid - Board Clamp Solenoid Bank 16SOL10
4 Solenoid - Board Clamp Solenoid Bank 16SOL14
5 N/C Solenoid Bank
6 N/C Solenoid Bank
7 N/C Solenoid Bank
Totem O/P’s MultiMove X13 Function Destination Device
0 Spare Output
1 Lamp - Beacon, Green 14PL07 Beacon
2 Lamp - Beacon, Amber 14PL07 Beacon
3 Lamp - Beacon, Red 14PL07 Beacon
4 Buzzer 14PL07 Beacon
5 ProFlow Pressure Regulator Control DSK11/14SK07
6 Solenoid - Cleaner Home Clamp Rt/Lft
(Linked at PCB D DSK12)
PCB D DSK12 8SOL19/20
7 Solenoid - Chase Clamp Rt/Lft (Linked at
PCB D DSK13/14)
P1 & P2/P3 & P4 13SOL01/02
Signal Inputs MultiMove X12 Function Destination Device
IN0 Switch - Air Pressure PCB D SK9 8SE11
IN1 Sensor - Screen Present SK01 13SE07
IN2 Switch - Lid Bolt Extended PCB D SK7 9SW8
IN3 Sensor - Paste Cartridge Empty PCB E EPL6 9SE15
IN4 Switch - Paste Cartridge Horizontal 9PL45 9SE13
Signal Inputs MultiMove X13 Function Destination Device
0$&+,1(&21752//(5
08/7,029(
Chapter Issue 4 May 03 Technical Reference Manual 6.25
IN5 Switch - Paste Cartridge Vertical 9PL44 9SE14
IN6 Switch - ProFlow Cassette Low M18PL01 M18SE01
IN7 Link - ProFlow Cassette Fitted M18PL01
IN8 Config. Jumper - Bit 1 M19SK04
IN9 Config. Jumper - Bit 2 M19SK04
INA ProFlow Regulator Fitted M19SK04
INB SPARE M19SK04
INC SPARE M19SK04
IND Vacuum Tooling Sensor M19SK04
INE SPARE M19SK04
INF SPARE M19SK04
Source
Outputs
MultiMove X12 Function Destination Device
0 Solenoid - Table Brake 8PL09 8SOL02
1 Solenoid - External/Vacuum Filtration PCB B BSK8
2 Solenoid - Vacuum Tooling (Option) BPL9 8SOL24
3 Solenoid - ProFlow Paste Present 16SK02 16SOL03
4 SPARE Solenoid Bank 16SOL03
5 Lid Bolt Solenoid Bank 16SOL04
6 Solenoid - Paste Dispenser Solenoid Bank 16SOL05
7 Solenoid - Solvent Tank Pressure Solenoid Bank 16SOL06
Totem Ouputs MultiMove X12 Function Destination Device
0 Belt Motor #01+ (Front Rail) 8SK21 8M03
1 Belt Motor #01- (Front Rail) 8SK21 8M03
2 Belt Motor #04+ (Rear Rail) 8SK23 8M04
3 Belt Motor #04- (Rear Rail) 8SK23 8M03
4 Cartridge Tilt Motor+ 9PL48 9M9
5 Cartridge Tilt Motor- 9PL48 9M9
6 Solenoid - Solvent Valve 8PL76 8SOL25
7 Paper Feed Motor 8PL72 8M5
Signal Inputs MultiMove X12 Function Destination Device
0$&+,1(&21752//(5
6(592'5,9(&$5'
6.26 Technical Reference Manual Chapter Issue 4 May 03
SERVO DRIVE CARD
Four torque amplifier cards are used as servo drive cards, by the machine
controller, to drive the rising table, the camera X axis, the camera Y axis and
the print carriage axis motors. The axes for these motors are designated Axis
0 to Axis 3. The servo motors are connected to the servo/stepper backplane
and Axis 0 connects to SK7, Axis 1 to SK9, Axis 2 to SK8 and Axis 3 to SK10.
Two types of servo drive card may be fitted, as shown below and over the page.

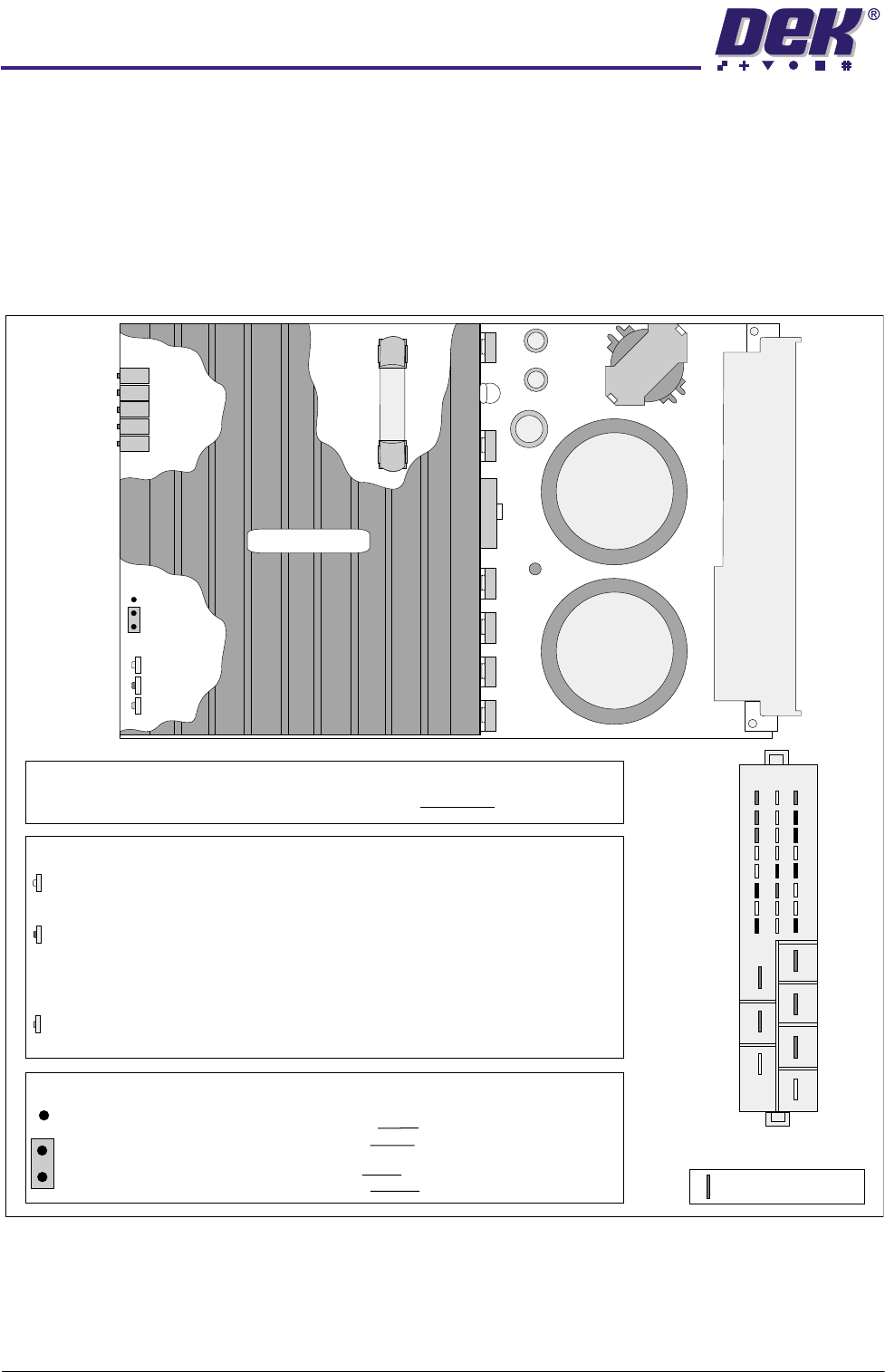

Figure 6-19 Type 1 Servo Drive Card Layout (Part No. 114025)
LD 4
VR 5
VR 1
VR 2
VR 3
VR 4
JP 1
yellow
red
green
a
b
Damping
Offset
Gain
Disable
Error
Power
AUX Gain
TACHO Gain
LEDs
DISABLE -
ERROR -
POWER -
This LED illuminates when the NextMove card removes the Enable signal
from the I/P, ie it echoes the state of the Enable I/P on Pin 2z.
Over Temperature - The temperature of the heatsink has become excessive
due to an enclosure ventilation problem or if the card has been operating at
a high current for too long.
Over Current - The output current exceeds 25A - 30A.
Illuminates to indicate that the system power (40V ac) is applied to the card.
This is the only indication during normal operation.
Position a -
Position b -
JUMPER JP 1
A ground on the Enable is required to disable the card - an open
circuit or voltage on the enable input enables the card.
A ground on the Enable is required to enable the card - an open
circuit or voltage on the disable input disables the card.
Heat Sink
Edge
Connector
End View on
Edge Connector
30
26
22
20
24
28
32
2
4
6
8
10
12
14
16
db
z
POTENTIOMETERS
All potentiometers on the card are pre-set at the factory and MUST NOT be adjusted.
Indicates pins used
Fuse FS1
250V
20A
