0$&+ ,1(&21752 //(5 %5($.287%2 $5'6 Chapter Issue 4 May 03 Technical Reference Manual 6.41 Breakout Board C Pin No. 1 2 6-1 3 4 3 15 16 14 17 1 8-2 5 Solvent Low Cover Interlock Head Open Jog Left Power On…
0$&+,1(&21752//(5
%5($.287%2$5'6
6.40 Technical Reference Manual Chapter Issue 4 May 03
Breakout Board B
Pin No.
1
2
6-13
4
3
15
16
14
17
18-25
Board At Left
FGT Board Stop Extended
Spare
Board At Stop
Spare
Board Stop Extended
+12V
Board At Right
0V
FGT Frame Fitted
Signal
Pin No.
1
2
5
4
3
7
8
6
9-12
Table Brake
ProFlow Paste Pressure
Paste Dispense Solenoid
Solvent Tank Pressure
Lid Bolt
0V
Cleaner Vacuum Power
AutoFlex Tooling
Vacuum Tooling
Signal
Pin No.
1,4
2,5
3
+12V
Spare
0V
Signal
Pin No.
1,4
2
3,6
5
+12V
FGT Frame Fitted
0V
FGT Board Stop Extended
Signal
Pin No.
1,4
2
3,6
5
+12V
Board At Left
0V
Board At Right
Signal
Pin No.
1,4
2
3,6
5
+12V
Board At Stop
0V
Board Stop Extended
Signal
Pin No.
1
2
Table Brake
0V
Signal
Pin No.
1
2
Vacuum Tooling
0V
Signal
Pin No.
1
2
Cleaner Vacuum Power
0V
Signal
Pin No.
1
2
5
4
3
6-10
ProFlow Paste Pressure
Paste Dispense Solenoid
0V
AutoFlex Tooling
Solvent Tank Pressure
Lid Bolt
Signal
BPL1
BSK3
BSK4
BSK5
BSK6
BSK10
BPL2
BSK7
BSK9
BSK8
0$&+,1(&21752//(5
%5($.287%2$5'6
Chapter Issue 4 May 03 Technical Reference Manual 6.41
Breakout Board C
Pin No.
1
2
6-13
4
3
15
16
14
17
18-25
Solvent Low
Cover Interlock
Head Open
Jog Left
Power On Monitor
Jog Right
+12V
Paper Low
0V
Cleaner Home
Signal
Pin No.
1
2
5
4
3
7
8
6
9-12
Belt Motor #1 +
Belt Motor #4 -
Solvent Pinch Valve
Paper Feed Motor
Cartridge Tilt Motor -
0V
Belt Motor #1 -
Cartridge Tilt Motor +
Belt Motor #4 +
Signal
Pin No.
1
2,4
3
Solvent Pinch Valve
0V
Paper Feed Motor
Signal
Pin No.
1
2
3
+12V
Cleaner Home
0V
Signal
Pin No.
1
2
3
4
Belt Motor #1 +
Belt Motor #2 -
Belt Motor #4 +
Belt Motor #4 -
Signal
Pin No.
1
2
3
4
Cartridge Tilt Motor +
Cartridge Tilt Motor -
Paste Roll Lamp
0V
Signal
Pin No.
1,4
2
3,6
5
+12V
Solvent Low
0V
Paper Low
Signal
Pin No.
1
2
24V US
0V
Signal
Pin No.
1
2
Paste Roll Lamp
Switch
Signal
Pin No.
1
2
5
4
3
6
Cover Interlock
Jog Left
0V
Power On Monitor
Jog Right
Head Open
Signal
CSK7
CPL1
CPL3
CSK7
CSK9
CSK5
CSK4
CSK8
CSK10
CPL2
CSK6
0$&+,1(&21752//(5
%5($.287%2$5'6
6.42 Technical Reference Manual Chapter Issue 4 May 03

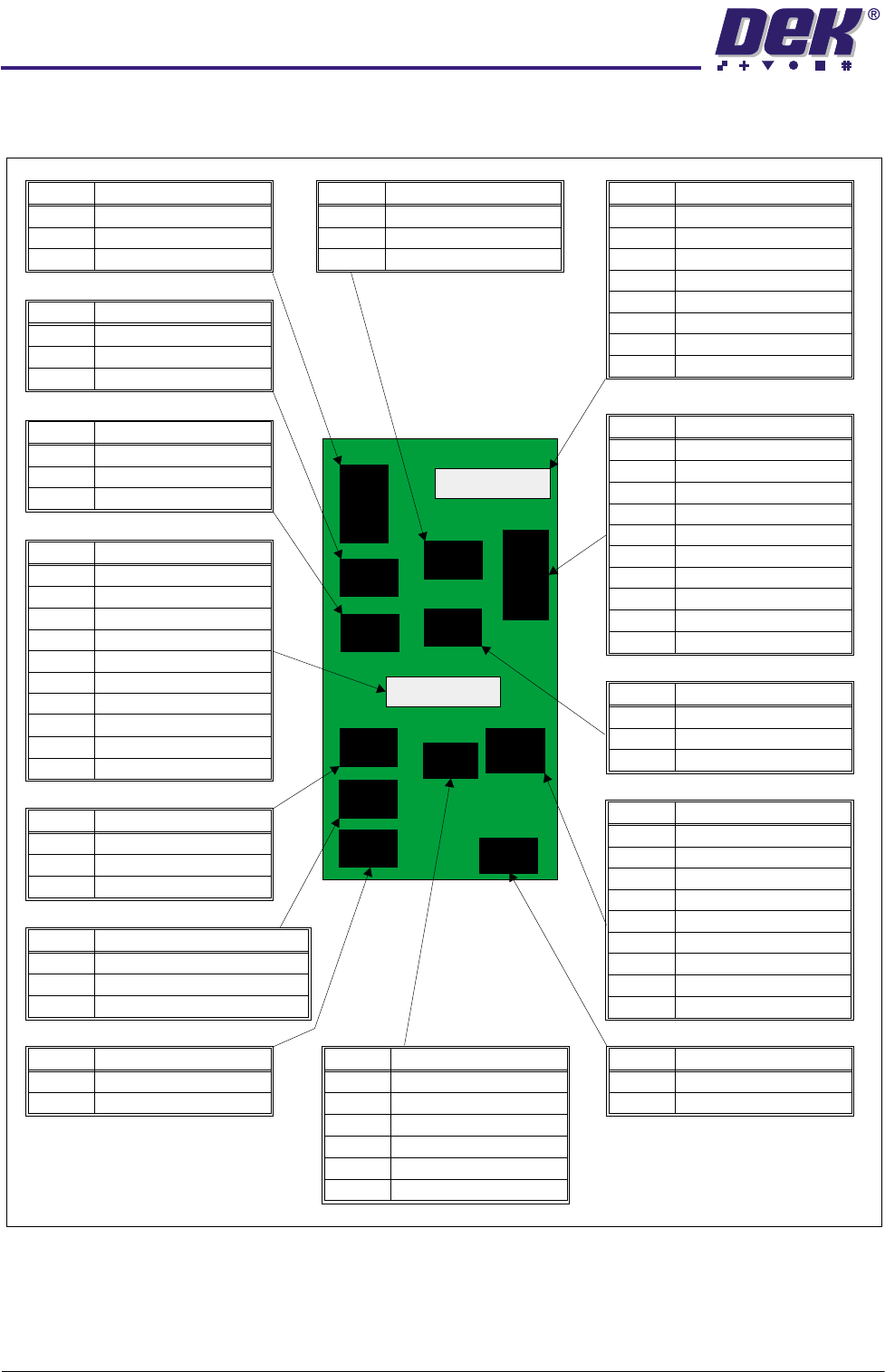

Breakout Board D
Pin No.
1
2
6-13
4
3
15
16
14
17
18-25
ProFlow Fitted
Cartridge Horizontal
Lid Bolt Extended
Screen Sensor
Cartridge Empty
Air Pressure
+12V
ProFlow Cassette Low
0V
Cartridge Vertical
Signal
Pin No.
1,2
3,12
6
5
4
8
9
7
10
11
+12V
Rear Squeegee Home
ProFlow Cassette Low
Cartridge Vertical
ProFlow Fitted
Cartridge Horizontal
Cartridge Empty
0V
Paste Carriage Home
Front Squeegee Home
Signal
Pin No.
1
2
5
4
3
7
8
6
9-12
Head Latch
Red Beacon
Cleaner Home Clamp
Chase Clamp Left
ProFlow SCAR
0V
Green Beacon
Buzzer
Amber Beacon
Signal
Pin No.
1,4
2
3,5,6
+12V
Screen Sensor
0V
Signal
Pin No.
1
2
3
+12V
Air Pressure
0V
Signal
Pin No.
1
2,4
3
Head Latch Left
0V
Head Latch Right
Signal
Pin No.
1
2
Chase Clamp Left
0V
Signal
Pin No.
1
2
Chase Clamp Right
0V
Signal
Pin No.
1
2,4
3
Cleaner Home Clamp Left
0V
Cleaner Home Clamp Right
Signal
Pin No.
1
2
3
4
5
6
Green Beacon
Amber Beacon
Red Beacon
Buzzer
ProFlow SCAR
0V
Signal
Pin No.
1
2
3
+12V
Moving Rail Home
0V
Signal
Pin No.
1
2
3
+12V
Screen Drive Home
0V
Signal
Pin No.
1
2
3
+12V
Lid Bolt Extended
0V
Signal
Pin No.
1
2
5
4
3
9-13
14-15
6-8
Front Squeegee Home
Paste Carriage Home
0V
+12V
+12V
Rear Squeegee Home
Screen Drive Home
Rail Home
Signal
DPL1
DPL2
DPL3
DSK4
DSK5
DSK6
DSK7
DSK8
DSK9
DSK10
DSK11
DSK12
DSK13
DSK14
