6.36 Technical Reference Manual Chapter Issue 4 May 03
Stepper Drive Designations
Signal Function Destination Source
Motor 2A- Front Squeegee Stepper Motor 9M3 Stepper Drive X5
Motor 2A+ Front Squeegee Stepper Motor
Motor 2B- Front Squeegee Stepper Motor
Motor 2B+ Front Squeegee Stepper Motor
Front Sq. Home Switch - Home PCB E - ESK4 MUX PL1
Motor 1A+ Rear Squeegee Stepper Motor 9M4 Stepper Drive X4
Motor 1A- Rear Squeegee Stepper Motor
Motor 1B+ Rear Squeegee Stepper Motor
Motor 1B- Rear Squeegee Stepper Motor
Rear Sq. Home Switch - Home PCB E - ESK4 MUX PL1
Motor 1B- Y Actuator Stepper Motor Stepper Drive X5
Motor 1B+ Y Actuator Stepper Motor
Motor 1A- Y Actuator Stepper Motor
Motor 1A+ Y Actuator Stepper Motor
Y Actuator Home Switch - Home Coarse 9PL35 M19SK09
Y Actuator Home Switch - Home Fine
Motor 2A- Moving Rail Stepper Motor 8M2 Stepper Drive X4
Motor 2A+ Moving Rail Stepper Motor
Motor 2B+ Moving Rail Stepper Motor
Motor 2B- Moving Rail Stepper Motor
Mov. Rail Home Switch - Moving Rail Home 8SE6 MUX PL1
Motor 2B- X Rear Actuator Stepper Motor Stepper Drive X3
Motor 2B+ X Rear Actuator Stepper Motor
Motor 2A- X Rear Actuator Stepper Motor
Motor 2A+ X Rear Actuator Stepper Motor
X Rear Act. Home Switch - Home Coarse 9PL34 M19SK09
X Rear Act. Home Switch - Home Fine 9PL34 M19SK09
Motor 1B+ X Forward Actuator Stepper
Motor
Stepper Drive X3
Motor 1B- X Forward Actuator Stepper
Motor
Motor 1A- X Forward Actuator Stepper
Motor
Motor 1A+ X Forward Actuator Stepper
Motor
X Fwd. Act. Home Switch - Home Coarse 9PL33 M19SK09
X Fwd. Act. Home Switch - Home Fine 9PL35 M19SK09
Motor 1B+ Paste Dispenser Motor Stepper Drive X6
Motor 1B- Paste Dispenser Motor
Motor 1A- Paste Dispenser Motor
0$&+,1(&21752//(5
'8$/67(33(5'5,9(
Chapter Issue 4 May 03 Technical Reference Manual 6.37
Motor 1A+ Paste Dispenser Motor
Paste Disp Home Switch - Paste Disp Home M19SK27
Signal Function Destination Source
0$&+,1(&21752//(5
%5($.287%2$5'6
6.38 Technical Reference Manual Chapter Issue 4 May 03
BREAKOUT BOARDS
The five breakout boards, PCB’s A through to E and two power connector
brackets are shown in the figure below:

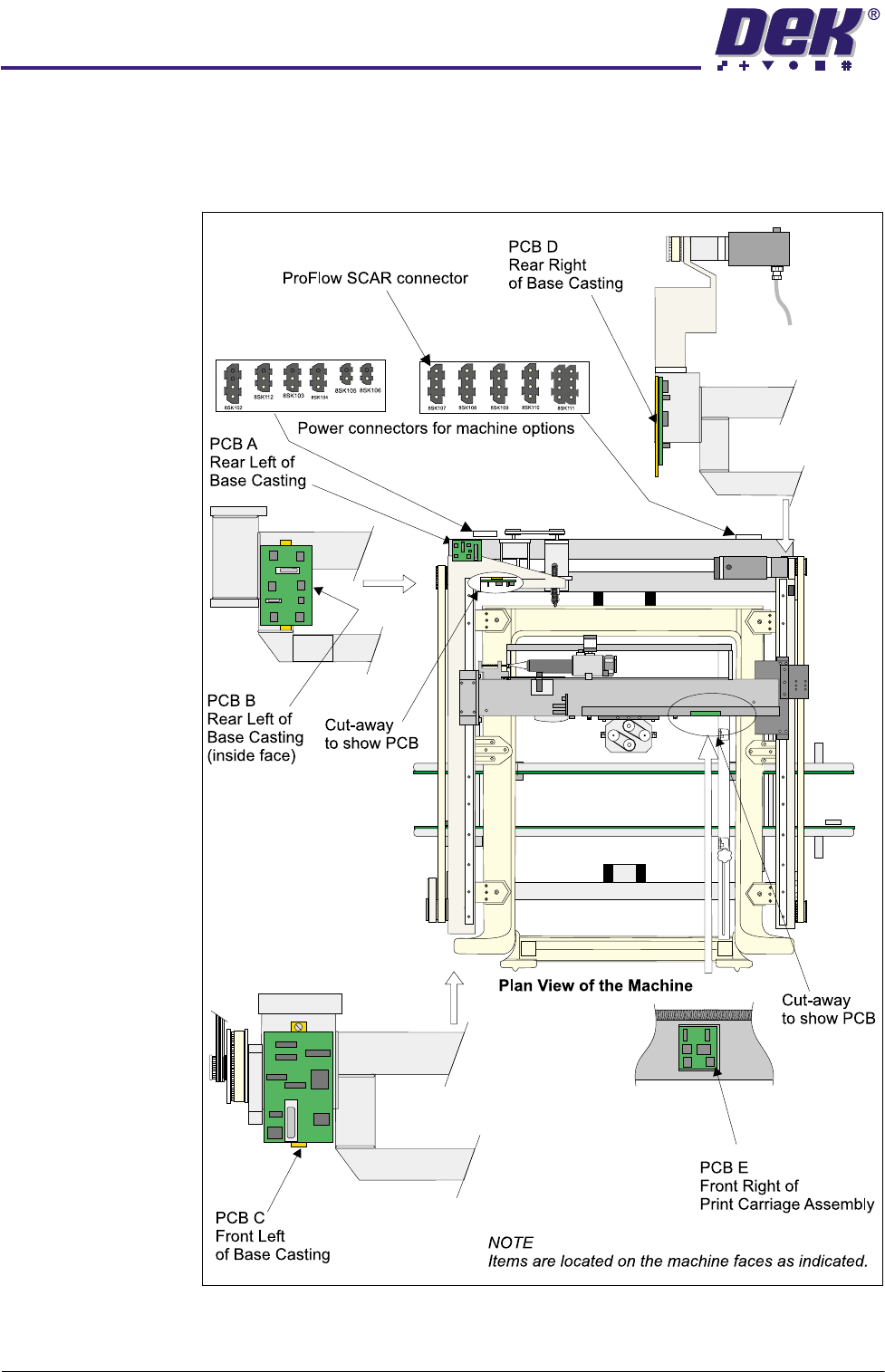

Figure 6-26 Breakout Board Locations
