0$&+,1( &21752//( 5 %5($.287% 2$5'6 6.40 Technical Reference Manual Chapter Issue 4 May 03 Breakout Board B Pin No. 1 2 6-1 3 4 3 15 16 14 17 1 8-2 5 Board At Left FGT Board S top Extended S pare Board At …
0$&+,1(&21752//(5
%5($.287%2$5'6
Chapter Issue 4 May 03 Technical Reference Manual 6.39

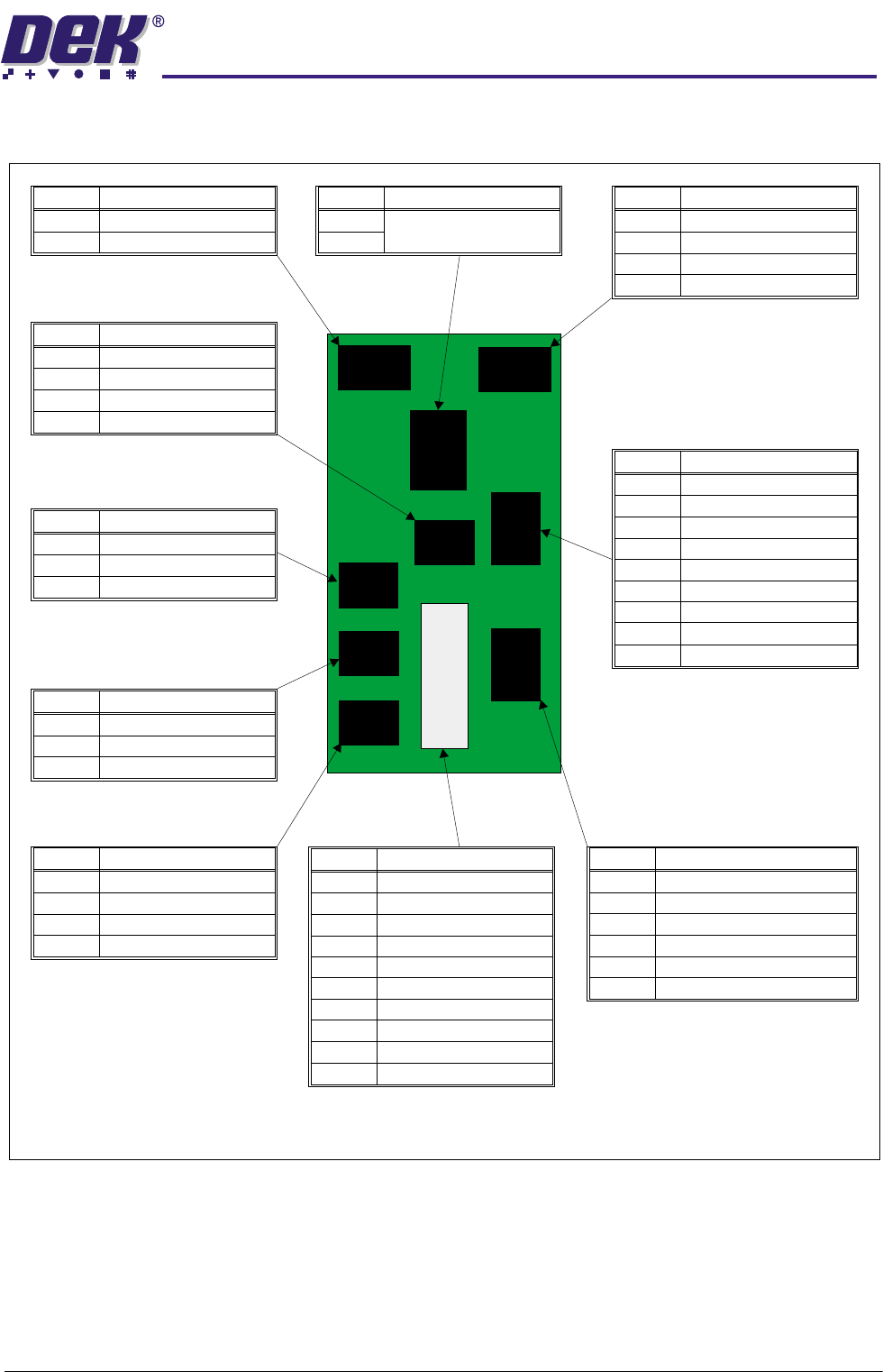

Breakout Board A
Pin No.
1
2
6-13
4
3
15
17
14
18-25
X Rear Fine Home
X Forward Coarse Home
Y Actuator Coarse Home
Camera Y Home
Y Actuator Fine Home
+12V
X Rear Coarse Home
0V
X Forward Fine Home
Signal
Pin No.
1
2
6-13
4
3
15
16
14
18-25
Rising Table Home
Rail Lifted Left
Camera X Home
Print Carriage Home
Rail Lifted Right
+12V
Rising Table Limit
0V
Rising Table Interlock
Signal
Pin No.
1
2
3
+12V
Camera X Home
0V
Signal
Pin No.
1,4,7
2
3,6,9
5
8
+12V
Rising Table Home
0V
Rising Table Limit
Rising Table Interlock
Signal
Pin No.
1,4
2
3,6
5
+12V
Print Carriage Home
0V
Camera Y Home
Signal
Pin No.
1,4,7,10
2
3,6,8,
9,11,12
5
+12V
Rail Lifted Left
0V
Rail Lifted Right
Signal
Pin No.
1,5,9
2
6
4,8,12
3
10
11
7
+12V
0V
Y Actuator Fine Home
Y Actuator Coarse Home
X Forward Coarse Home
X Rear Fine Home
X Forward Fine Home
X Rear Coarse Home
Signal
APL2
APL1
ASK7
ASK5
ASK6
ASK3
ASK4
0$&+,1(&21752//(5
%5($.287%2$5'6
6.40 Technical Reference Manual Chapter Issue 4 May 03

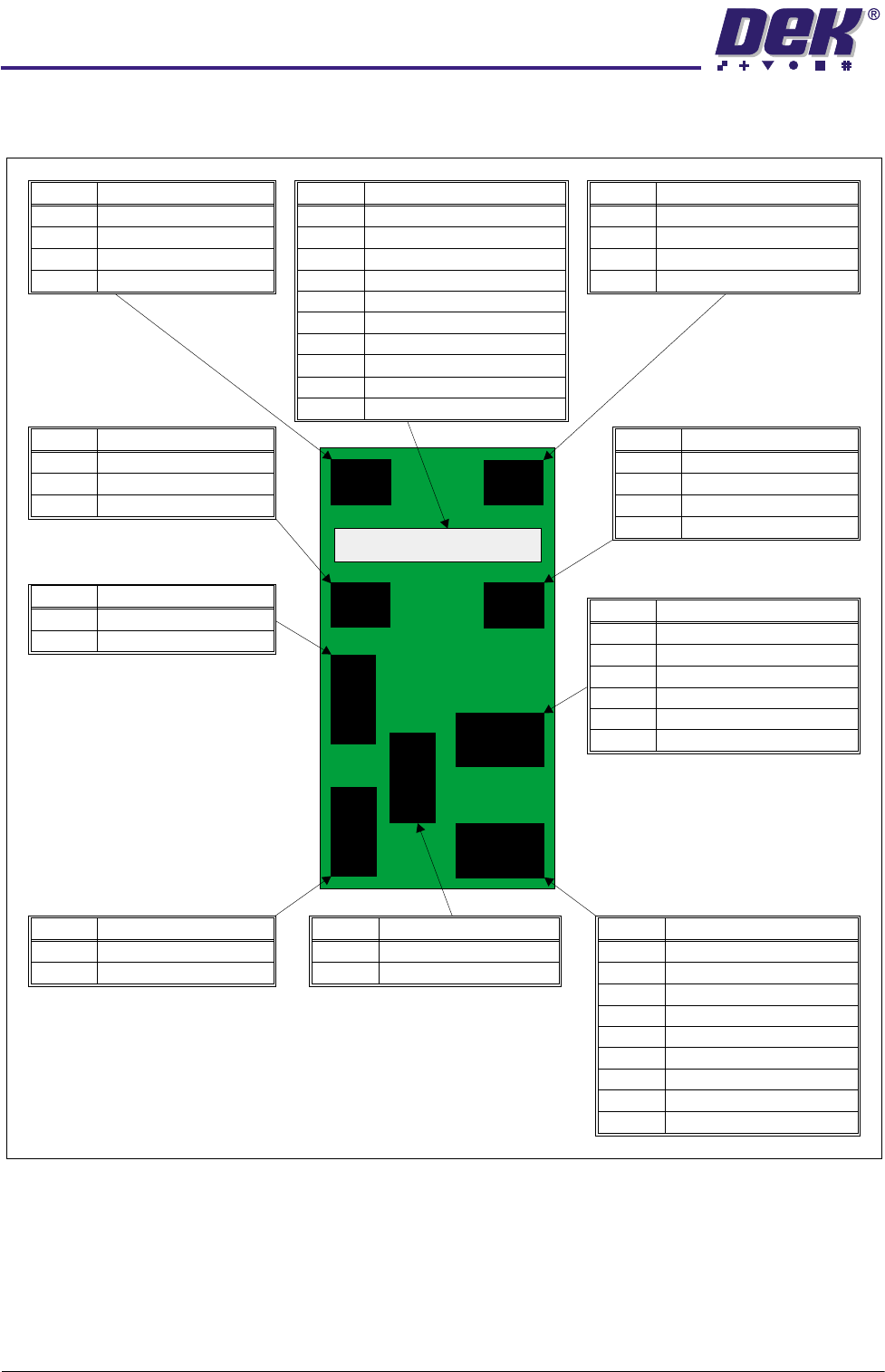

Breakout Board B
Pin No.
1
2
6-13
4
3
15
16
14
17
18-25
Board At Left
FGT Board Stop Extended
Spare
Board At Stop
Spare
Board Stop Extended
+12V
Board At Right
0V
FGT Frame Fitted
Signal
Pin No.
1
2
5
4
3
7
8
6
9-12
Table Brake
ProFlow Paste Pressure
Paste Dispense Solenoid
Solvent Tank Pressure
Lid Bolt
0V
Cleaner Vacuum Power
AutoFlex Tooling
Vacuum Tooling
Signal
Pin No.
1,4
2,5
3
+12V
Spare
0V
Signal
Pin No.
1,4
2
3,6
5
+12V
FGT Frame Fitted
0V
FGT Board Stop Extended
Signal
Pin No.
1,4
2
3,6
5
+12V
Board At Left
0V
Board At Right
Signal
Pin No.
1,4
2
3,6
5
+12V
Board At Stop
0V
Board Stop Extended
Signal
Pin No.
1
2
Table Brake
0V
Signal
Pin No.
1
2
Vacuum Tooling
0V
Signal
Pin No.
1
2
Cleaner Vacuum Power
0V
Signal
Pin No.
1
2
5
4
3
6-10
ProFlow Paste Pressure
Paste Dispense Solenoid
0V
AutoFlex Tooling
Solvent Tank Pressure
Lid Bolt
Signal
BPL1
BSK3
BSK4
BSK5
BSK6
BSK10
BPL2
BSK7
BSK9
BSK8
0$&+,1(&21752//(5
%5($.287%2$5'6
Chapter Issue 4 May 03 Technical Reference Manual 6.41

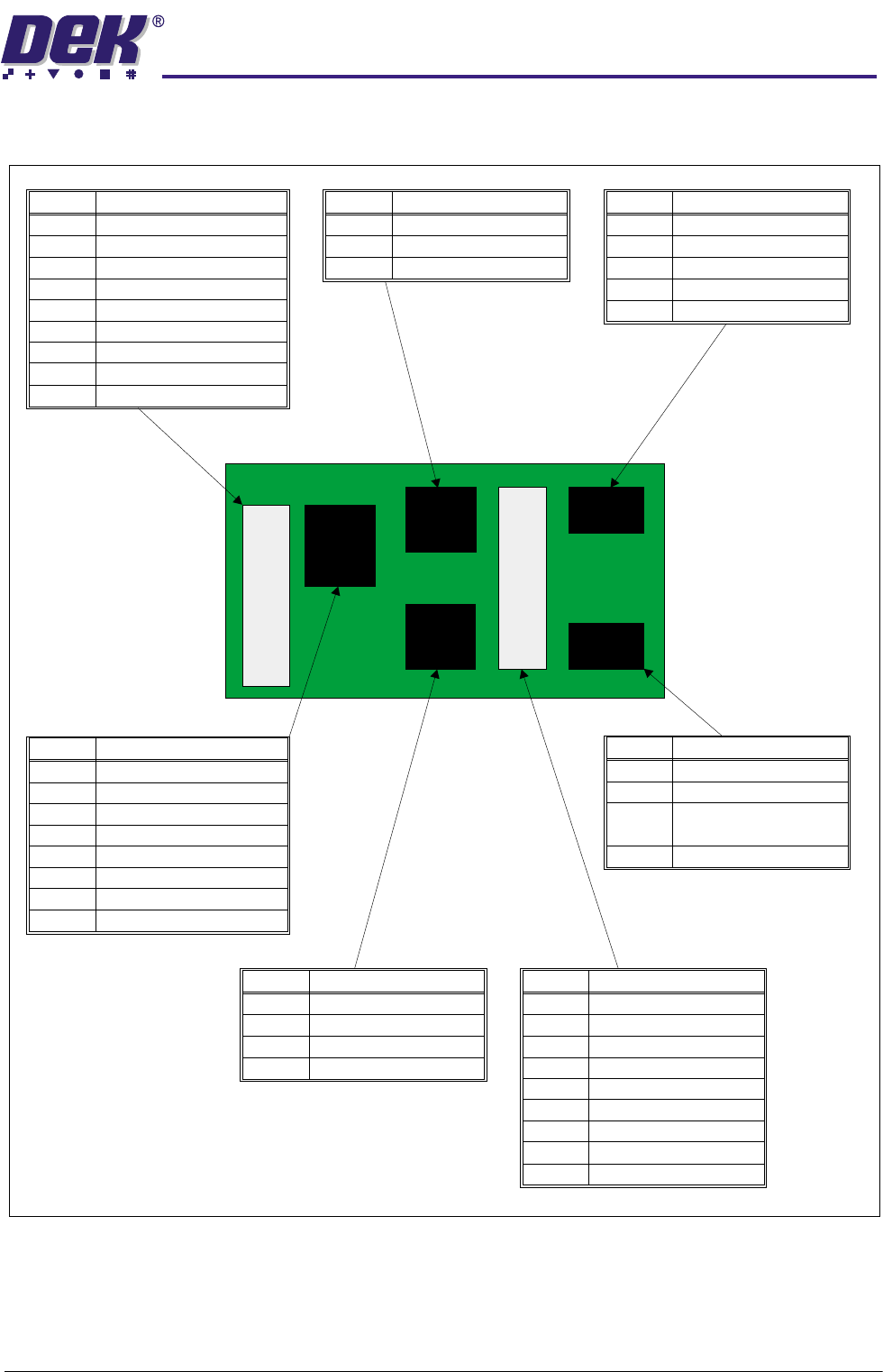

Breakout Board C
Pin No.
1
2
6-13
4
3
15
16
14
17
18-25
Solvent Low
Cover Interlock
Head Open
Jog Left
Power On Monitor
Jog Right
+12V
Paper Low
0V
Cleaner Home
Signal
Pin No.
1
2
5
4
3
7
8
6
9-12
Belt Motor #1 +
Belt Motor #4 -
Solvent Pinch Valve
Paper Feed Motor
Cartridge Tilt Motor -
0V
Belt Motor #1 -
Cartridge Tilt Motor +
Belt Motor #4 +
Signal
Pin No.
1
2,4
3
Solvent Pinch Valve
0V
Paper Feed Motor
Signal
Pin No.
1
2
3
+12V
Cleaner Home
0V
Signal
Pin No.
1
2
3
4
Belt Motor #1 +
Belt Motor #2 -
Belt Motor #4 +
Belt Motor #4 -
Signal
Pin No.
1
2
3
4
Cartridge Tilt Motor +
Cartridge Tilt Motor -
Paste Roll Lamp
0V
Signal
Pin No.
1,4
2
3,6
5
+12V
Solvent Low
0V
Paper Low
Signal
Pin No.
1
2
24V US
0V
Signal
Pin No.
1
2
Paste Roll Lamp
Switch
Signal
Pin No.
1
2
5
4
3
6
Cover Interlock
Jog Left
0V
Power On Monitor
Jog Right
Head Open
Signal
CSK7
CPL1
CPL3
CSK7
CSK9
CSK5
CSK4
CSK8
CSK10
CPL2
CSK6
