0$&+,1(&21752//(5
&$1%86
6.18 Technical Reference Manual Chapter Issue 4 May 03
CAN BUS The Controller Area Network (CAN) is a bus system for machine motion control.
A transceiver for the 1Mbaud rate CAN serial link is fitted to the NextMove card
to enable communication with the two MultiMove cards. The CAN is a 2-wire
data link designed for transmission of small data packets for fast update of axis
position information.
The CAN is presented on two shielded RJ - 45 sockets.
Figure 6-13 CAN Bus Connector
Signal Function RJ-45 Pin
CAN+ CAN Data Signal 1
CAN- CAN Data Signal 2
CAN V+ Power to the CAN Nodes 5
GND Chassis Connection 4
Chassis Screen Pin
N/C No Connection 3,6,7,8
Chassis 360 Degree Cable Screen Shell
1
8
0$&+,1(&21752//(5
08/7,029(
Chapter Issue 4 May 03 Technical Reference Manual 6.19
MULTIMOVE Two MultiMove cards fitted in slots X12 and X13, control the outputs and inputs
for the upline and downline machine interface (MIU), data collection from and
to machine sensors and provide drive to the 24V motors, screen clamps, air
valves and solenoid devices. The cards are controlled by the Controller Area
Network (CAN) with provision for a third card if required. X12 is 24Vdc switched
X13 is 24Vdc unswitched, this card remains on during an emergency stop to
enable control of certain functions eg, board stop and board clamp release etc.
Card Features The MultiMove cards each have the following features:
• Eight 2A source-sink (totem) drivers for PWM control.
• Eight 2A source drivers.Sixteen opto-isolated digital inputs with LED status
indication.
• Sixteen opto-isolated digital inputs with LED status indication.
• Remote operation via a 1Mbit/s serial communication link (CAN BUS).
• Error indication of faults on output circuits.
• Isolation of µ processor circuit from power drivers.

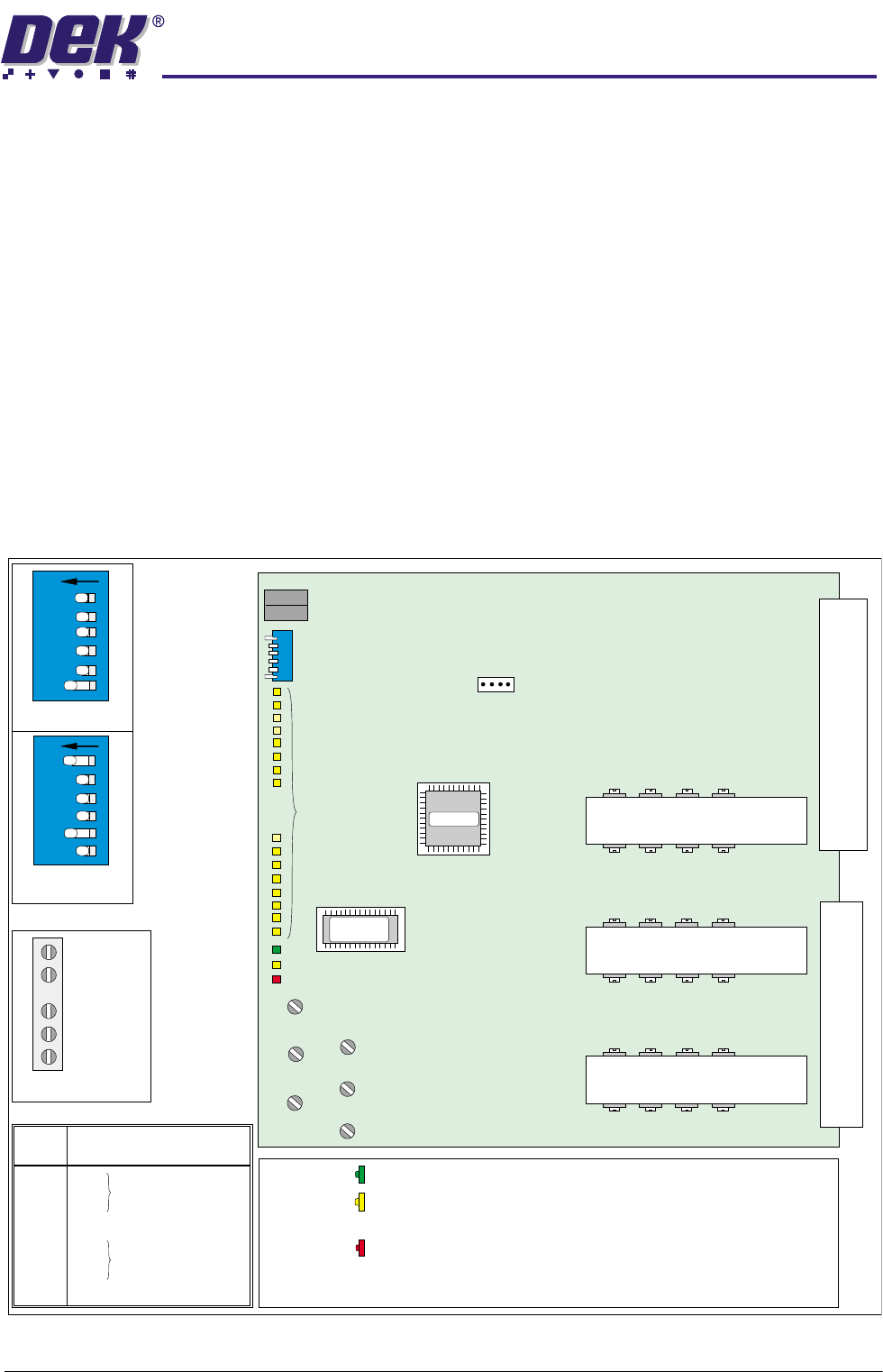

Figure 6-14 MultiMove Card Layout
LED
Indications
Green LED -
+5V Power is being supplied to the microprocessor.
Yellow LED -
LED lights momentarily to indicate that the
microprocessor is being addressed via the CAN.
Red LED -
LED flashes at 1Hz rate. Communications over the
CAN have failed or an error has been detected on
an output channel.
U219
U217 U223 U221
SOURCE OUTPUT DRIVERS
(ALONG HEAT SINK)
U220 U218
U224 U222
U200 U202 U204 U206
U201 U203
U205
U207
MICROPROCESSOR
(green)
+5V
(red)
ERR
(yellow)
CAN
TPX16
VCC
TPX17
VPOWR
TPX18
VISOL
TOTEM OUTPUT DRIVERS
U208
U210 U212
U214
U209
U211
U213
U215
TOTEM OUTPUT DRIVERS
IN 8
IN 9
IN A
IN B
IN C
IN D
IN E
IN F
DIG I/P STATUS
Yellow LEDs
TPX20
GND
TPX15
SWPWR
TPX19
GNDISOL
EEPROM
IC 10
IC 8
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 0
JP11
Bit Switches
(Note the different
configurations)
RJ - 45 CAN Connectors
MultiMove X13
MultiMove X12
12
3
4
56
ON
12
3
4
56
ON
Microprocessor
Power
Test
Point
Voltage
TPX20
TPX16
TPX17
TPX18
TPX19
TPX15
0V
5V
24V
5V
0V
24V SW
TP 20
TP 16
TP 17
TP 18
TP 19
Early Test Points
0$&+,1(&21752//(5
08/7,029(
6.20 Technical Reference Manual Chapter Issue 4 May 03
MultiMove Block
Diagram
The MultiMove cards are controlled via the CAN network by the NextMove
cards.
Figure 6-15 MultiMove Interface
NOTE
1. JP1 is a link to DIG IN 9 and it is fitted to the MultiMove Backplane. The
machine software interrogates this function and determines the correct machine
software to run. This link should not be removed.
2. See the MultiMove tables for a complete listing of the MultiMove inputs and
outputs.
CAUTION
ANTI-STATIC HANDLING.
Standard precautions must be adhered to when
handling electronic cards and configuring and inserting into the enclo-
sures.
Single Board Computer
ISA BUS
NextMove
NextMove Breakout
CAN
Controller Area Network
Peripheral I/O Control
MultiMove X12
MultiMove X13
24V US
24V _SW
+12V_US
5V LOGIC
MIU
Upline/Downline
Machine
Machine
Software I/P
JP1
See
Note 1
16 I/P’s 8 O/P’s 8 O/P’s
16 I/P’s 8 O/P’s 8 O/P’s
SK13B
SK13A
SK12B
Source 0
P8
Rising Table Brake
SK12A
Source 0
to Source 7
Totem 0
to Totem 7
IN0 to INF
