2 Operating safety User Manual - Productivity Lift 2.2 Warning signals and warning and danger symbol s on the Productivity Lift Edition 02/2004 28 Fig. 2 - 18 Warning sticker W206 on the inside of the service doors, elec…
User Manual - Productivity Lift 2 Operating safety
Edition 02/2004 2.2 Warning signals and warning and danger symbols on the Productivity Lift
27

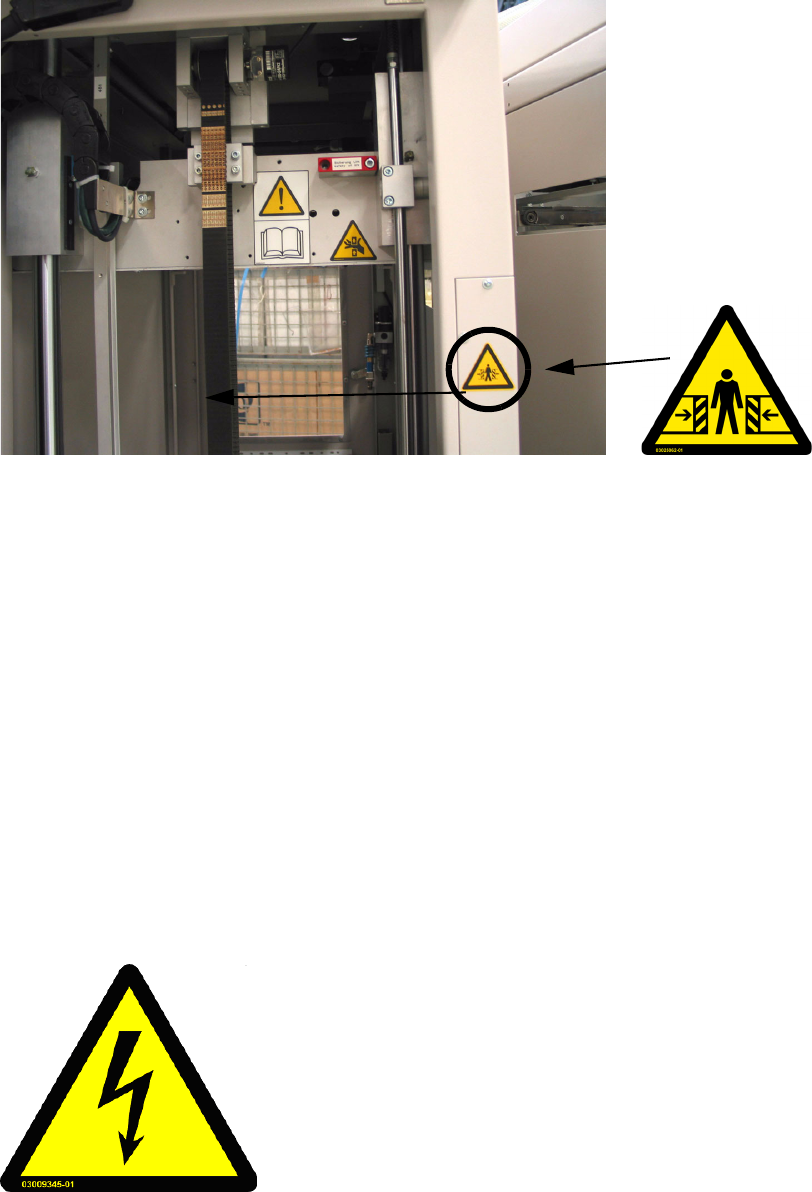

Fig. 2 - 16 Warning sticker W217 on the lift frame, service door opened
2.2.3.5 Warning sticker W 206
Article-No.: 03009345-01
Sticker position: on the Productivity Lift, on the casing of the electrical components on
the inside of the service doors.
– Power input, transformer
– Terminal field.
– Mains switch.
– Above the transformer- terminal block, secondary winding
Amount per machine: 4
Category: WARNING
Fig. 2 - 17 Warning sticker W206, Art-No. 03009345-01
Electrical (CAUTION)!
Parts labelled with this sticker are also live when the main switch
is switched off.
Disconnect the machine from the mains before commencing any
service work!
NAFTA-Region: Risk Of Electric Shock Or Burn.
2 Operating safety User Manual - Productivity Lift
2.2 Warning signals and warning and danger symbols on the Productivity Lift Edition 02/2004
28

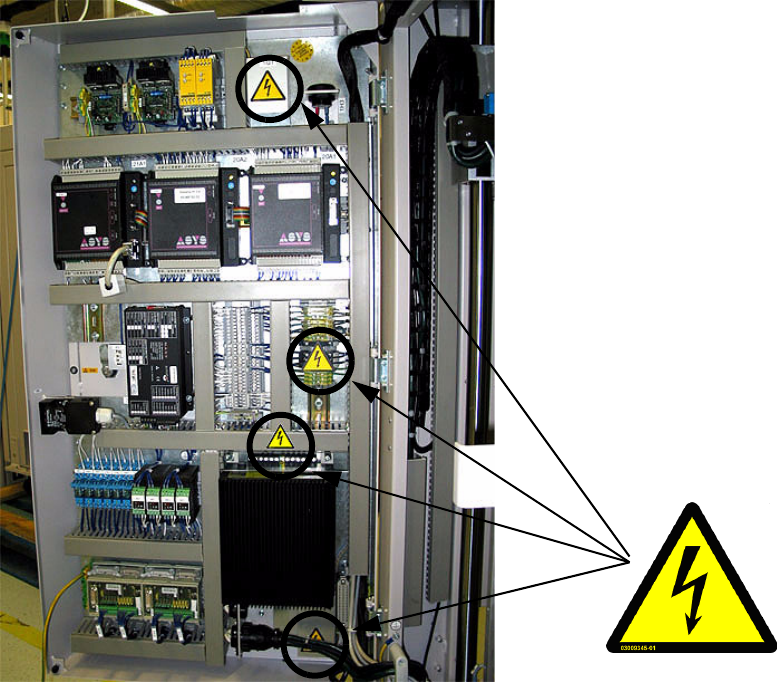

Fig. 2 - 18 Warning sticker W206 on the inside of the service doors, electrical components
User Manual - Productivity Lift 2 Operating safety
Edition 02/2004 2.2 Warning signals and warning and danger symbols on the Productivity Lift
29
2.2.3.6 Instruction sticker - ESD earth bonding point
Article-Nr.: 0359574-01
Sticker positions: on the Productivity Lift, on the inside of the service door
Amount per machine: 1
Category: NOTE
Fig. 2 - 19 Instruction sticker-EBP Art-No. 0359574-01
EBP earth bonding point ESD-Arm-band
The ESD arm-band being use must be technically in good order and must possess the minimum
specified resistance. This is the responsibility of the operating company.
Fig. 2 - 20 Inside of the service door: Bonding point for ESD arm-band
