5.5 Wait time track 2 Software version V 43.140 Edition April 2006

5.5 Wait time track 2

This function is to try to ensure that both tracks are occupied so that 2 PCBs can be transferred

simultaneously to the pick and place machine.

Since the PCBs arrive at different times, then a wait time is set in this menu which begins on arrival

of the first PCB. If the second PCB does not arrive on the other track before this time has elapsed,

then the first PCB is handed over alone to the pick and place machine.

If the wait time is set to „0“ the PCB which arrives first will be immediately handed over to the pick

and place machine.

1 unit has a value of [0,01s] and can be set within the range 0 to 9999.

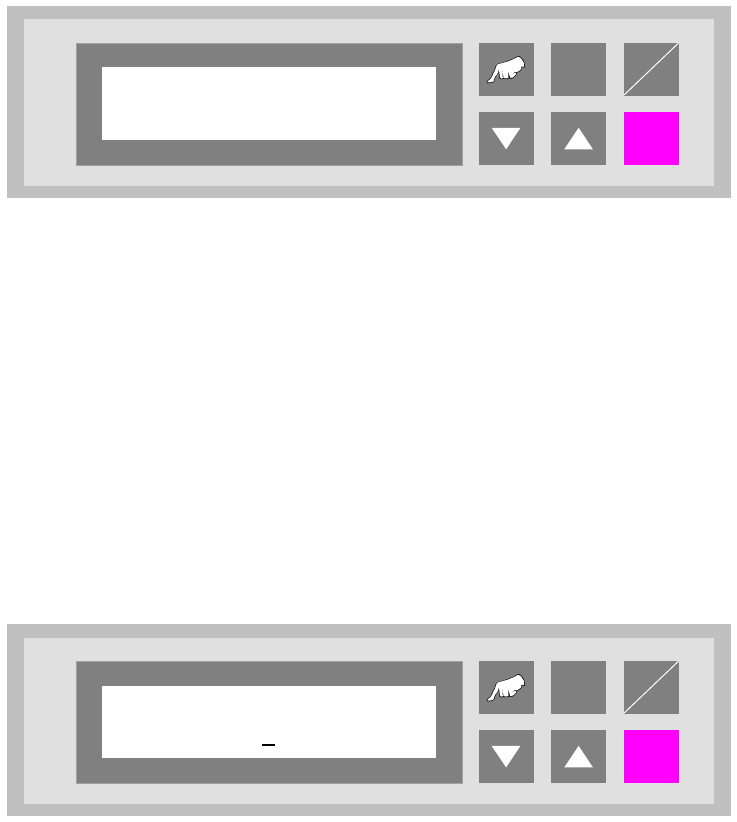

Fig. 5 - 5 Wait time track 2

5.6 Max. time un-belt

If a PCB has not been transferred from the conveyor to the lift after the adjusted time, the auto-

matic operating mode is stopped and the error signal shows „PCB annuated”. The PCB is only

then transferred from the conveyor to the following lift when the error signal is confirmed with the

„Enter” cursor through the user.

The unit of the value is [s] and the adjustment area is 0s to 9999s, whereas the function is switched

off for the value 0s.

Fig. 5 - 6 Max. time un-belt

ALT

Enter

Start

Stop

Wait time track 2

1000

ALT

Enter

Start

Stop

Max. time un-belt
