2 Operating safety User Manual - Productivity Lift 2.2 Warning signals and warning and danger symbol s on the Productivity Lift Edition 02/2004 30 2.2.3.7 W arning sticker W 219, Emergency stop Article-No.: 03025800-01 S…
User Manual - Productivity Lift 2 Operating safety
Edition 02/2004 2.2 Warning signals and warning and danger symbols on the Productivity Lift
29
2.2.3.6 Instruction sticker - ESD earth bonding point
Article-Nr.: 0359574-01
Sticker positions: on the Productivity Lift, on the inside of the service door
Amount per machine: 1
Category: NOTE

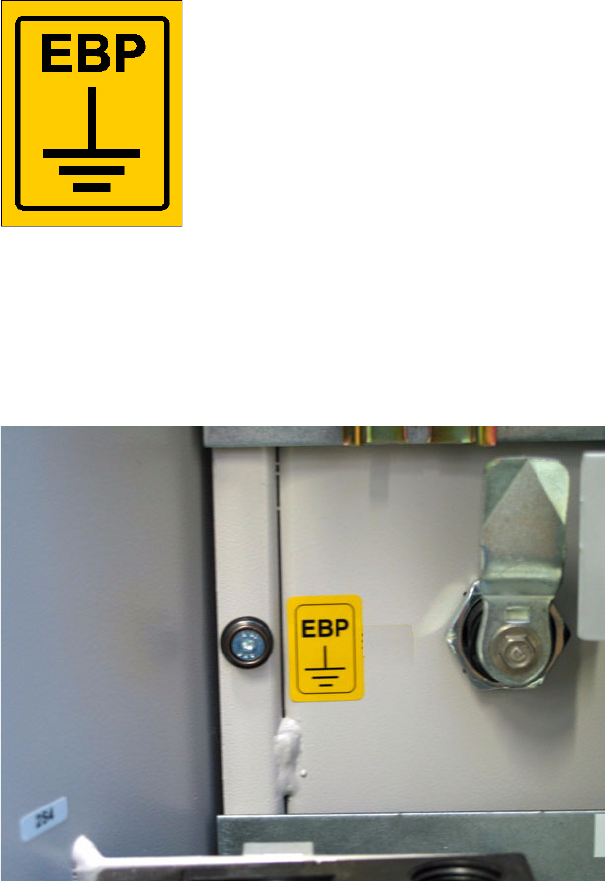

Fig. 2 - 19 Instruction sticker-EBP Art-No. 0359574-01
EBP earth bonding point ESD-Arm-band
The ESD arm-band being use must be technically in good order and must possess the minimum
specified resistance. This is the responsibility of the operating company.
Fig. 2 - 20 Inside of the service door: Bonding point for ESD arm-band
2 Operating safety User Manual - Productivity Lift
2.2 Warning signals and warning and danger symbols on the Productivity Lift Edition 02/2004
30
2.2.3.7 Warning sticker W 219, Emergency stop
Article-No.: 03025800-01
Sticker position: on the Productivity Lift
– On the emergency-stop switch on the operator and service side.
Amount per machine: 2
Category: WARNING
Fig. 2 - 21 Warning sticker W219, Art-No. 03025800-01
By pushing the button called the „Emergency-stop“, the emergency-stop function is activated. This
switches off the electrical driving power for dangerous movements, so that these movements are
immediately stopped. The lift brake is activated when the emergency-stop is pressed. The oper-
ating pressure of the Productivity Lift is however not completely turned off.
After releasing the emergency-stop switch, the procedure for a new start must be carried out.
User Manual - Productivity Lift 2 Operating safety
Edition 02/2004 2.2 Warning signals and warning and danger symbols on the Productivity Lift
31
2.2.3.8 Warning sticker W 218, Emergency-stop
Article-No.: 03025063-01
Sticker position: on the Productivity Lift
– On the emergency-stop switch on the operator and service side.
Amount per machine: 2
Category: WARNING

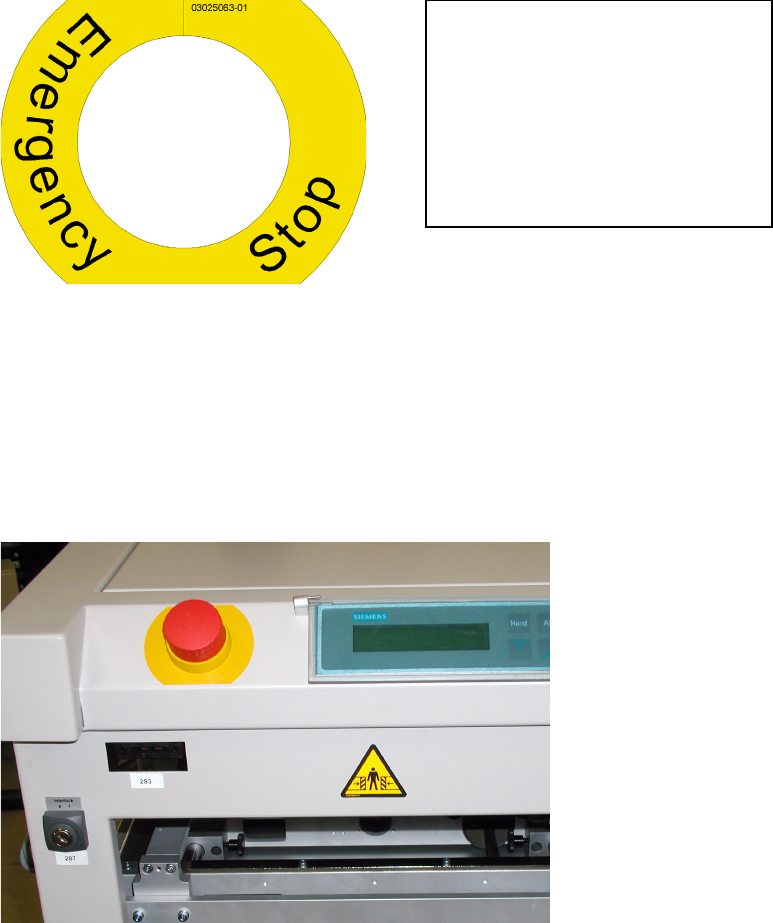

Fig. 2 - 22 Warning sticker W218, Art-No. 03025063-01
By pushing the button called the „Emergency-stop“, the emergency-stop function is activated. This
switches off the electrical driving power for dangerous movements, so that these movements are
immediately stopped. The lift brake is activated when the emergency-stop is pressed. The oper-
ating pressure of the Productivity Lift is however not completely turned off.
After releasing the emergency-stop switch, the procedure for a new start must be carried out.
Fig. 2 - 23 Labelling of the Emergency-stop button on the operator side of the lift
Warning sticker W 218 is only neces-
sary for the countries of delivery,
USA, Mexico, Canada and Australia
and replaces the standard available
yellow ring warning sticker W219.
