User Manual - Productivity Lift Soko 00166631-01 / 12031477 6 Set-up mode
Software version V 43.140 Edition April 2006 6.8 PCB take over / PCB hand over
75
6.8 PCB take over / PCB hand over
With these set up possibilities it is for example possible to take a feeder out of the line, if the PCB
handover at the first lift and the PCB takeover on the second lift are switched off. The PCBs will
now only be transferred over the lower conveyor to the next lift.
6.8.1 PCB take over
The set up possibilities for the take over of PCBs at the inlet of the upper transport level. The fol-
lowing settings are possible:
Track 1 : PCBs are only taken over on track 1 of inlet 1.
Track 2 : PCBs are only taken over on track 2 of inlet 1.
Double track : PCBs are taken over on both tracks of inlet 1.

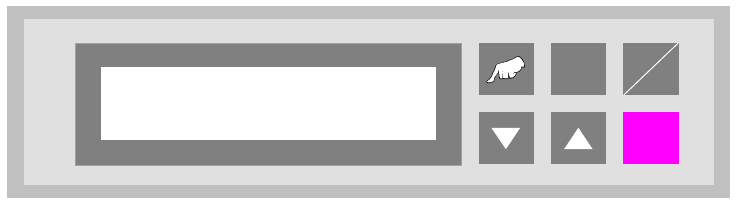

Fig. 6 - 13 PCB take over
ALT
Enter
Start
Stop
PCB take over
Double track
6 Set-up mode User Manual - Productivity Lift Soko 00166631-01 / 12031477
6.9 PCB inspection 1 Software version V 43.140 Edition April 2006
76
6.8.2 PCB hand over
The set up possibilities for the hand over of PCBs at the outlet of the upper transport level. The
following settings are possible:
Track 1 : PCBs are only handed over on track 1 of outlet 1.
Track 2 : PCBs are only handed over on track 2of outlet 1.
Double track : PCBs are handed over on both tracks of outlet 1.

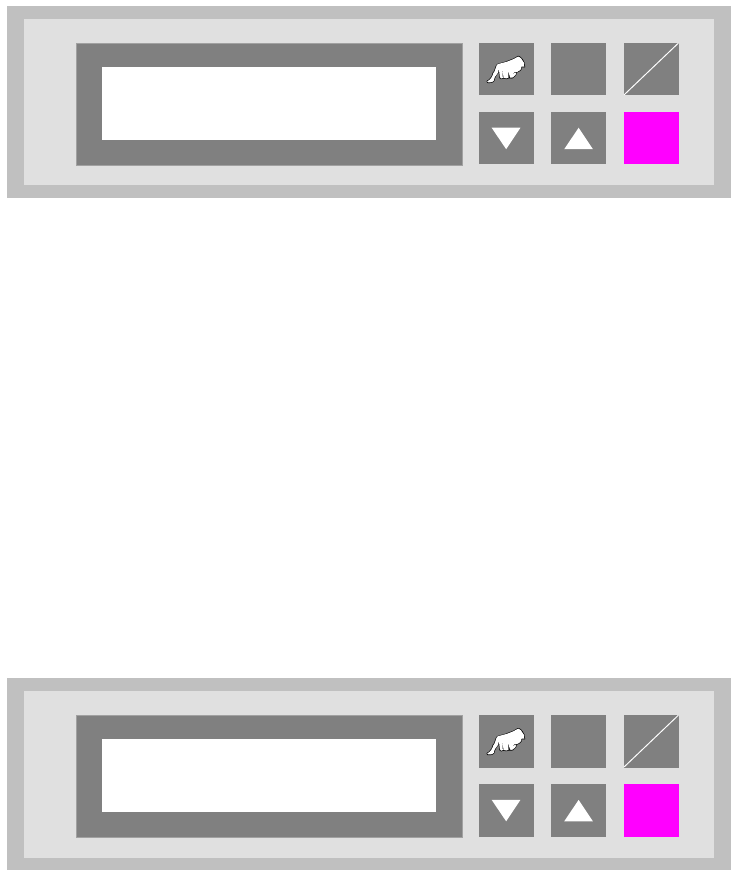

Fig. 6 - 14 PCB hand over
6.9 PCB inspection 1
This feature allows to inspect a PCB on the transport modul placed before the Productivity Lift.
This feature can be enabled for an input or cluster module. The PCB inspection 1 will be con-
ducted on track 1. The entered value defines the control cycle. The value can be set between 0-
99.
Value „0”: Function disabled
Value „1”: Each PCP is stopped
Value „3”: Every third PCB is stopped.
Fig. 6 - 15 PCB inspection 1
ALT
Enter
Start
Stop
PCB hand over
Double track
ALT
Enter
Start
Stop
PCB inspection 1
0 … 99
User Manual - Productivity Lift Soko 00166631-01 / 12031477 6 Set-up mode
Software version V 43.140 Edition April 2006 6.10 PCB inspection 2
77
If the feature is enabled, the display shows „inspection track 1”.

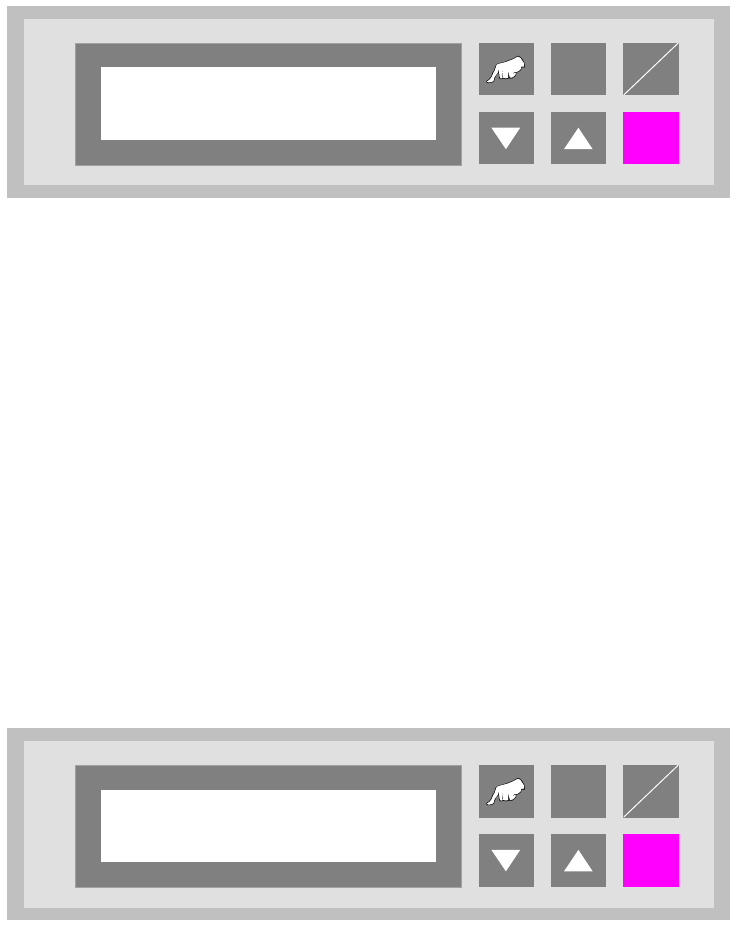

Fig. 6 - 16 Inspection track 1
The PCB transport goes on, if the procedure was quit with the „Enter”- key.
6.10 PCB inspection 2
This feature allows to inspect a PCB on the transport module placed before the Productivity Lift.
This feature can be enabled for an input or cluster module. The PCB inspection 2 will be con-
ducted on track 2. The entered value defines the control cycle. The value can be set between 0-
99.
Value „0”: Function disabled
Value „1”: Each PCP is stopped
Value „3”: Every third PCB is stopped.
Fig. 6 - 17 PCB inspection 2
ALT
Enter
Start
Stop
Unit runs
Inspection track 1
ALT
Enter
Start
Stop
PCB inspection 2
0 … 99
