5 Configuration User Manual - Productivity Lift Soko 00166631-01 / 12031477
5.17 Reference width 2 Software version V 43.140 Edition April 2006
58
5.17 Reference width 2
This setting defines the reference width of the Underfloor Conveyor. This setting allows the match-
ing of displayed width and actual width of the Underfloor Conveyor. By changing the setting the
width is increased or decreased. A typical value is between 0480 - 0490.
This menu item is only available, if the function „Width adjustment 2” is activated (chapter 5.13).
The standard configuration is equipped with an automatic width setting of the Underfloor Con-
veyor.
NOTE
If the lift is implemented as an end module, this menu does not appear.
The unit of value is [0.1mm].

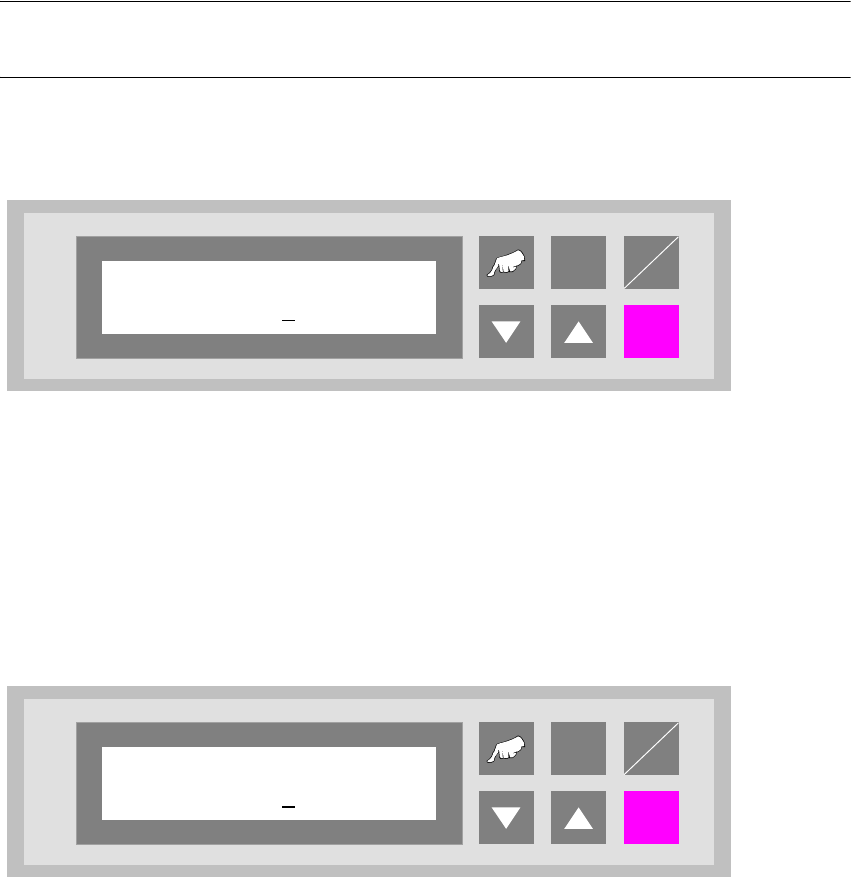

Fig. 5 - 17 Reference width 2
5.18 Max. width board
Here the maximum transport width permissible for the system is set. The unit of value is [0.1mm].
The setting range is between 500 and 4600, which corresponds to a width of 50mm to 460mm.
Fig. 5 - 18 Max. width board
ALT
Enter
Start
Stop
Reference width 2
0490
ALT
Enter
Start
Stop
Max. width board
4600
User Manual - Productivity Lift Soko 00166631-01 / 12031477 5 Configuration
Software version V 43.140 Edition April 2006 5.19 Start speed down
59
5.19 Start speed down
The speed at which the lower lift starts up when travelling downwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 23% and 27%. The
default setting are 25%.
Fig. 5 - 19 Start speed down
5.20 Start speed up
The speed at which the lower lift starts up when travelling upwards and which is reverted to by
braking just before reaching the final position.
The setting is a percentage of the motor rating. The value should be between 20% and 25%. The
default setting are 20%.
Fig. 5 - 20 Start speed up
ALT
Enter
Start
Stop
Start speed down
025
ALT
Enter
Start
Stop
Start speed up
020
5 Configuration User Manual - Productivity Lift Soko 00166631-01 / 12031477
5.21 Travelling speed Software version V 43.140 Edition April 2006
60
5.21 Travelling speed
The speed at which the lower lift travels between the two final positions. The value to be entered
is a percentage value of the entire motor output.
The setting is a percentage of the motor rating. The default setting are 80%.
Fig. 5 - 21 Travelling speed
5.22 Run out time down
A time that can be set to secure the positioning of the lower lift in its final lower position. This guar-
antees that the lift has reached its final position before a PCB is transferred or delivered.
The unit of value is [0.01s]. The default setting are 002.
Fig. 5 - 22 Run out time down
ALT
Enter
Start
Stop
Travelling speed
080
ALT
Enter
Start
Stop
Run out time down
002
