4 Setting up and commissioning User manual SIPLACE X-Series 4.2 Delivery configuration and transport Sof tware Version SR.601.xx 11/2005 US E dition 176 4.2.3 T ransporting the pla cement mac hine in th e crate 4.2.3.1 S…
User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.2 Delivery configuration and transport
175
4

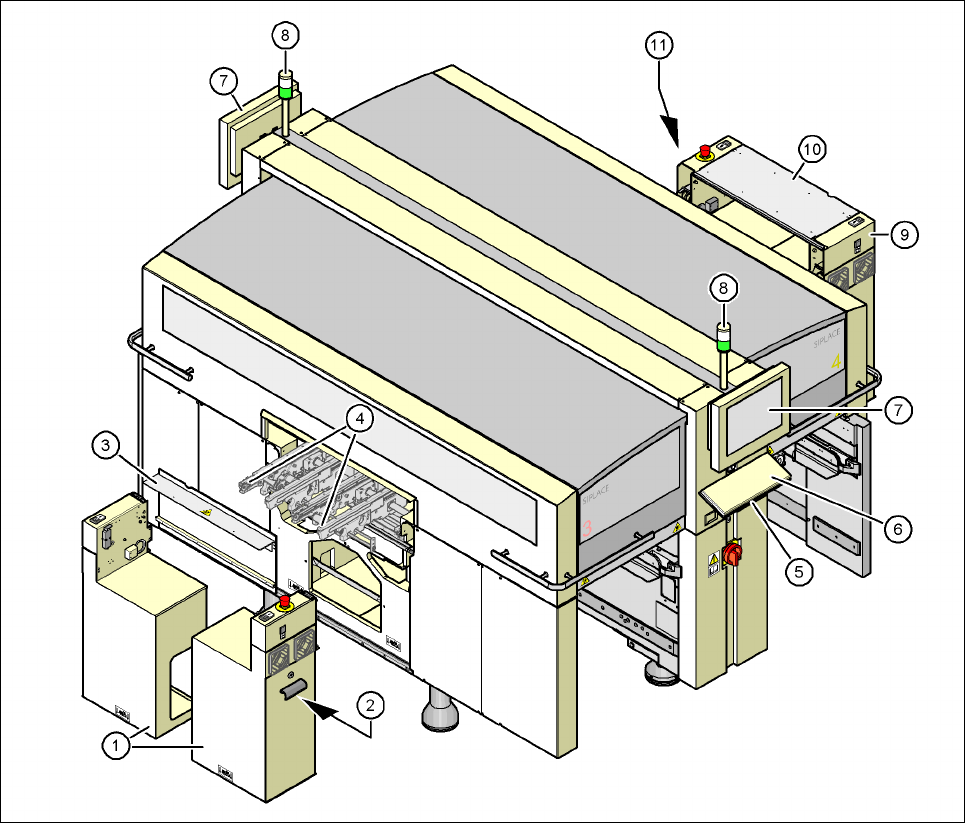

Fig. 4.2 - 2 Machine in the as-delivered configuration
(1) Extension kit on the PCB output side - Removed and dismantled for delivery
(2) Axis unit on the PCB output side - X4: gantries 2 and 3, X3: gantry 3, X3: gantries 1 and 3
(3) Conveyor cover
(4) Output conveyor
(5) Keyboard supporting plate
(6) Keyboard
(7) Monitor
(8) Main fault indicator
(9) Computer unit on the PCB input side
(10) Extension kit on the PCB input side - may be removed if necessary
(11) Axis unit on the PCB input side - X4 and X3: gantries 1 and 4
4 Setting up and commissioning User manual SIPLACE X-Series
4.2 Delivery configuration and transport Software Version SR.601.xx 11/2005 US Edition
176
4.2.3 Transporting the placement machine in the crate
4.2.3.1 Services
SIEMENS A&D can fully integrate the X-series placement machines into your production line as
a service to you. With our extensive expertise and by using the right tools and equipment, we can
ensure that the installation process runs smoothly and efficiently. However, this will require you to
clarify the infrastructure aspects in advance and make any necessary changes at your production
facility.
Please note that the safest way to transport the placement machine is always in the transport crate
- or at the very least on the pallet. This will prevent serious damage to the machine caused by the
feet colliding with obstacles, for example.
4.2.3.2 Safety instructions
WARNING 4
– The applicable accident prevention regulations concerning the transportation of heavy goods
must be followed.
– There is a risk that the machine will tip over if you do not use the fork-lift specified in section
4.2.3.3
to transport the placement machine.
– In particular, you should wear safety boots to minimize the risk of crushing your feet.
4.2.3.3 Means of transport
A fork-lift truck with the following specification will be needed to carry the machine on the pallet or
in its crate:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm 4
4
User manual SIPLACE X-Series 4 Setting up and commissioning
Software Version SR.601.xx 11/2005 US Edition 4.2 Delivery configuration and transport
177
4.2.3.4 Fork-lift attachment points on the transport crate or pallet
Attach the fork-lift only at the points identified by (A) in Fig. 4.2 - 1. We recommend that you keep
the crate or the pallet for later use.
WARNING 4
If you still decide to transport the placement machine without a crate or pallet, you MUST follow
the instructions in the next section to avoid serious damage to your machine.
4
4
4
4.2.4 Transporting the placement machine without a crate or pallet
4.2.4.1 Safety instructions
WARNING 4
Æ The applicable accident prevention regulations concerning the transportation of heavy goods
must be followed.
Æ In particular, you should wear safety boots to minimize the risk of crushing your feet.
Æ Read this section in full before transporting the machine to avoid severe damage.
Æ When you are transporting the machine, make sure that all the feet are clear of the floor. If
they are not clear, the feet will drag along the floor and bump into obstacles. This could dam-
age the machine foot thread in the machine frame.
4.2.4.2 Means of transport
Use a fork-lift truck with the following specification to carry the machine:
Fork length Min. 1800 mm
Lifting power Min. 6000 kg
Distance between forks with the forks running parallel
to the direction of PCB transport
420 mm
Distance between forks with the forks running across
the direction of PCB transport
800 mm - 900 mm
