Getting Started with SIPLACE OIS 2 Overview: The user Interface

Software Version 13.1 05/2016 EN Edition

Example: Changing access level and entering password via the virtual keyboard 2

 Select the Options menu in the main view.

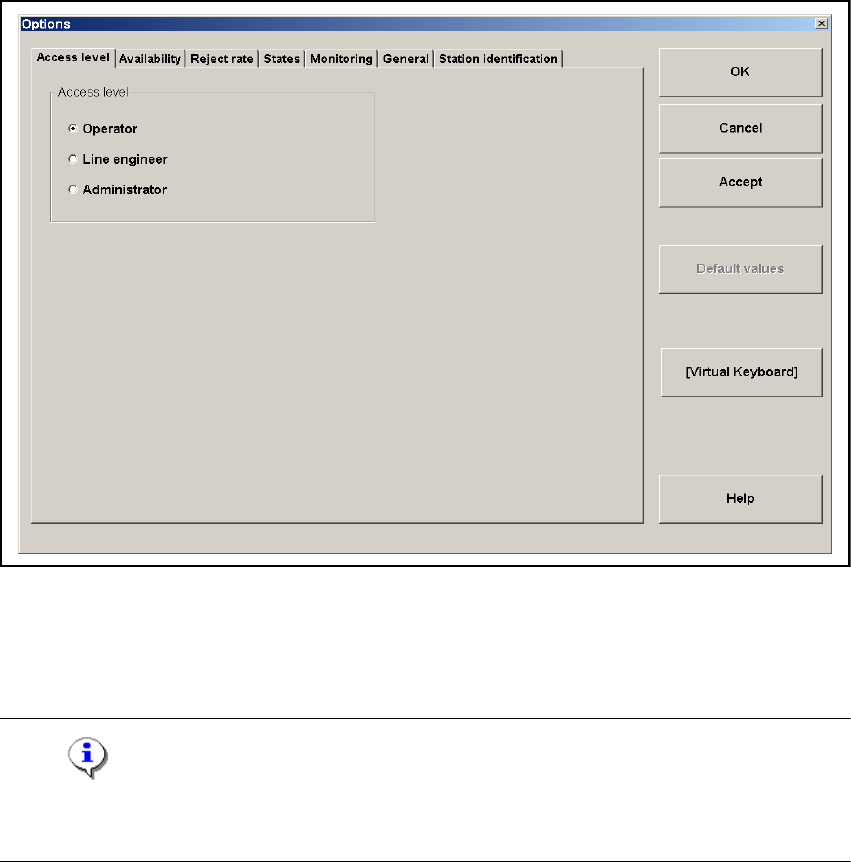

Fig. 2 - 3 Options menu

 Tap on the Virtual Keyboard button.

A virtual keyboard is displayed. 2

Note

The virtual keyboard has to be started before a manual entry is required. As soon as a prompt for

a manual entry is displayed, it cannot be started anymore. 2

2 Overview: The user Interface Getting Started with SIPLACE OIS

05/2016 EN Edition Software Version 13.1

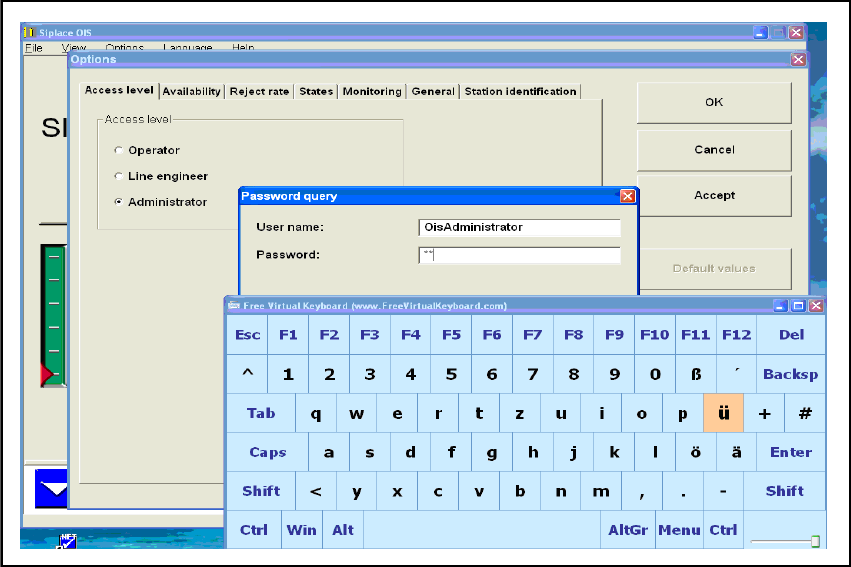

Fig. 2 - 4 Virtual keyboard

 Navigate to the Access level tab and activate the Administrator access level.

You will be prompted to enter the password. 2

 Touch the Password: entry field (to focus it) and type the password on the keyboard.

 Tap on Enter to take over the entry.

 Tap on the x button to close the virtual keyboard.

Getting Started with SIPLACE OIS 2 Overview: The user Interface

Software Version 13.1 05/2016 EN Edition

2.2 Main View – "Line/station" Selection

Fig. 2 - 5 "Line/station"selection

Legend

(1) Pick list of lines and stations

(2) Name of lot

(3) Name of the PCB

(4) Name of the setup

Description: 2

Beneath selection list (1) you will see the information block with details of the monitored line/

station. You cannot change anything in the information block. This is where you will find out the

name of the lot (2), the name of the PCB (3), and the name of the set-up (4). 2

The status bar shows the observation period (Fig. 2 - 1/Pos.6). 2

Action: 2

 Double-click the line and station that you want to monitor in the list (1).
