Familiarize yourself with the SIPLACE OIS user interface in this chapter. The user interface is
divided into the sections described below. For easier orientation, you can divide the user interface
into different functional units: 2
2

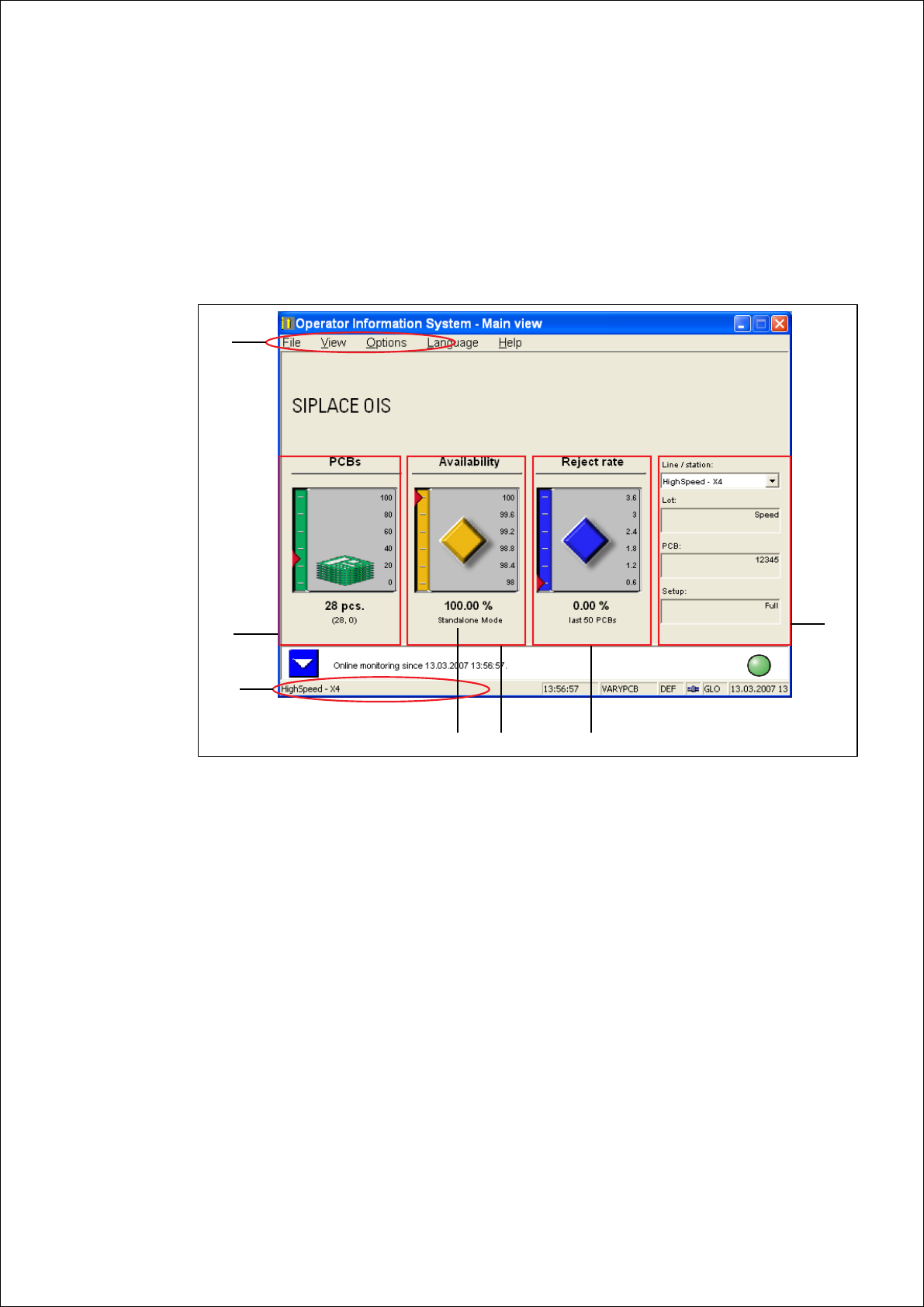

Fig. 2 - 1 The user interface
Legend
(1) Menu bar
(2) Selection menu and information block
(3) Current status description of the PCBs
Activate the "PCBs" dialog
(4) Current status description of the availability of the machine
Activate the "Availability" dialog
(5) Current status description of the pick-up reliability of the machine
Activate the "Hit lists" dialog
(6) Status bar
(7) Standalone Mode: Displays whether or not the station has activated the stand-alone mode.
1
2
3
6
4
5
7
2 Overview: The user Interface Getting Started with SIPLACE OIS
05/2016 EN Edition Software Version 13.1
8
Tip
You can always return to the main view or the preceding view by clicking the button. 2

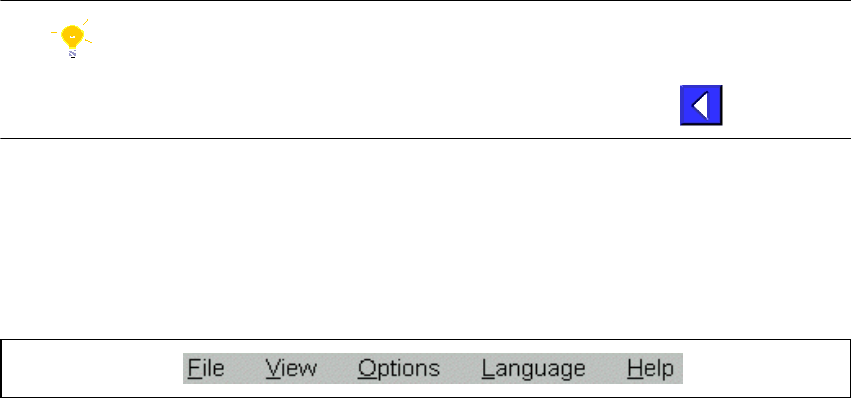

2.1 The Menu Bar
You can call all functions in the menu bar using pull-down menus. 2
Click the required menu, and the relevant pull-down menu is displayed. 2
Fig. 2 - 2 Menu bar
2.1.1 Virtual Keyboard
Most functions can be started without using the keyboard by touching the touch screen. However,
some functions as i.e. entering passwords, setting threshold values for availability and reject rate
or entering server names require a manual data entry by the operator. For this purpose, a virtual
keyboard is available on the screen. 2
Getting Started with SIPLACE OIS 2 Overview: The user Interface
Software Version 13.1 05/2016 EN Edition
9
Example: Changing access level and entering password via the virtual keyboard 2
Select the Options menu in the main view.
2
Fig. 2 - 3 Options menu
Tap on the Virtual Keyboard button.
A virtual keyboard is displayed. 2
Note
The virtual keyboard has to be started before a manual entry is required. As soon as a prompt for
a manual entry is displayed, it cannot be started anymore. 2
