2 Overview: The user Interface Getting Started with SIPLACE OIS
05/2016 EN Edition Software Version 13.1
12
2.3 Main View – "PCBs" View
2

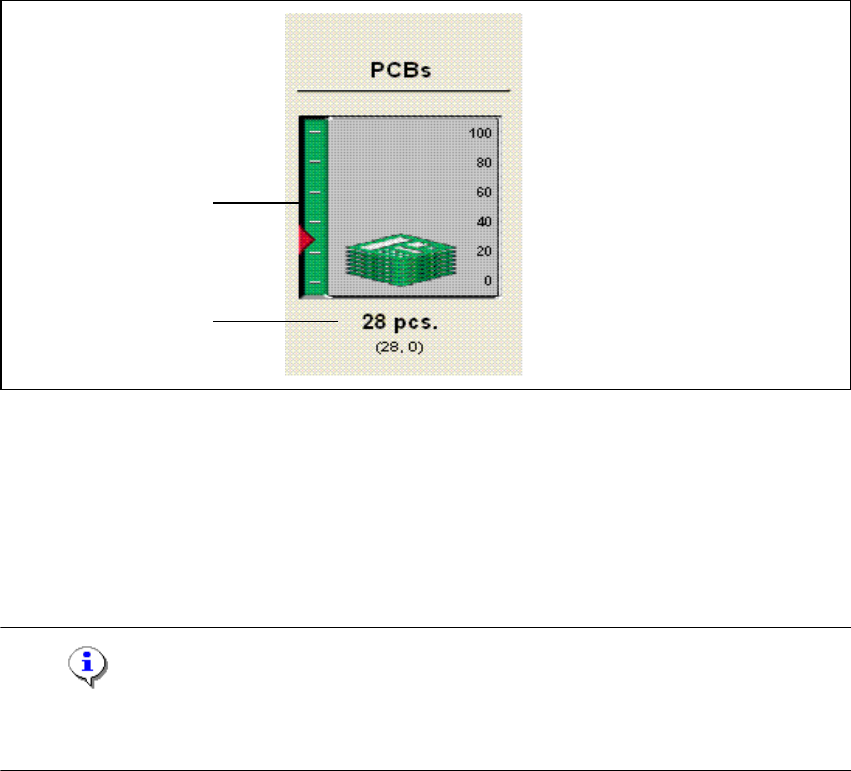

Fig. 2 - 6 PCBs
Legend
(1) Graphical representation of PCB numbers
(2) Number of PCBs
Indicates how many PCBs have already been assembled in the observation period. 2
Note
If the displayed scale value (here 100) is exceeded, the scale view is switched.
Scale units: 100, 200, 500, 1000, 2000, 5000 and 10000. 2
1
2
Getting Started with SIPLACE OIS 2 Overview: The user Interface
Software Version 13.1 05/2016 EN Edition
13
2.3.1 "PCBs" View
Click the PCBs button in the main view.
The following dialog appears: 2
2

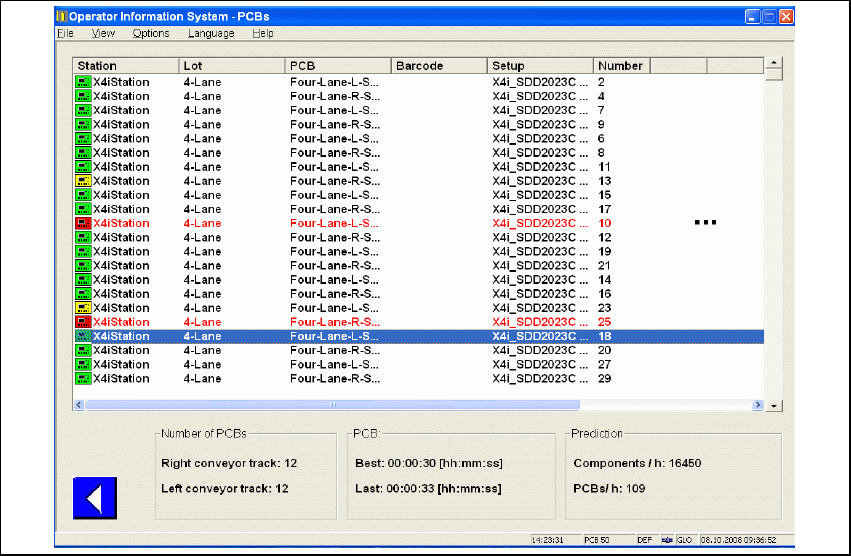

Fig. 2 - 7 "PCBs" dialog, part 1
2 Overview: The user Interface Getting Started with SIPLACE OIS
05/2016 EN Edition Software Version 13.1
14
2

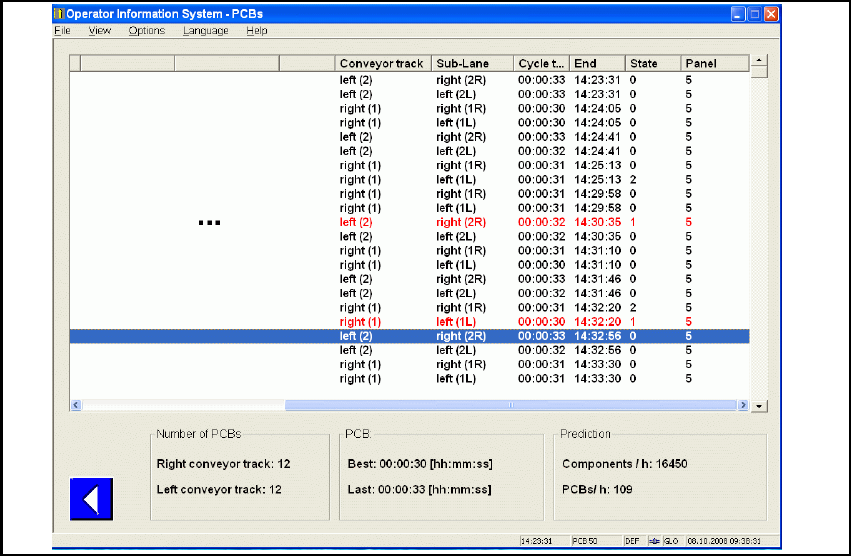

Fig. 2 - 8 "PCBs" dialog, part 2
All PCBs assembled in the observation period are shown in list form, together with the
corresponding performance figures. This representation immediately shows you how
modifications to the machine affect placement performance. 2
Description of columns: 2
Station The station on which the PCB was assembled. The icon to the left of the station
depicts the processing status of the board (see "Icons" below). 2
Lot Name of the lot 2
PCB Name of the board 2
Barcode PCB barcode, if available 2
Setup Current set-up 2
Number PCB number. If no PCB Barcode is present, the station automatically assigns
this value. 2
Conveyor track Conveyor lane (right, left) 2
Sub-Lane Sub lane in "Quad Lane" conveyor mode. 2
Build time How long it took to assemble the specified PCB. 2
