2.5.1 "Hit lists" View
Click the Reject rate button in the main view.
The following dialog appears: 2
2
Fig. 2 - 12 "Hit lists" dialog
The volume of errors is shown in the error message chart in relation to time. For example for the
component SWI-0031-002 at the station X4i_Station-1, 6 error messages are shown. 2
Note
The number of error messages does not always correspond to the number of rejected
components. A rejected component causes at least one but may also cause several error
messages. 2
Representation: 2
A red box is created on the bottom right of the error message chart for each error message. If the
last box is already red, it is entered in the next free line above. No more than 5 errors are
displayed. At intervals of some seconds, all boxes are moved leftward by one box width. The new
errors are then entered in the column at the right-hand margin. The view shows the time during
which several PCBs are assembled. If nozzle or feeder errors occur regularly, a repeating pattern
emerges. After the respective nozzle or feeder has been replaced, this pattern must no longer be
visible. 2
Single
click
2 Overview: The user Interface Getting Started with SIPLACE OIS
05/2016 EN Edition Software Version 13.1
24
Description of fields: 2
Component with greatest number of errors
Shows the three components for which the most error
messages are displayed. 2
Component shape with greatest number of errors
Shows the three component shapes for which the most error
messages are displayed. 2
Feeder with greatest number of errors
Shows the three feeders for which the most error messages
are displayed. 2
Segment with greatest number of errors
Shows the three segments for which the most error
messages are displayed. 2
2.5.1.1 Error Lists
Click the Error lists button in the "Hit lists" dialog.
The following dialog appears: 2
2

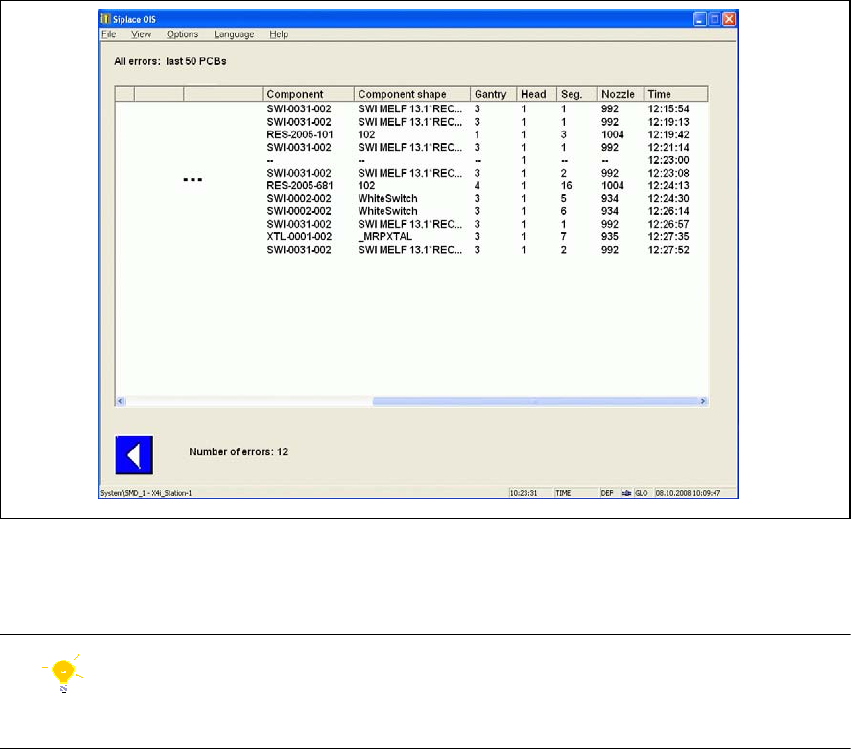

Fig. 2 - 13 Detailed view of error lists, part 1
Getting Started with SIPLACE OIS 2 Overview: The user Interface
Software Version 13.1 05/2016 EN Edition
25
2
Fig. 2 - 14 Detailed view of error lists, part 2
Here you will find an overview of the errors that were evaluated by SIPLACE OIS. 2
Tip
You can filter the error list by clicking an appropriate error in the "Hit lists" view (see Fig. 2 - 12).2
Description of columns: 2
Error No. In addition to the error text, each error is identified by a unique number.
This is the same number that is displayed on the station. 2
Error text Description of the error. 2
Table Number of the table or location. 2
Track Number of the track on which the feeder is set up. 2
Division Number of the division. 2
Tower Only for matrix tray changer: Number of the tower containing the tray. 2
Level For wafflepack changers and multi tray changers only: number of the
level on which the wafflepack magazine is located. 2
Component Description of the component. 2
Component shape Description of the component shape. 2
