Powerflow_zh | Re v. 4a Ersa Gm bH 497 / 561 9 | 11 00 18 5: EM155 - 10 - 11 - 00b A B 1 Lo ck 6V ER25 20 x 2 Hinge EMKA T ype 1 11 0 93 324 x 3 Safety glass plate without cutout, module 11 00 86 292 x 4 Lever e lement 8…
Powerflow_zh | Rev. 4a
Ersa GmbH
496 / 561
9 |
9.2.1
900

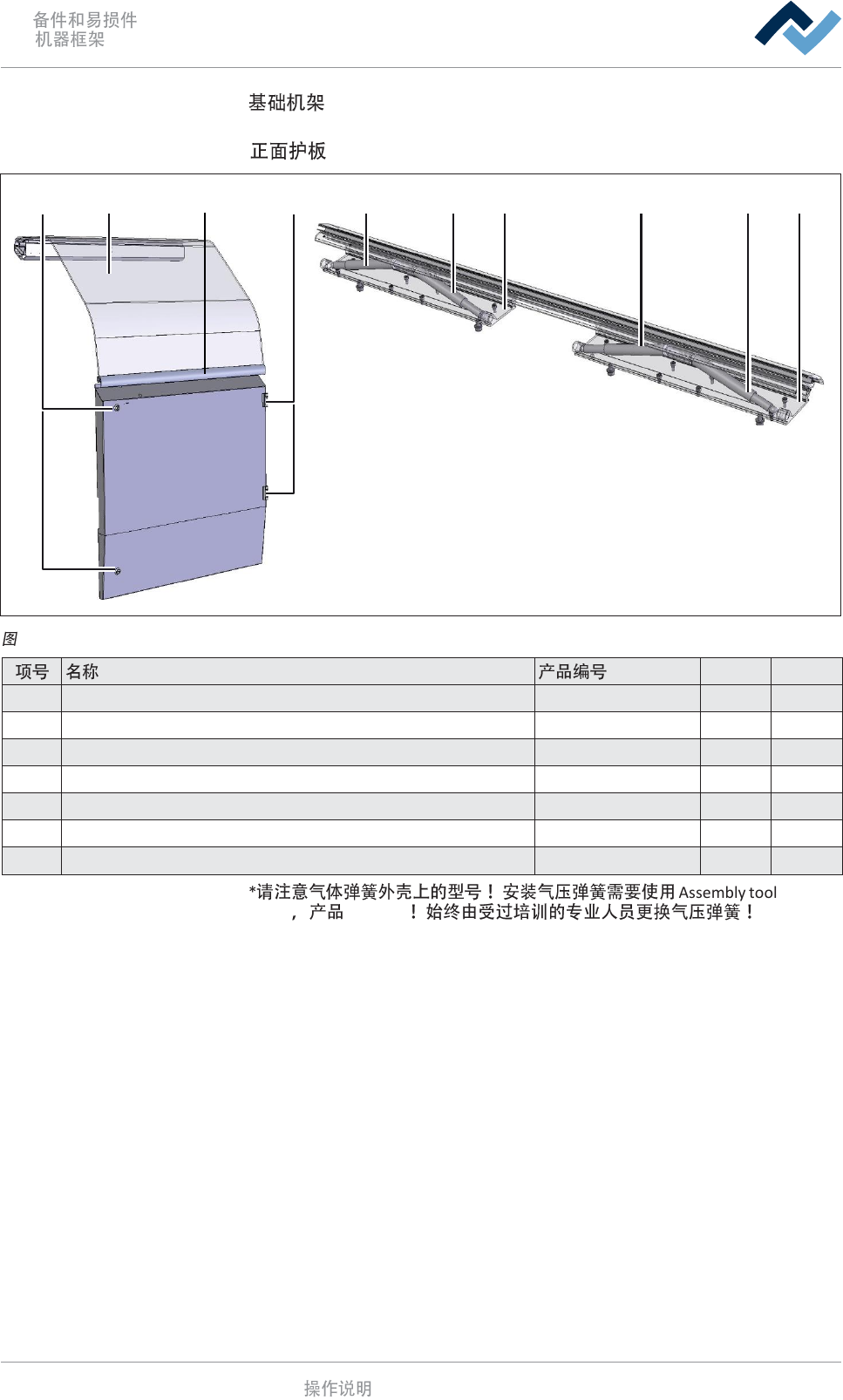

184: EM155-10-11-00a
A
B
1
Lock
6VER2520
x
2
Hinge EMKA Type 1110
93324
x
3
Safety glass plate module 900
189028
x
4
Lever element
86699
x
5
Gas spring (300 N) *
89801
x
6
Gas spring (400 N) *
86701
x
7
夹紧铝形材90,长894,焊接区玻璃罩,PF Grip 90
189003
x
* Assembly tool for gas
spring 123716
1 3 7 2 5 6 4 6 5 4
Powerflow_zh | Rev. 4a
Ersa GmbH
497 / 561
9 |
1100

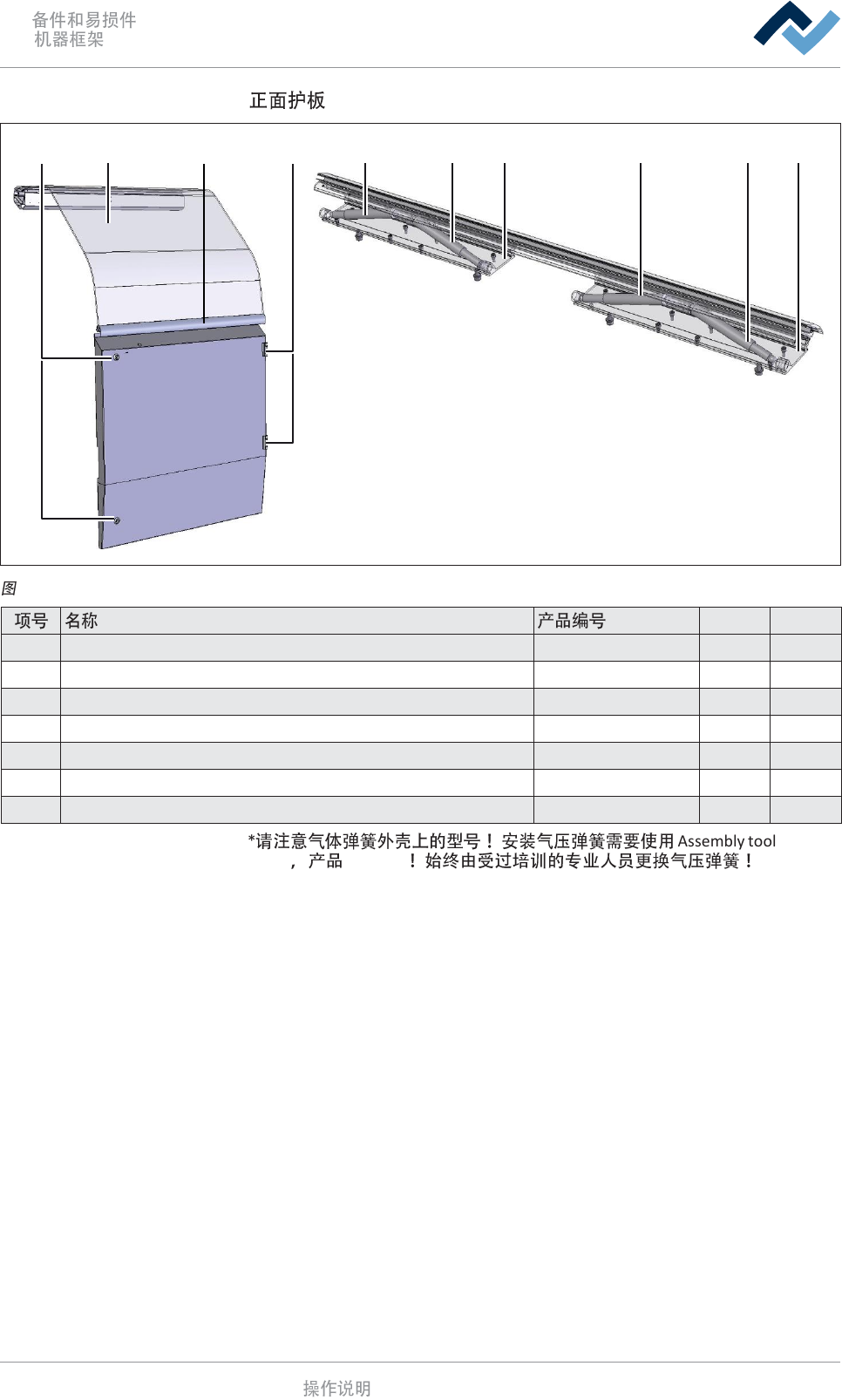

185: EM155-10-11-00b
A
B
1
Lock
6VER2520
x
2
Hinge EMKA Type 1110
93324
x
3
Safety glass plate without cutout, module 1100
86292
x
4
Lever element
86699
x
5
Gas spring (500 N)
182525
x
6
Gas spring (400 N) *
86701
x
7
夹紧铝形材11 Grip 11
86856
x
* Assembly tool for gas
spring 123716
1 3 7 2 5 5 4 6 6 4
Powerflow_zh | Rev. 4a
Ersa GmbH
498 / 561
9 |

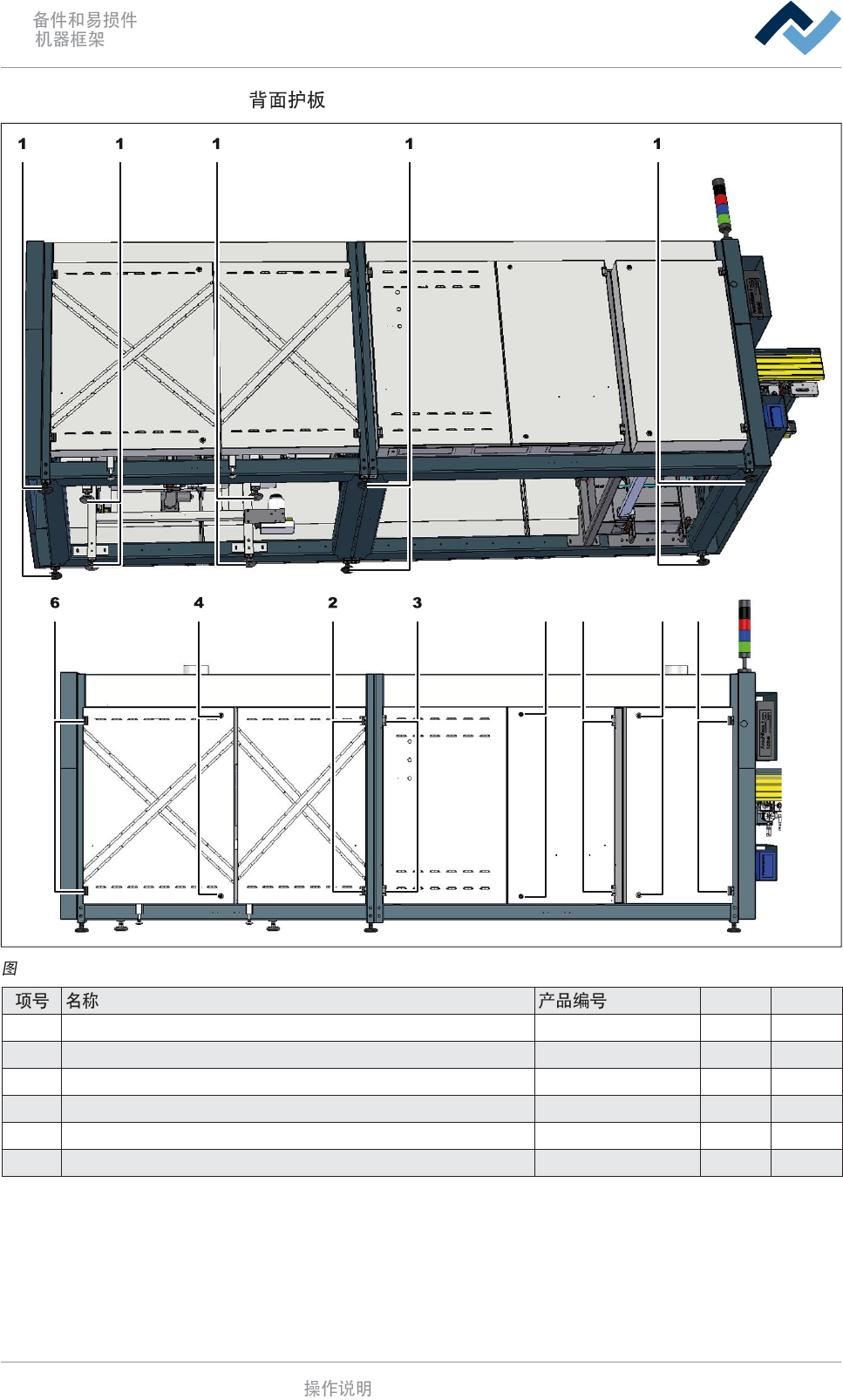

186: EM155-00-00-00a
A
B
1
固定调节脚 Fixed Adj. Foot M16x150,CVF-M16150-80,45#
243877
x
2
Hinge EMKA Type 1110-u121, right side
236505
x
3
Hinge EMKA Type 1110
93324
x
4
Lock
133603
x
5
Lock
6VER2520
x
6
Hinge, left
236506
x
5 3
4 2
