Powerflow_zh | Rev. 4a
Ersa GmbH
524 / 561
9 |
9.5.3
泵坑道 X_宽
泵坑道 X_窄
不
带
密
封
垫
带
密
封
垫
Powerflow_zh | Rev. 4a
Ersa GmbH
525 / 561
9 |
泵坑道X_宽
205: EM155-41-02-00c
A
B
1
Pump impeller, complete（无密封垫配置）
314400
x
Pump impeller, complete（有密封垫配置）
373287A
x
2
Bearing, with seal
93036
x
3
Toothed wheel for pump impeller
162750
x
4
Retainer gassing unit
118803A
x
5
Tooth belt POWER GRIP HDT Type 710-5-m-15
314368
x
6
Circlip 32x1,2 DIN 472
6SER-I320472
x
7
Circlip A 15x1 DIN 471
6SER-A150471
x
8
Feather key DIN 6885 5x5x20
6PSF5X5X20A
x
9
(1) Motor, Dunker, BG75X75XI+PLG63SP (10:1) 40 V
DE
324645
x
9
(2) Motor, Dunker, BG75X75XI+PLG63SP (7:1) 40 V
DE
316943
x
9
Powerflow_zh | Rev. 4a
Ersa GmbH
526 / 561
9 |

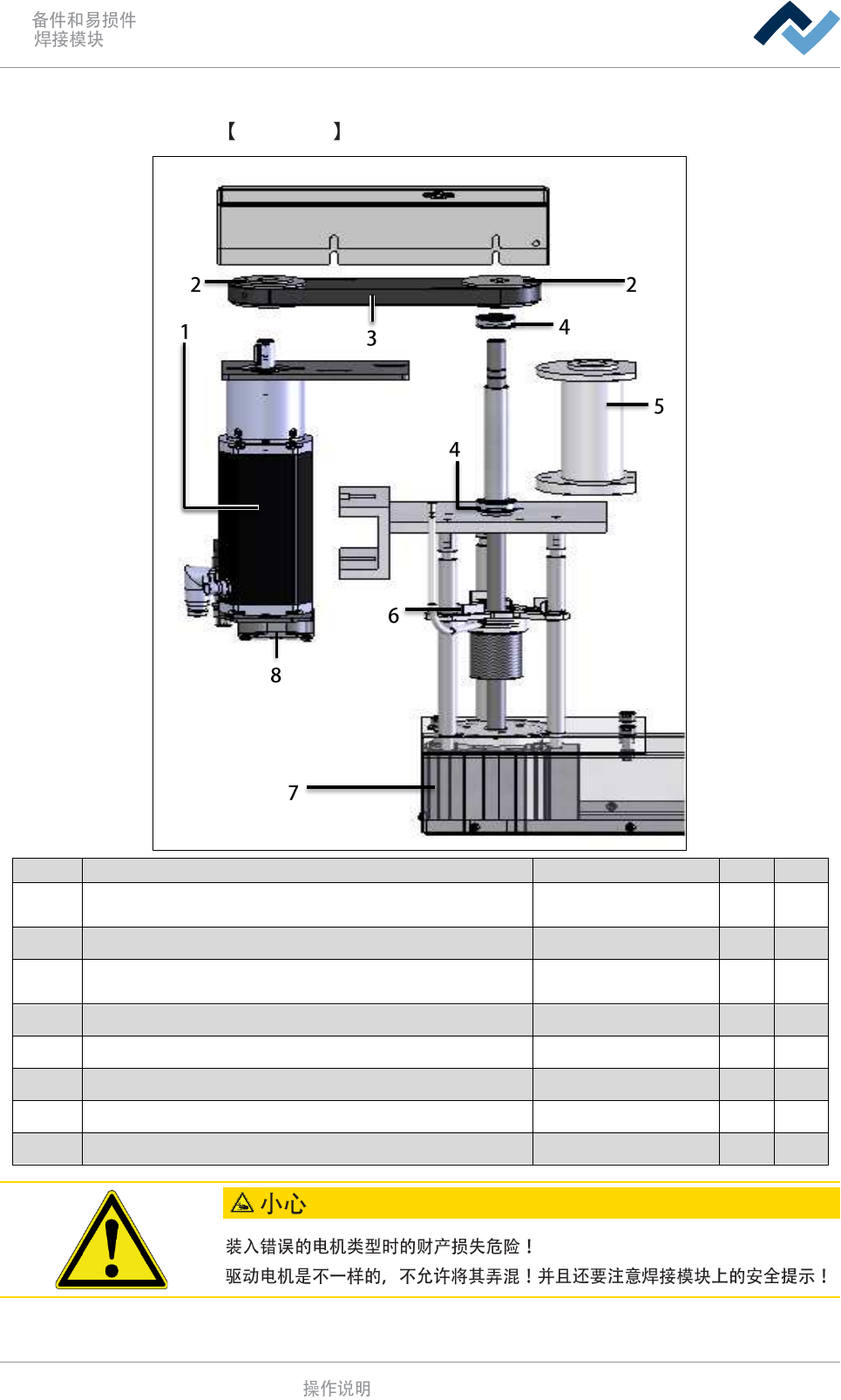

泵坑道X_窄
项号
名称
产品编号
A
B
1
马达 BG75x75CI+PLG63SP (3:1)40V_用于新喷嘴 Engine-
Dunker BG75*75CI+PLG64SP (3:1)40V
387082
X
2
皮带轮 Toothed Belt Wheel Pump Impeller
162750
X
3
泵叶轮同步带，N2 PF Toothed Belt,Power Grip HDT TYP
5505M15
6ZR0550-5M-15
X
4
深沟球轴承 Bearing 6002RS2/C3VT162
93036
X
5
Cooler
85124
X
6
Retainer gassing unit
118803A
X
7
Pump impeller, complete
113448A
X
8
冷却风扇 Fan 60x60x25 24V DC
202474
X
