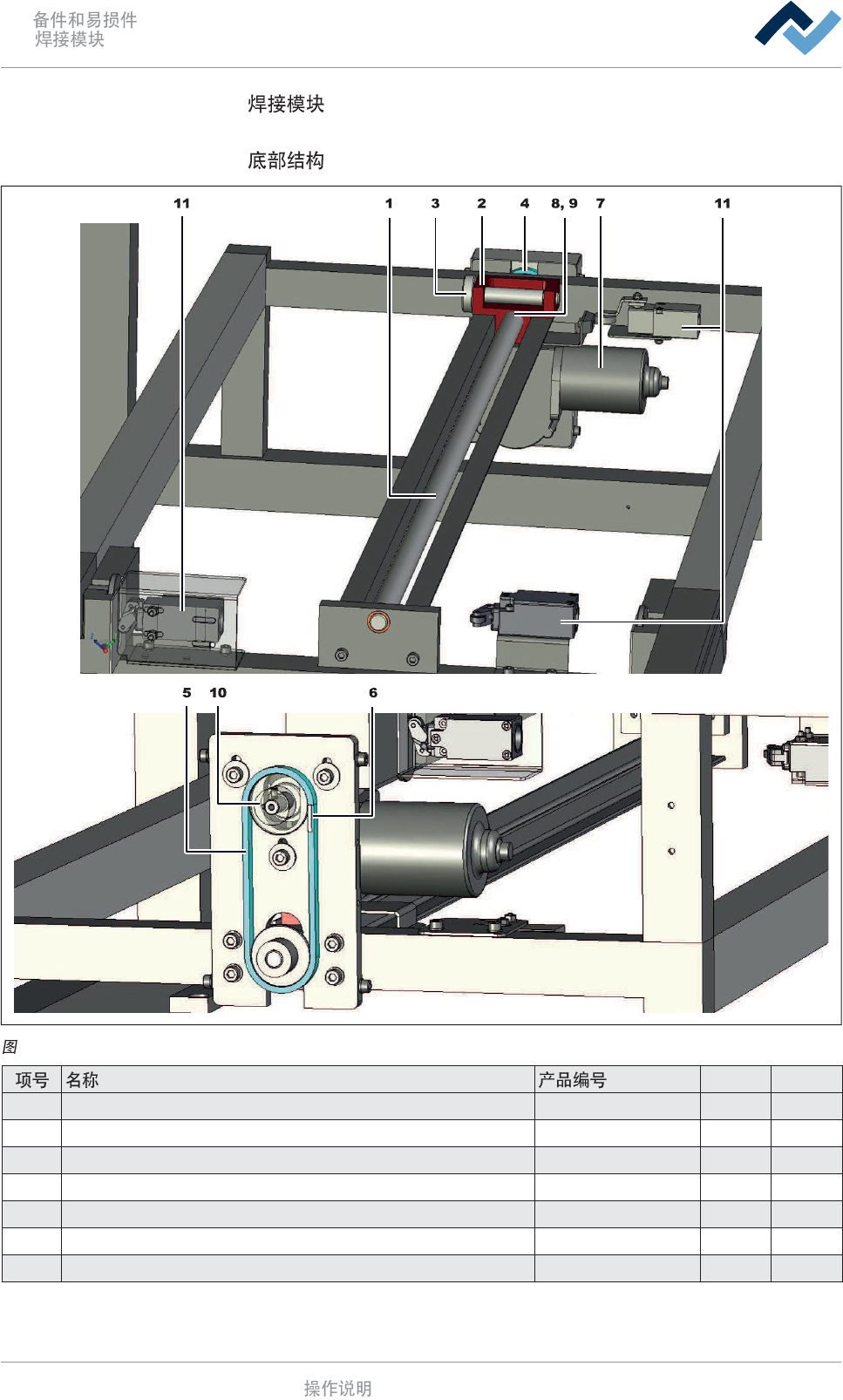

200: EM100-42-01-00a
A
B
1
Spindle
87984
x
2
丝杆铜滑块 Carriage
87996A
x
3
Pin
87997
x
4
Flange bushing C15/19X16BP
6BUC15/19X16B
x
5
Chain, 12,7 x 3,3 740, bulk stock
6KE12.7X3.3
x
6
Chain joint
6KES12.7X3.3
x
7
Motor with worm drive
6MOSWF11
x
Powerflow_zh | Rev. 4a
Ersa GmbH
520 / 561
9 |
A
B
10
Feather key Woodruff 3x 3.7
6ZT00109
x
11
Position switch, plastic, 1 closing contact, 1 , normally closed
101202
x
Powerflow_zh | Rev. 4a
Ersa GmbH
521 / 561
9 |
9.5.2
201: EM100-42-02-00a
[Z]
202: EM100-42-02-00b
A
B
1
Grease nipple, H2/M 6x1 451 113/1
6SCHMNI6X1
x
2
Bearing for spindles B7007C.T.P4S.UL
94633
x
3
Slide bar, S-black, length 750 mm
101124
x
4
Z 轴升降丝杆，PF Spindle
87677A
x
4
Spindle set, complete with spindle and nut
284773
x
4
Spindle nut, complete
284786
x
