Powerflow_zh | Re v. 4a Ersa Gm bH 524 / 561 9 | 9.5.3 泵坑道 X_ 宽 泵坑道 X_ 窄 不 带 密 封 垫 带 密 封 垫
Powerflow_zh | Rev. 4a
Ersa GmbH
523 / 561
9 |
[Y]

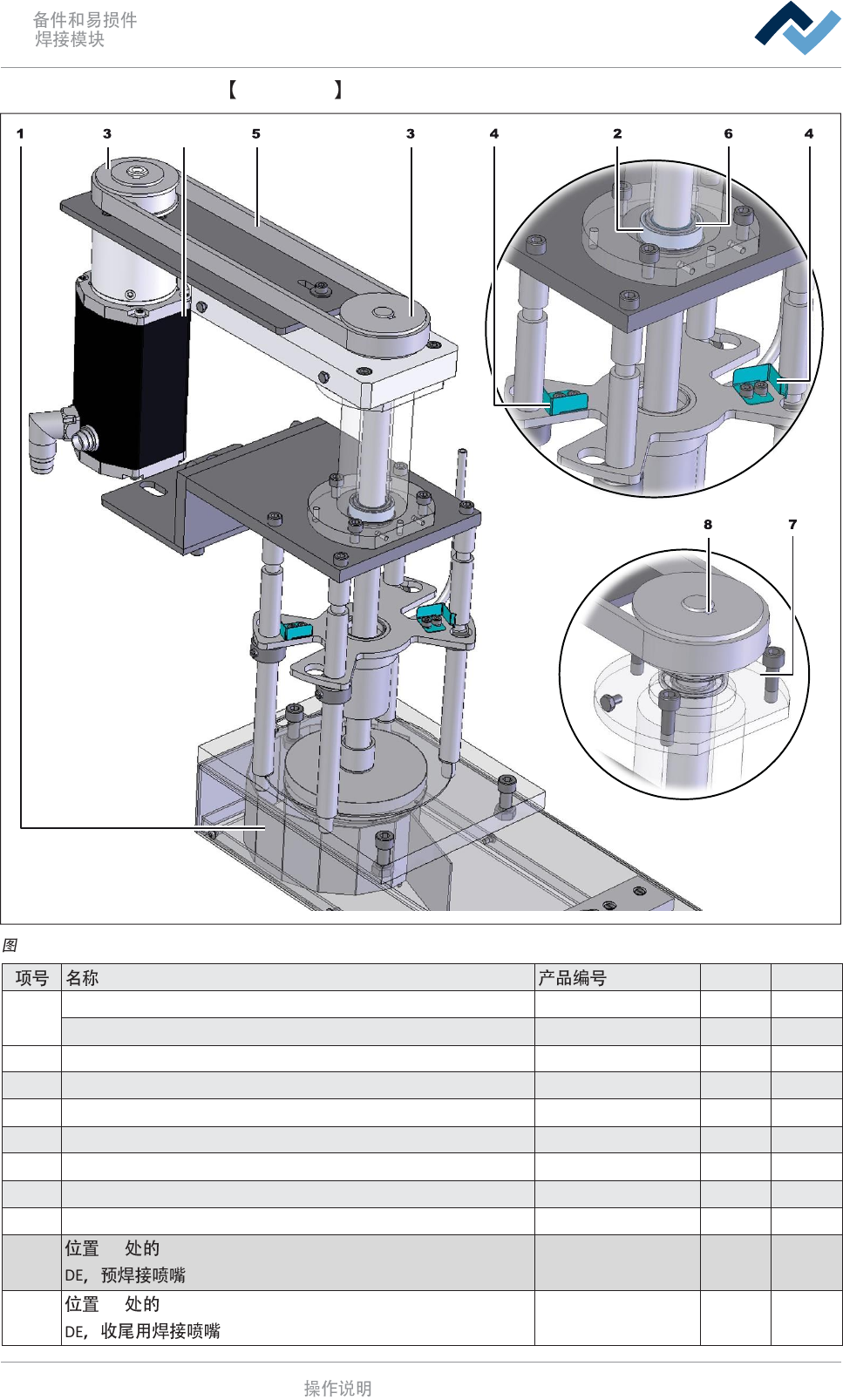

204: EM100-42-02-00d
A
B
1
Reversing Pulley With Bearing
6IN249-0
x
2
Sensor
70598
x

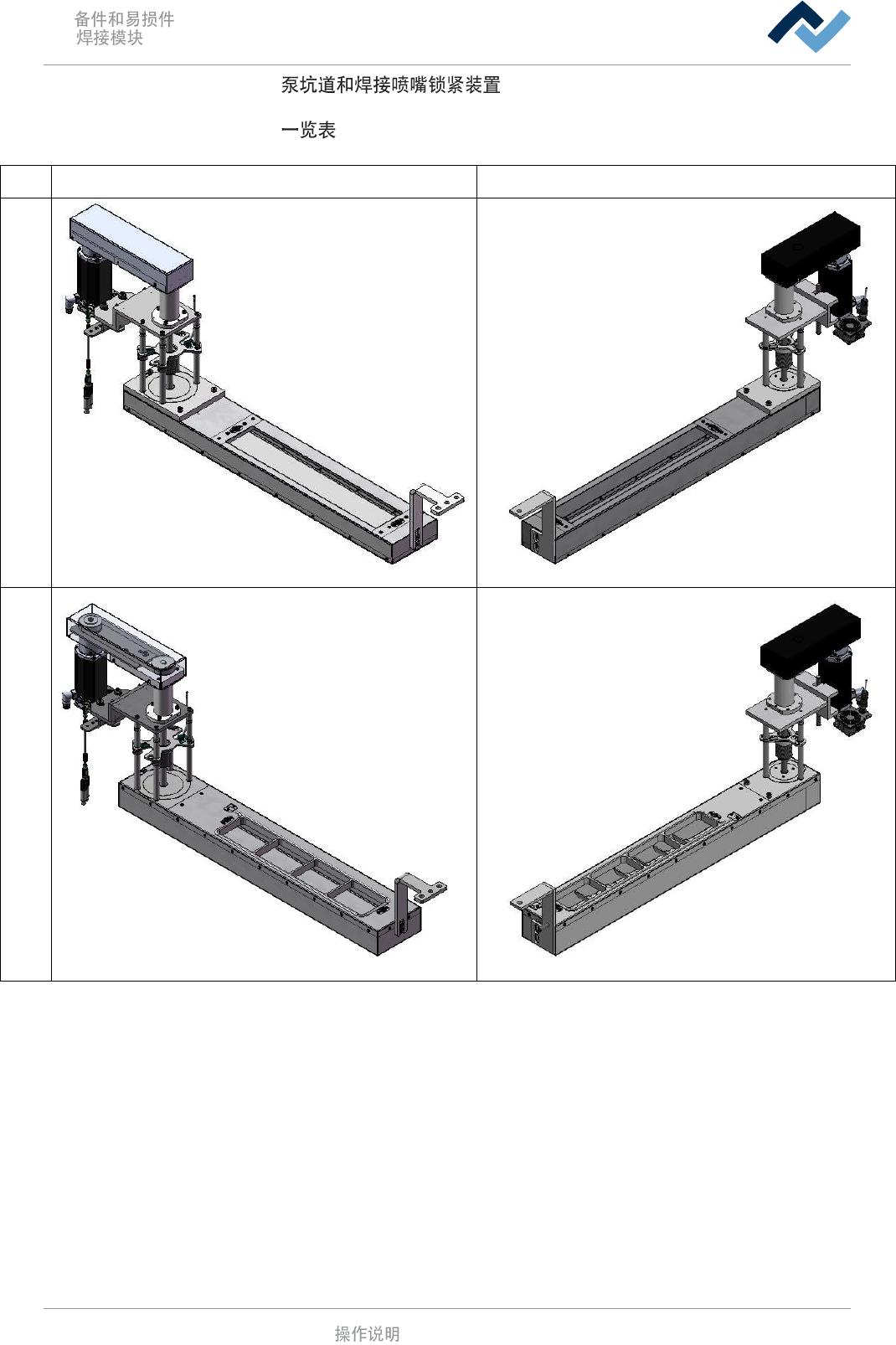

Powerflow_zh | Rev. 4a
Ersa GmbH
524 / 561
9 |
9.5.3
泵坑道 X_宽
泵坑道 X_窄
不
带
密
封
垫
带
密
封
垫
Powerflow_zh | Rev. 4a
Ersa GmbH
525 / 561
9 |
泵坑道X_宽
205: EM155-41-02-00c
A
B
1
Pump impeller, complete（无密封垫配置）
314400
x
Pump impeller, complete（有密封垫配置）
373287A
x
2
Bearing, with seal
93036
x
3
Toothed wheel for pump impeller
162750
x
4
Retainer gassing unit
118803A
x
5
Tooth belt POWER GRIP HDT Type 710-5-m-15
314368
x
6
Circlip 32x1,2 DIN 472
6SER-I320472
x
7
Circlip A 15x1 DIN 471
6SER-A150471
x
8
Feather key DIN 6885 5x5x20
6PSF5X5X20A
x
9
(1) Motor, Dunker, BG75X75XI+PLG63SP (10:1) 40 V
DE
324645
x
9
(2) Motor, Dunker, BG75X75XI+PLG63SP (7:1) 40 V
DE
316943
x
