操作说明 Powerflow_zh004a_20231024 (1).pdf - 第533页
Powerflow_zh | Re v. 4a Ersa Gm bH 533 / 561 9 | A B 9 Tube u nit 10 037 4 x 10 Pressure controllin g valv e* 12 120 3 x* *
Powerflow_zh | Rev. 4a
Ersa GmbH
532 / 561
9 |

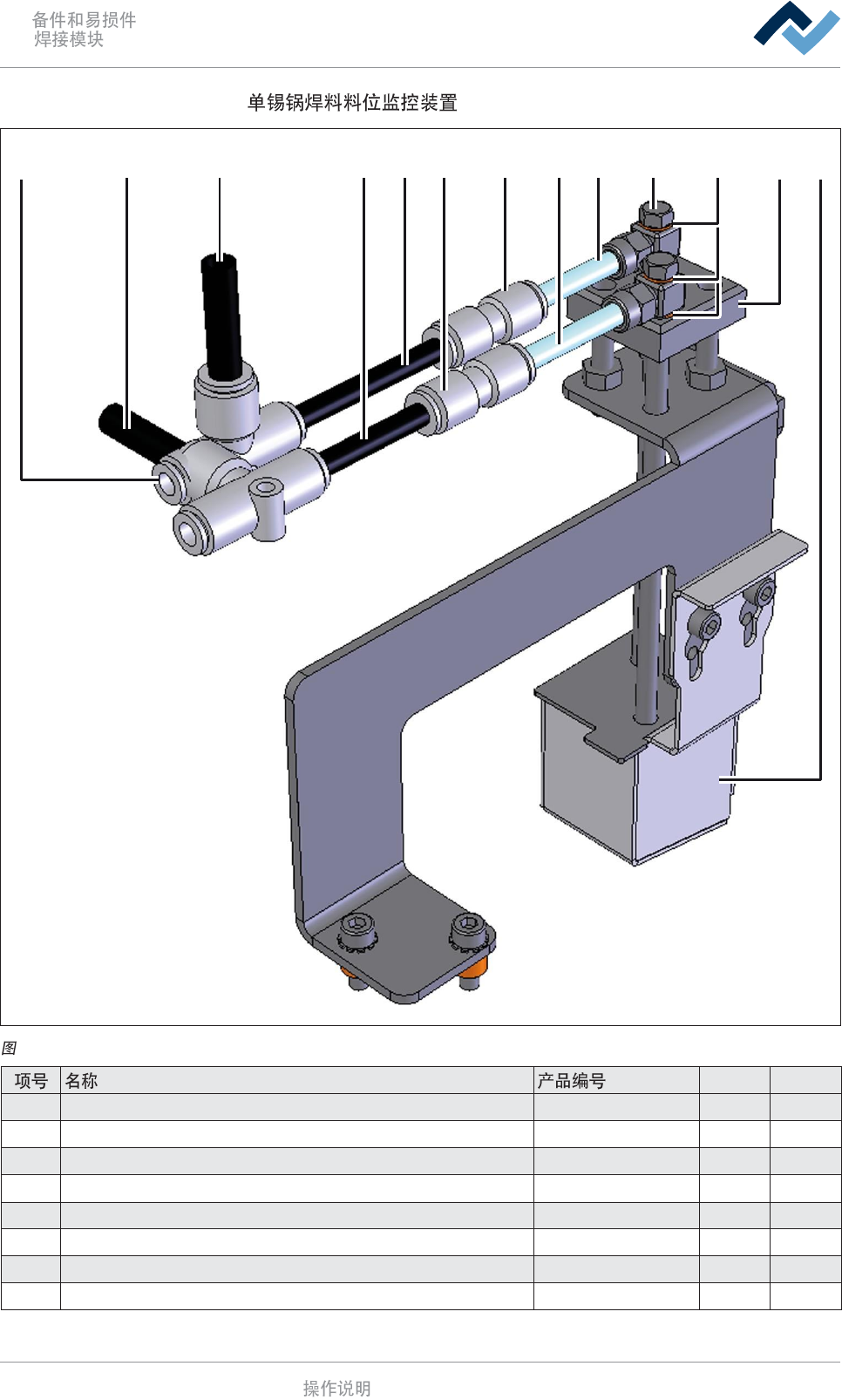

9.5.6
210: EM155-45-01-00b
A
B
1
Hose Ø 6/4, PTFE, bulk stock
6SPTFE06X1
x
2
软管 Pu-Tube Blue Daim.8*1 LW6
6BO241
x
3
Tube TUH 0858, Ø=8 mm
98942
x
4
Sealing ring, copper
153612
x
5
Protective shell
271983
x
6
弯头 Elbow Union M5 LW4 1 823 391 035
6BO116
x
7
Straight plug connection
100967
x
8
Straight screwing M5 stainless steel
6BO116
x
6 3 3 2 2 7 7 1 1 8 4 9 5
Powerflow_zh | Rev. 4a
Ersa GmbH
533 / 561
9 |
A
B
9
Tube unit
100374
x
10
Pressure controlling valve*
121203
x*
*
Powerflow_zh | Rev. 4a
Ersa GmbH
534 / 561
9 |

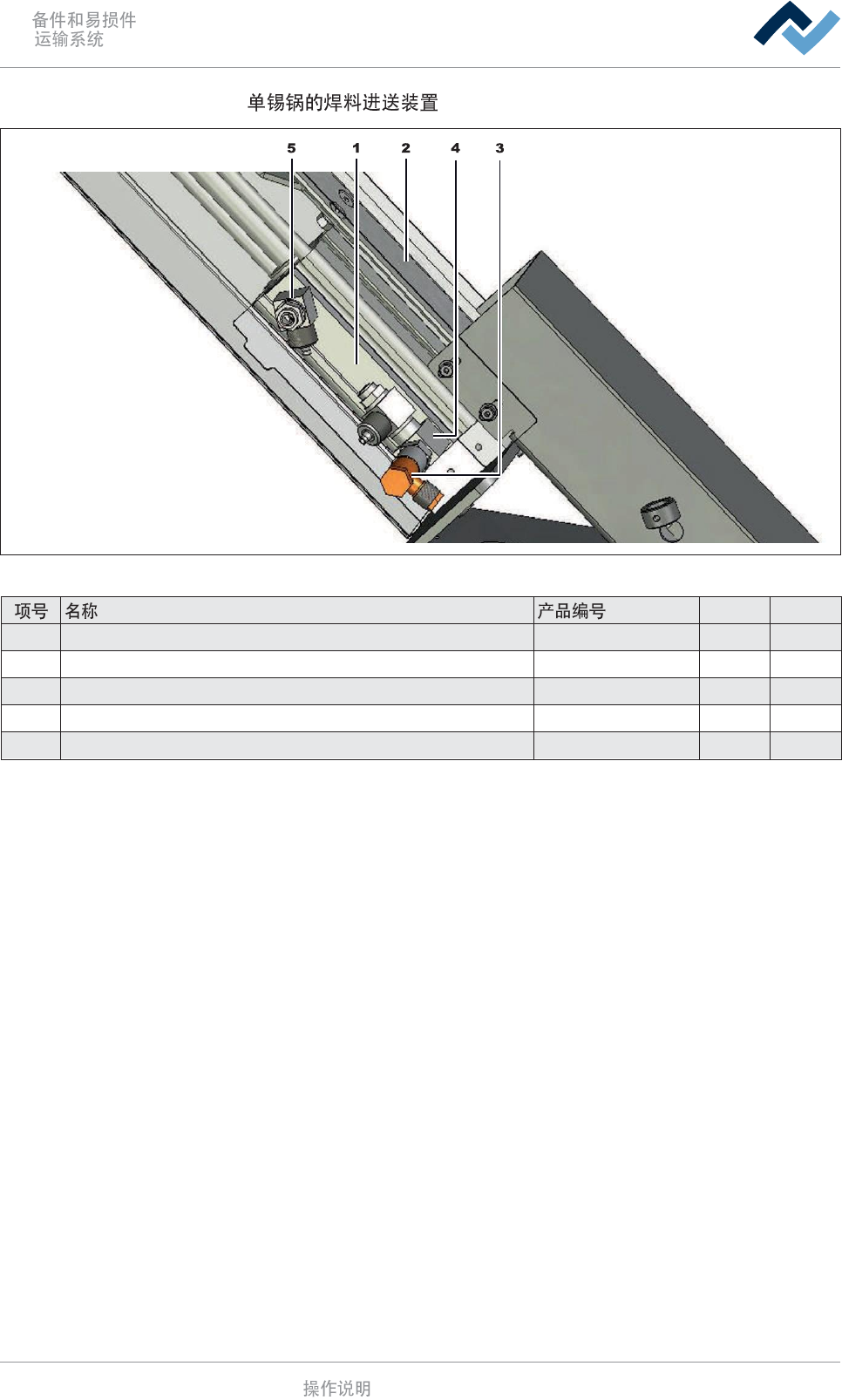

9.5.7
A
B
1
Short stroke cylinder
6BO512
x
2
焊锡滑道，自动加锡装置，PF Slide
278513
x
3
Angular swivel screw connection
6BO099
x
4
Retainer valve
6BO453
x
5
One-way restrictor
6BO018
x
