Powerflow_zh | Re v. 4a Ersa Gm bH 552 / 561 9 | 9.7 气动供给 项号 名称 产品编号 A B 1 过滤减压 阀 AW30 -02BG-A Press ure Reducing Valve With Filter 286376 X 2 SMC 压力传感器 P SE540- 01 SMC Pressure Sensor 248300 X 3 可显示流量计 Nm 3/h Flowmeter …

100%1 / 561
Powerflow_zh | Rev. 4a
Ersa GmbH
551 / 561
9 |
[W]
225: EM155-62-01-00c
A
B

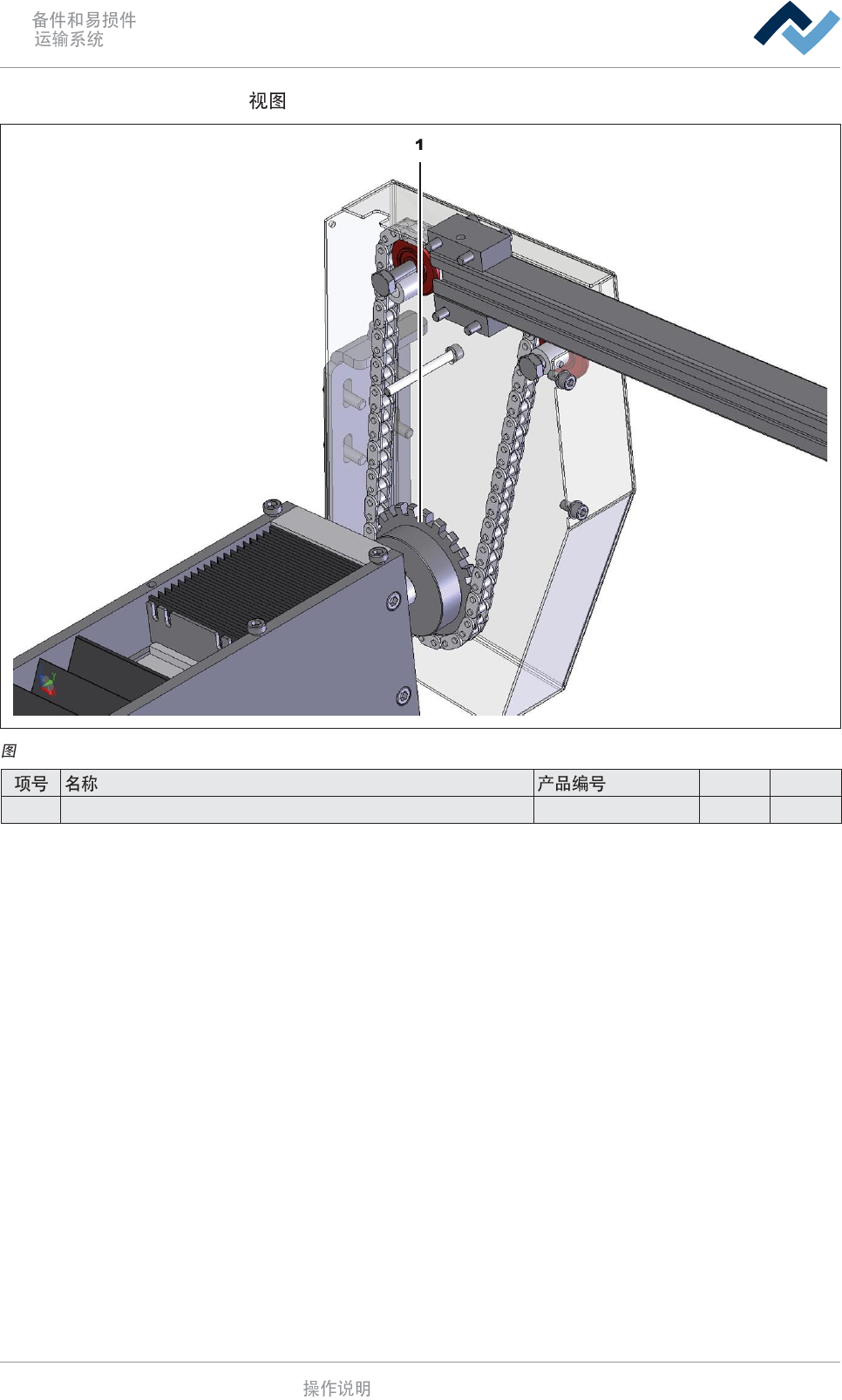

1
Chain wheel Z=26
94153
x
Powerflow_zh | Rev. 4a
Ersa GmbH
552 / 561
9 |
9.7

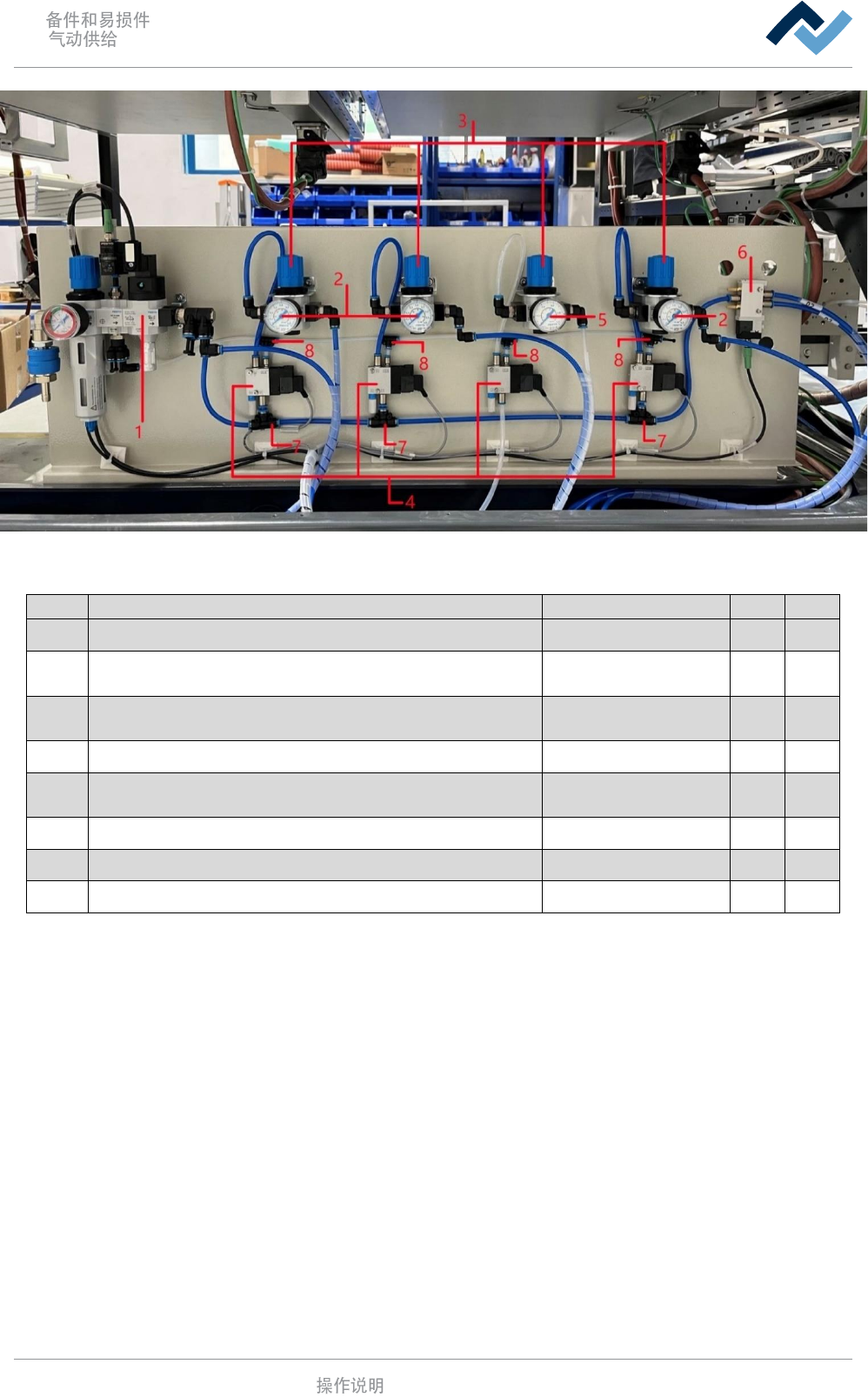

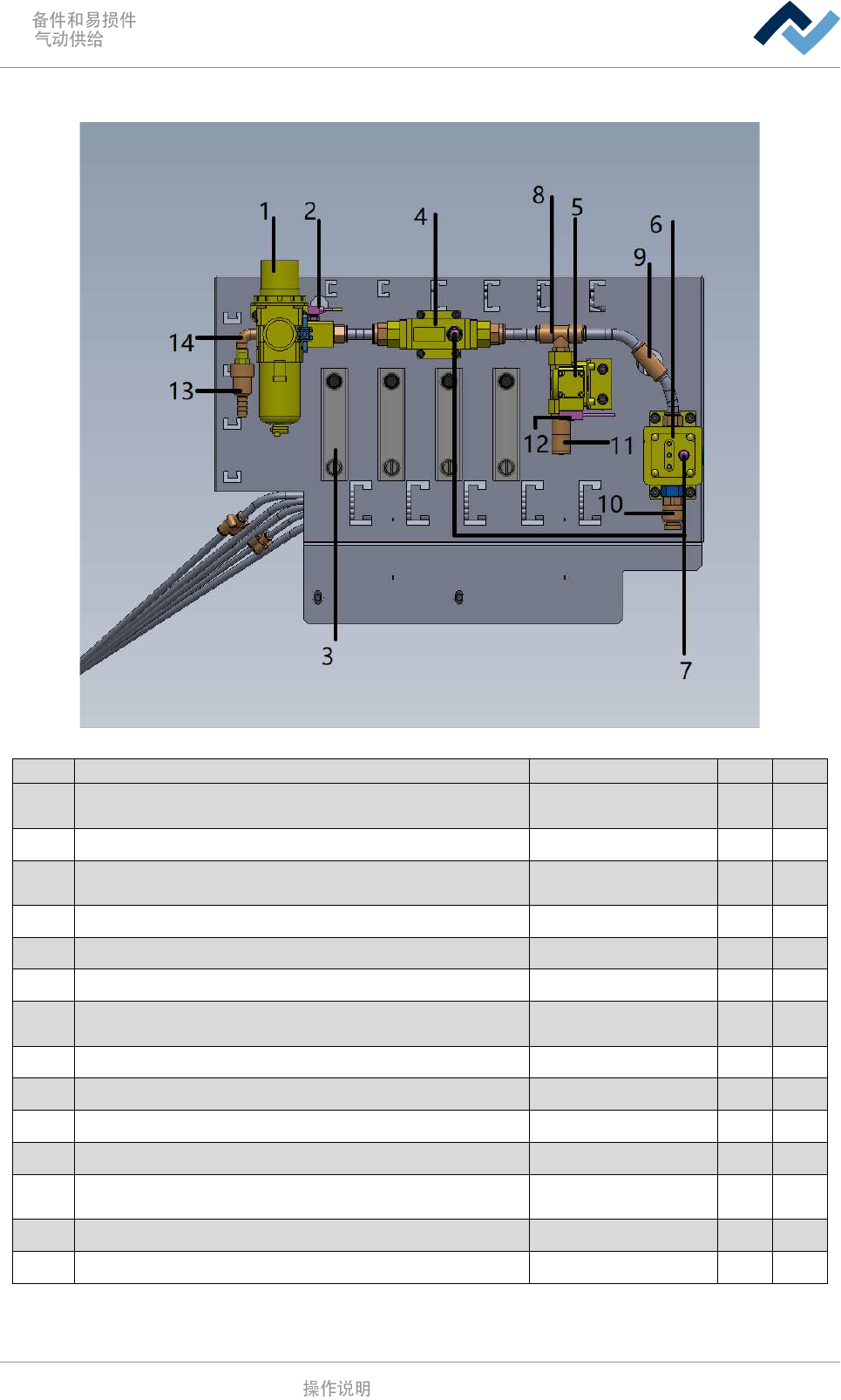

气动供给
项号
名称
产品编号
A
B
1
过滤减压阀 AW30-02BG-A Pressure Reducing Valve With
Filter
286376
X
2
SMC 压力传感器 PSE540-01 SMC Pressure Sensor
248300
X
3
可显示流量计 Nm3/h Flowmeter For Nitrogen 6Bar
3,2M3/H
6ZT00257
X
4
流量计 SMC flow switch SMC
134836
X
5
SMC 电磁阀 SMC Solenoid Valve:VXD240GZ3AAXB
248220
X
6
比例阀 Proportional Valve ITV3030-31F3BN3
333097
X
7
M12 弯接头电缆线，4 极, 10m,带屏蔽 M12-Angle Cable
Box, 4-Poled, 10M, Shield
15543
X
8
SMC T 型接头 SMC T-Connection , 12x3/8",KQ2T12-03AS
248301
X
9
T 型变径快插接头 12-12-10 T-Connector, KQ2T12-10A
267387
X
10
SMC 节流阀 SMC Throttle Valve, AS4201F-04-10SA
248315
X
11
SMC 弯接头 SMC Elbow Connection 10X3/8",KQ2VD10-03AS
350848
X
12
SAC-3P-M12MS/5,0-PUR/A-1L-Z 电缆线 超声波用
SAC-3P-M12MS/5,0-PUR/A-1L-Z Cable
63334
X
13
SMC 母接头 SMC Female Connector KK130S-11B
248502
X
14
牙弯 Elbow Connection R1/4"K-G1/4"
248503
X
Powerflow_zh | Rev. 4a
Ersa GmbH
553 / 561
9 |
项号
名称
产品编号
A
B
1
过滤调压阀组件,气动控制单元，PF Filter Regulator Unit
325381
X
2
压力表 162842 MAP-40-4-1/8-EN，PF Manometer 162842
MAP-40-4-1/8-EN
293713
X
3
压力调节阀 LR-1/4-D-7-0-Mini,PF Pressure Regul. Valve LR-
1/4-D-7-0-Mini
KW009468
X
4
3/2 电磁换向阀 D4mm，PF 3/2 Way Valve D4MM CPE10
285850
X
5
压力表 161126 MAP-40-1-1/8-EN Manometer 161126 MAP-
40-1-1/8-EN
6BO-FE24
X
6
电磁阀 Valve 5/2 mono D6 M8
319409
X
7
T 型接头 QST-6，PF T-Connector QST-6
257104
X
8
T 型接头 4mm，PF Fitting 4-4-4
265995
X
