Powerflow_zh | Re v. 4a Ersa Gm bH 541 / 561 9 | 216: A B 1 Conveyor finger, wire, 3 mm edge widt h 18 123 0 x 2 Conveyor finger, wire, 5 mm edge widt h 19 080 7 x 3 Conveyor finger, sheet, 3 mm edge width, T=1 , 00 95 0…
Powerflow_zh | Rev. 4a
Ersa GmbH
540 / 561
9 |

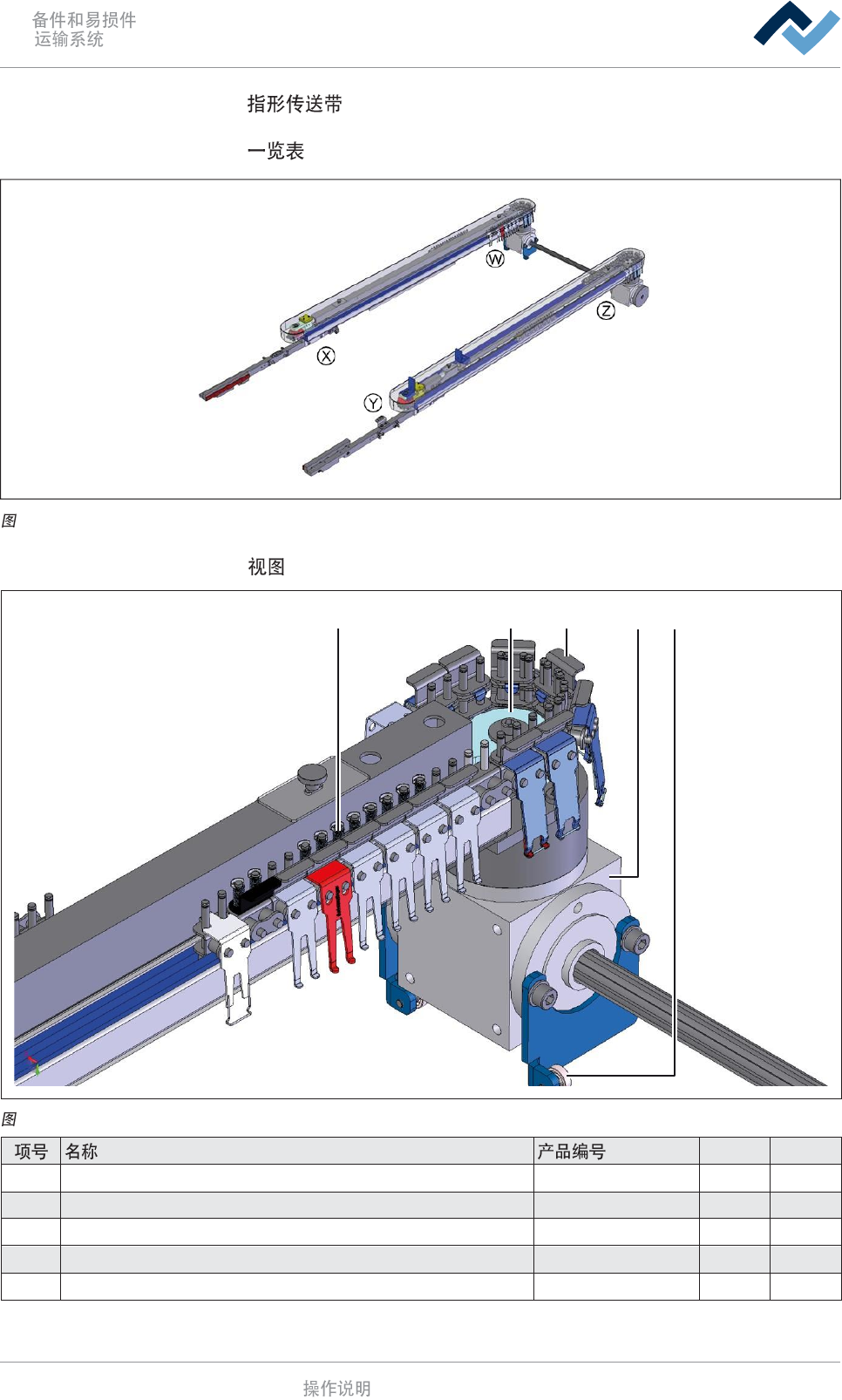

9.6.2
214: EM155-61-01-00a
[W]
215: EM155-61-01-00b
A
B
1
Pressure spring, 11N
269950
x
2
Downholder
86506
x
3
Chain wheel
86495
x
4
Bearing SS625-2TS/C3, thermostable up to 280°C
100877
x
5
锥齿轮1:1 V90型，E型 Bevel gear, 1:1, type V90, version E
6WGTRETSF
x
1 3 2 5 4
Powerflow_zh | Rev. 4a
Ersa GmbH
541 / 561
9 |

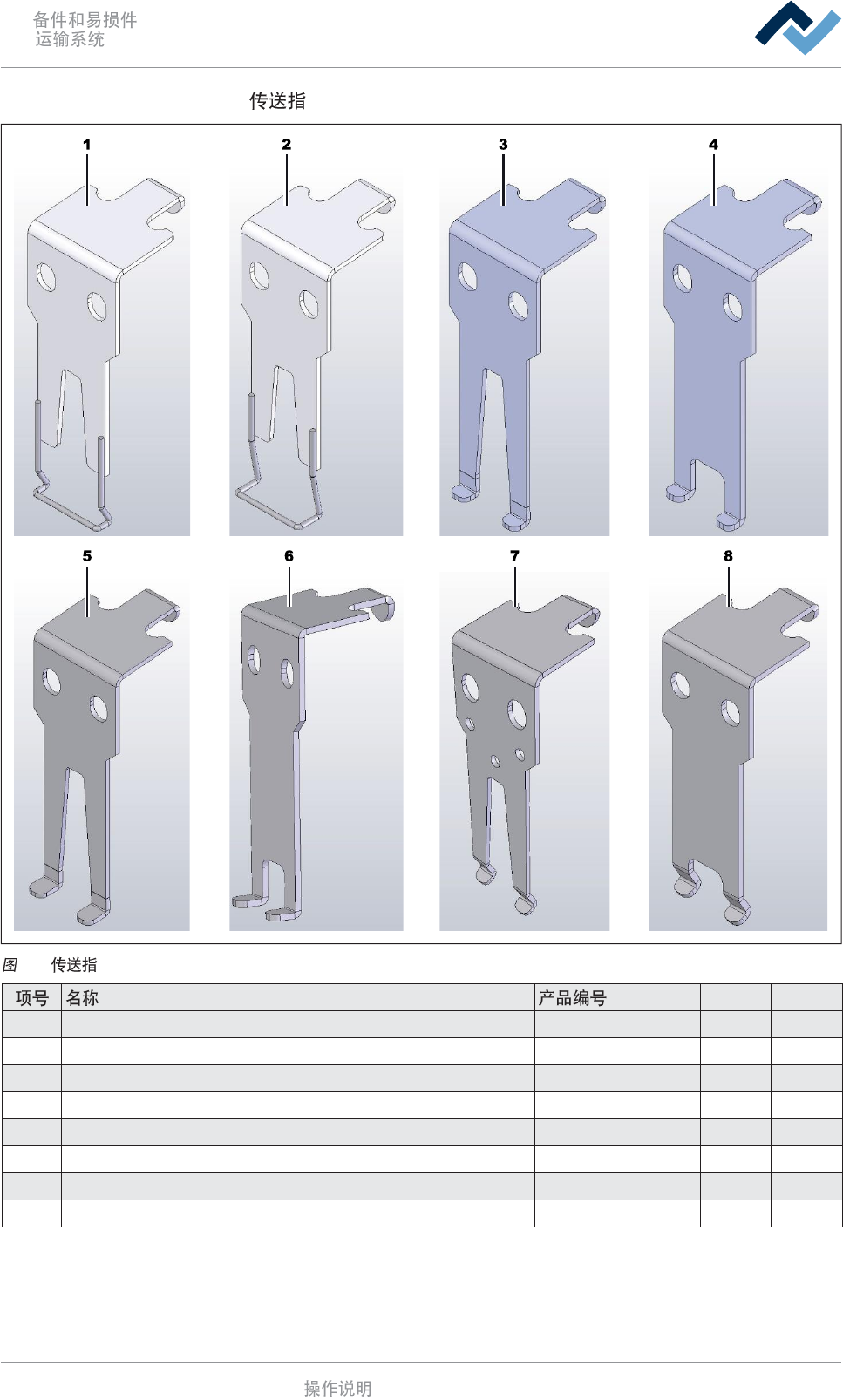

216:
A
B
1
Conveyor finger, wire, 3 mm edge width
181230
x
2
Conveyor finger, wire, 5 mm edge width
190807
x
3
Conveyor finger, sheet, 3 mm edge width, T=1,00
95071
x
4
Conveyor finger, sheet, 3 mm edge width, T=1,25
265999
x
5
Conveyor finger, sheet, 5 mm edge width, T=1,00
190095
x
6
Conveyor finger, sheet, 5 mm edge width, T=1,25
269093
x
7
Conveyor finger, sheet, V, T=1,00
89198
x
8
Conveyor finger, sheet, V, T=1,25
265998
x
Powerflow_zh | Rev. 4a
Ersa GmbH
542 / 561
9 |

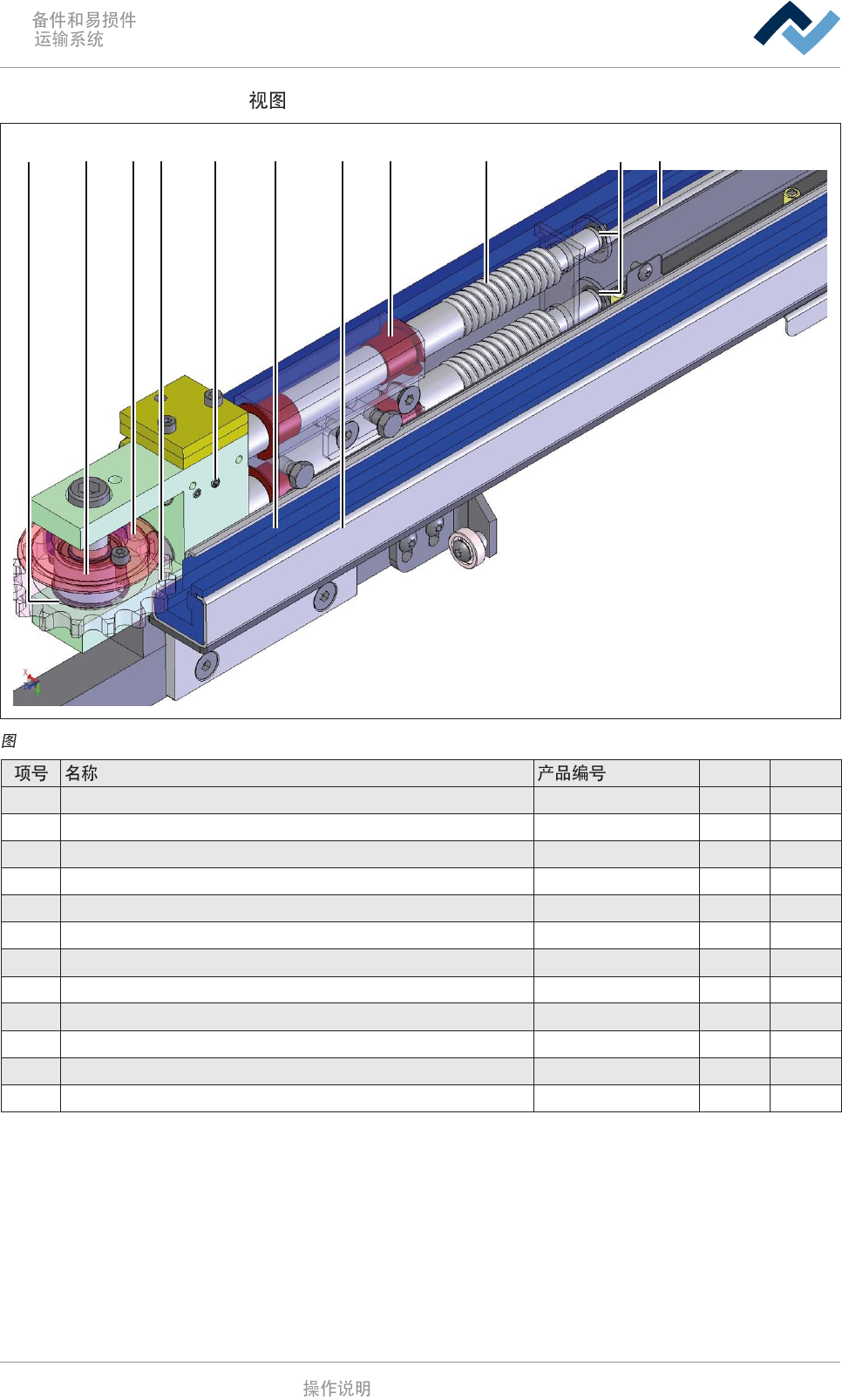

[X]
217: EM155-61-01-00c
A
B
1
Circlip
6SER-I280472
x
2
Washer
86494
x
3
Chain wheel
86493
x
4
Glide coating, inner surface, left
315106
x
5
Bearing
96602
x
6
Glide coated profile, C-shaped, inner surface, left
315107
x
7
Circlip A 10
6SER-A100471
x
8
Spring
6FEDVD288Z-63
x
9
Flange bushing 16 x 18 x 17
6BUFL16X18X17
x
10
Clamping sleeve 4 X 24 V2A DIN 1481
6SPH4X24E1481
x
11
Glide coated profile, C-shaped, outer surface, left
315101
x
11
Glide coated profile, C-shaped, inner surface, left
315107
x
1 5 2 3 10 4 6 9 8 7 11
