【超声波喷头】
项号
名称
产品编号
A
B
1
油管 Tube 4 X 0,8 063.835
6SPTFE04.0X0.8
X
2
screw-in angle M5 Inox
94178
X
3
气管 PTFE Dia. 6/4
6SPTFE06X1
X
4
接头 Stanless Elbow Joint
95009
X
5
直通变径 Fitting (Reduction) 6-4
281149
X
Powerflow_zh | Rev. 4a
Ersa GmbH
506 / 561
9 |

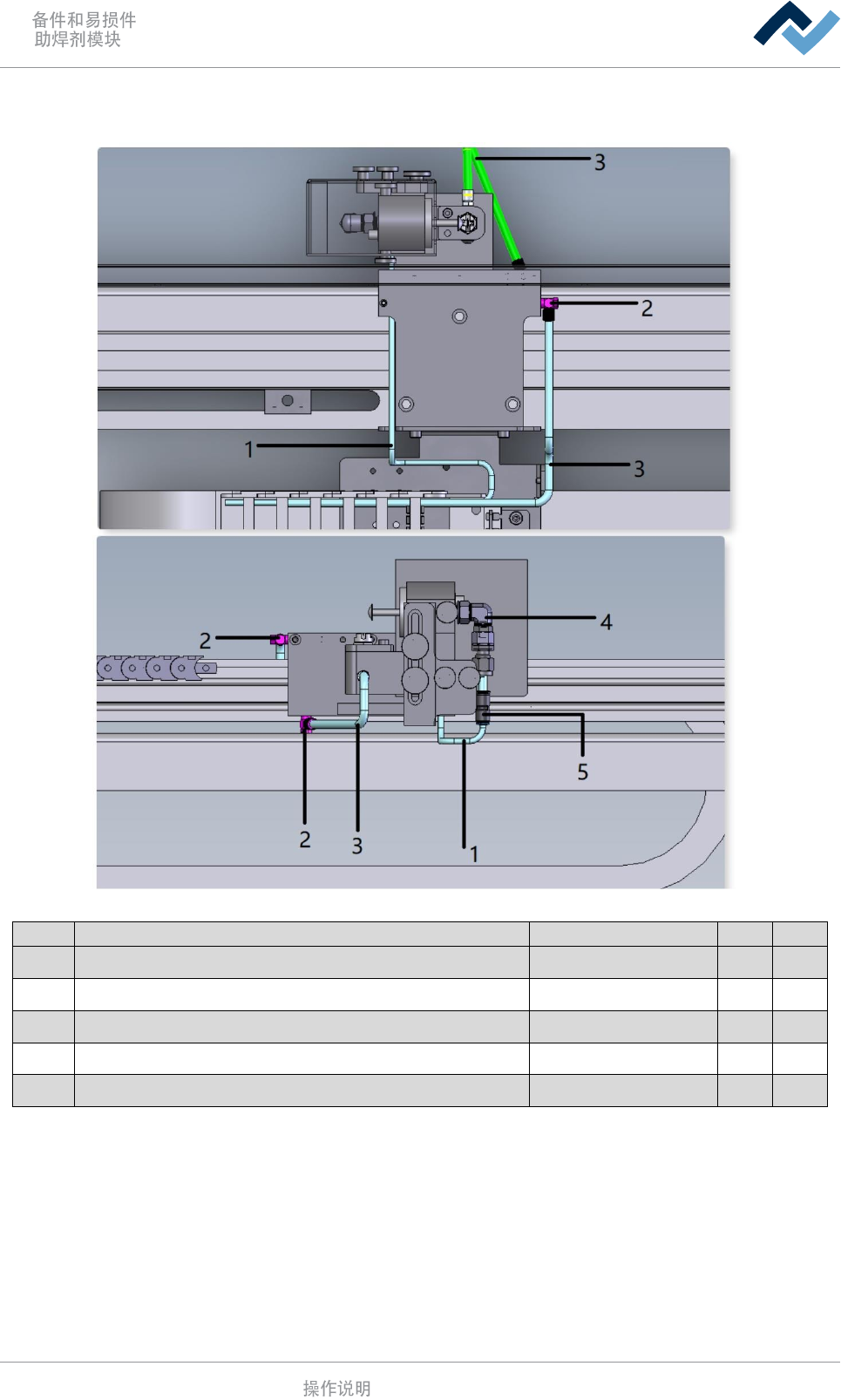

191: EM100-26-05-00b
A
B
1
软管 Hose 12/9 X 1,5
6SVIT09X1.5
X
2
Hose clamp 8...16 mm
216222
x
3
Hose clip, clamping capacity 15 mm
6PUEZT05
x
4
Proximity switch, capacitive
132450
x
Powerflow_zh | Rev. 4a
Ersa GmbH
507 / 561
9 |
9.3.3 - [ ]

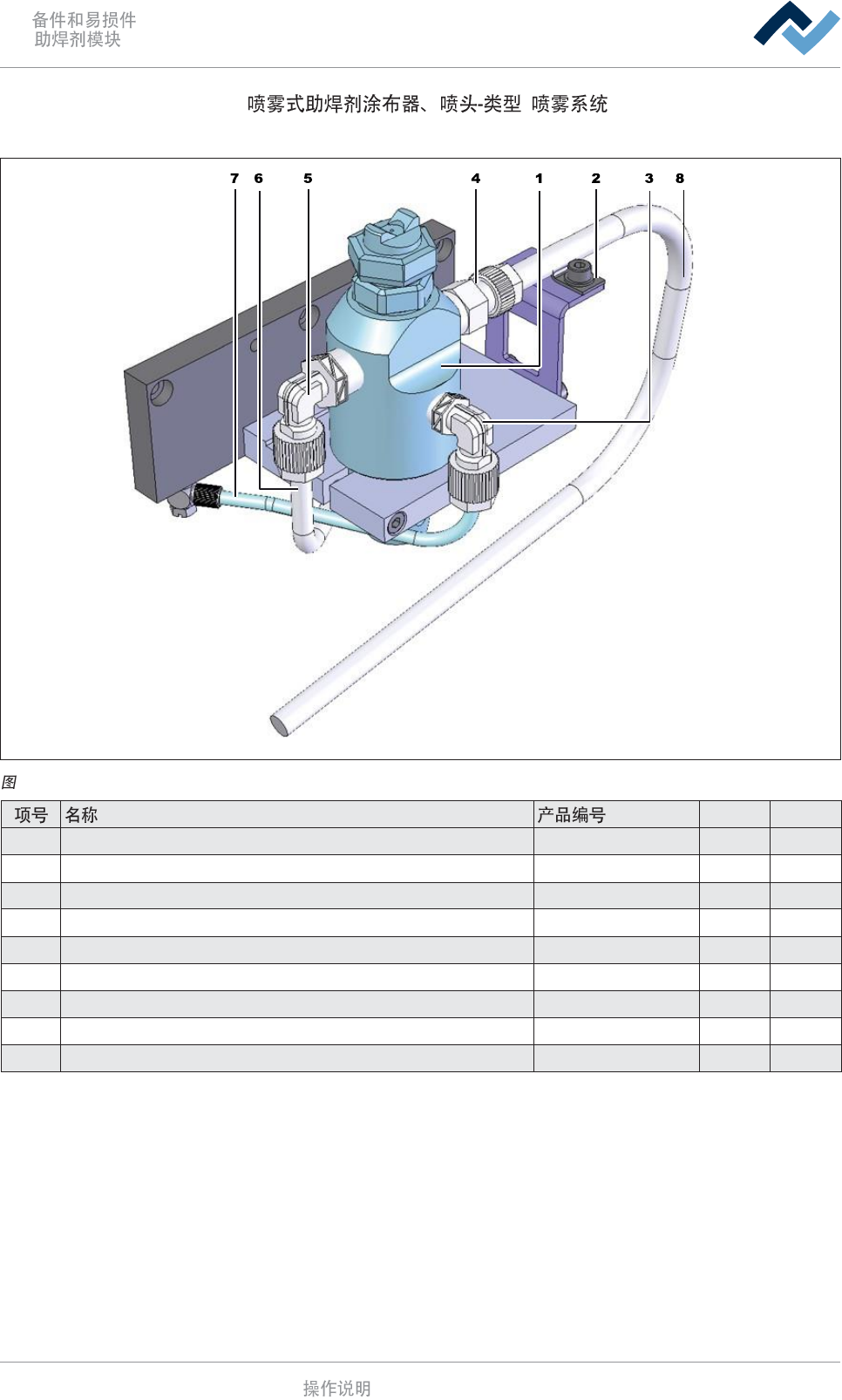

【普通喷头】
192: EM100-26-99-08-00a
A
B
1
Spray unit, complete
39312
x
2
Pipe clamp DIN 72571
6ZT00211
x
3
Screw-in angle SERTO SO22421-4-1/8NPT
295218
x
4
Screw connection SERTO SO21121-6-1/4NPT
39347
x
5
Screw-in angle SERTO SO22421-6-1/4NPT
38069
x
6
Hose, PTFE, bulk stock
6SPTFE04.0X0.8
x
7
Hose Ø 6/4, PTFE, bulk stock
6SPTFE06X1
x
8
弹簧 pressure spring 0,8x8x1200 (外部)
177580
X
8
PTFE管 6/4 白色(内部) PTFE-Hose 6*4 Natural 100 meter rolls
WD07.24.001
X
