Powerflow_zh | Rev. 4a
Ersa GmbH
543 / 561
9 |

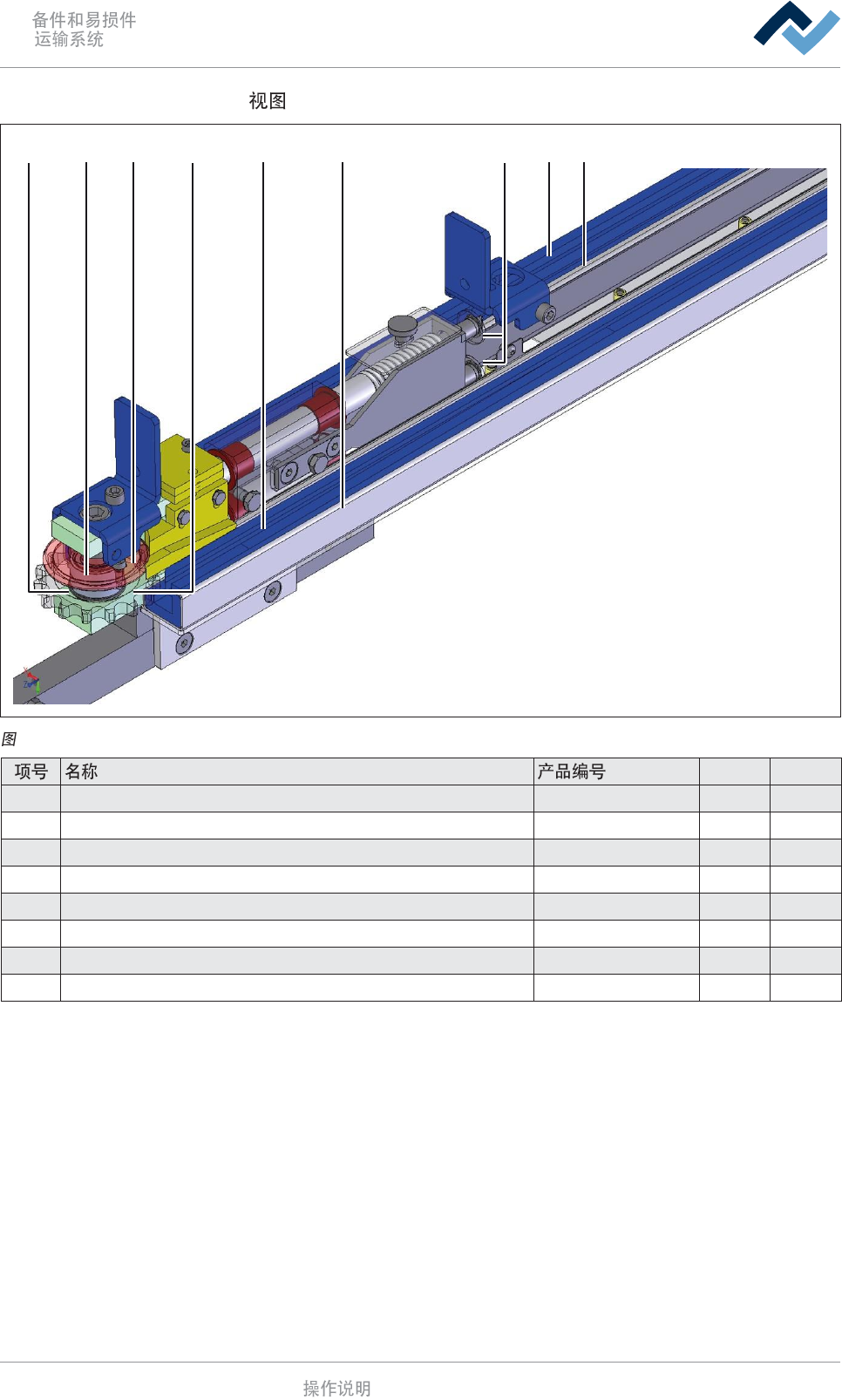

[Y]
218: EM155-61-01-00d
A
B
1
Circlip
6SER-I280472
x
2
Washer
86494
x
3
Chain wheel
86493
x
4
Glide coating, outer surface, right
315103
x
5
Glide coated profile, C-shaped, outer surface, right
315104
x
6
Glide coating, inner surface, right
315108
x
7
Glide coated profile, C-shaped, inner surface, right
315109
x
8
Circlip A 10
6SER-A100471
x
1 5 2 3 4 5 8 6 7
Powerflow_zh | Rev. 4a
Ersa GmbH
544 / 561
9 |
[Z]
219: EM155-61-01-00e
A
B
1
Chain (finger conveyor), 12,7 x 7,75 x 8,51 with U bracket
80115
x
2
Chain wheel
109370
x
3
Spur gear
87315
x
4
Circlip A 15x1 DIN 471
6SER-A150471
x
5
锥齿轮1:1 V90型，E型 Bevel gear, 1:1, type V90, version E
6WGTRETSF
x
6
Tensioning kit
109374
x
7
Lock ring for chain (finger conveyor)
86507
x
5 1/7
Powerflow_zh | Rev. 4a
Ersa GmbH
545 / 561
9 |
9.6.3
9.6.3.1 预热传送带动力系统
一览表
视图 [W]
项号
名称
产品编号
A
B
1
guiding piece
94091
X
2
_ chain wheel_above
371236
X
3
Gear Motor BG65x50 PLG63 250:1
6MO-009
X
4
tension spring RZ-110I
94170
X
5
CHAIN 9,525X5,72 06B-1 NO PINS
6KE06B-1G67NS
X
6
CHAIN LOC 9,525 X 5,72 no pin
6KES06B-1G67NS
X
7
steel disc V2A
248108
X
8
_ chain wheel_preheating
371252
X
