Powerflow_zh | Rev. 4a
Ersa GmbH
516 / 561
9 |

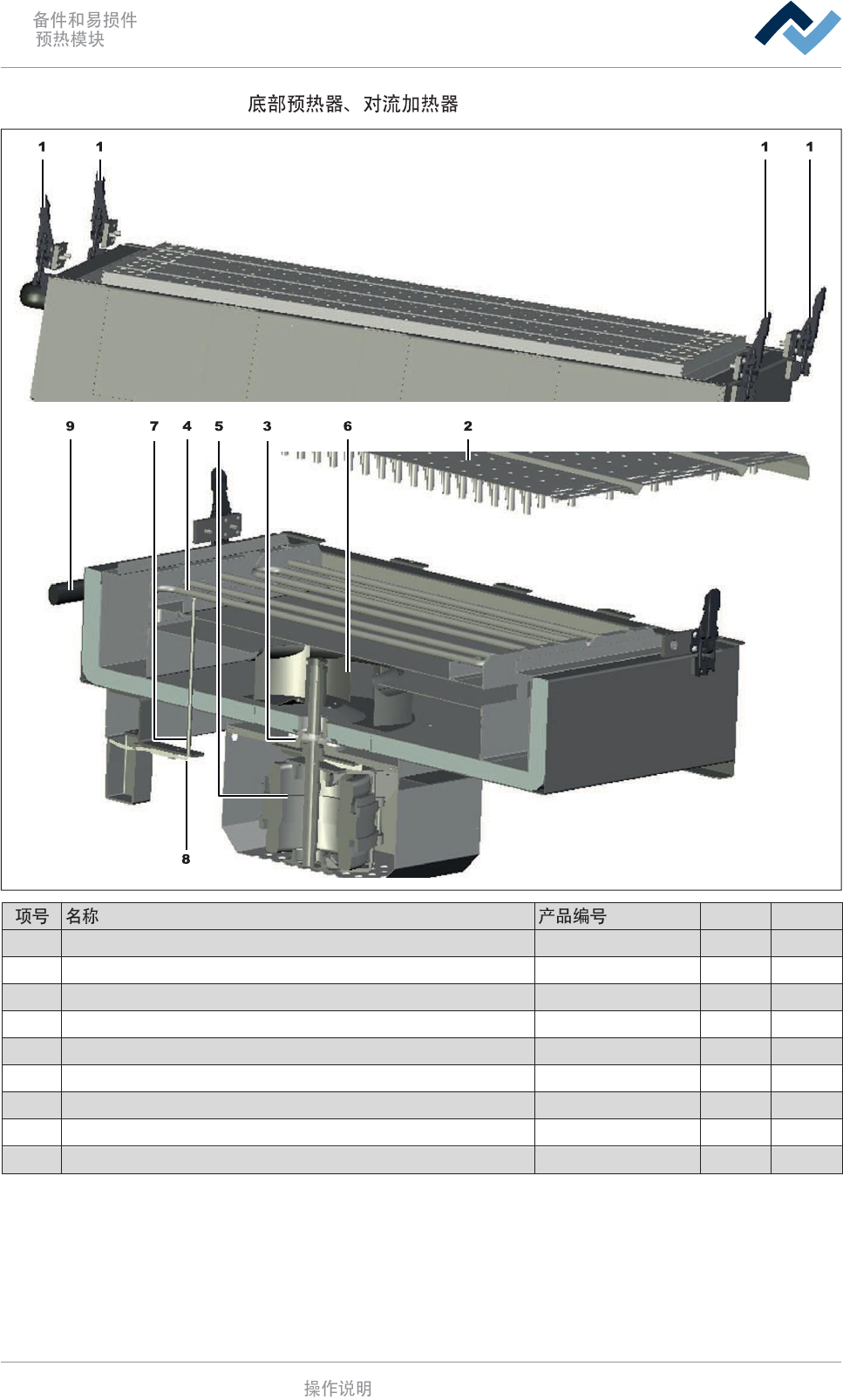

9.4.3
A
B
1
Closing tensioner
6VERGN-T2
x
2
Complete nozzle, lower
94402
x
3
Sealing on fan flange
94873
x
4
Tubular heating element 3,4 kW, 230 V, 50/60 Hz
92661
x
5
Fan motor type 9A W2A without Hall sensor
264024
x
6
Fan wheel 225 x 40R, rivet up
6HZL-ZT06-VN
x
7
Thermocouple IR10, shaped
6IN774_3
x
8
Pipe clamp DIN 72571
6ZT00211
x
9
Bow-type handle insulated, GN-564-25-160
6GR-GN564
x
Powerflow_zh | Rev. 4a
Ersa GmbH
517 / 561
9 |

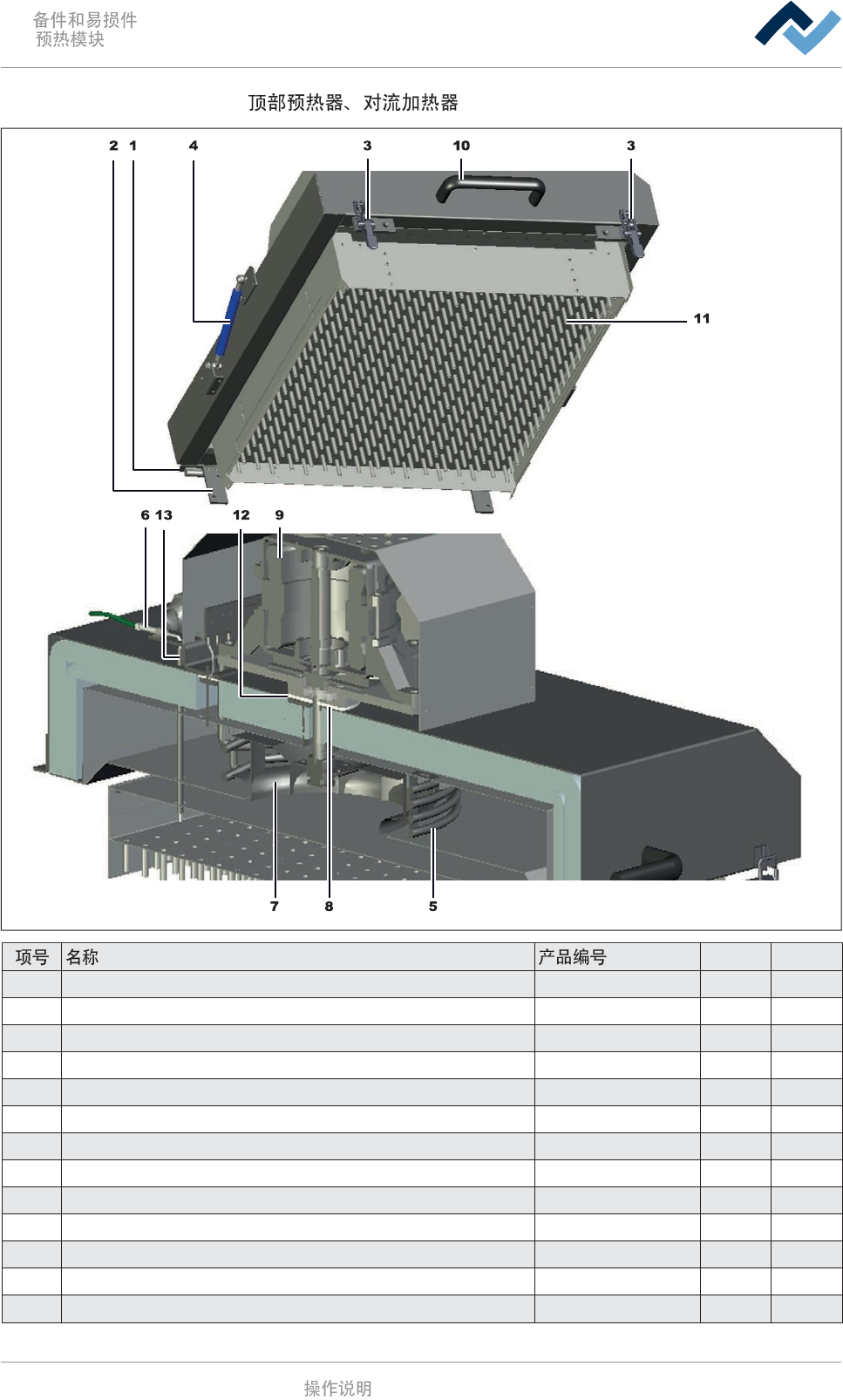

9.4.4
A
B
1
Hinge (arm part)
24160
X
2
Hinge (frame part)
24159
X
3
Closing tensioner
6VERGN-T2
X
4
耐高温带保险气弹簧 High Temp. Resistant Belt Spring 300N,PF
341394A
X
5
Tubular heating element 2 x 3 kW, 230 V, Ø 250
87646
X
6
Thermocouple IR10, shaped
6IN774_3
X
7
Fan wheel 225 x 40R, rivet
6HZL-ZT06-VN
X
8
Sealing on fan flange HF2eco
53535
X
9
Fan motor type L9 without Hall sensor
6HZL-MOT144A
X
10
Bow-type handle insulated, GN-564-25-160
6GR-GN564
X
11
Nozzle plate, lower side
88499
X
12
Radial shaft sealing ring
6HTS17X35X7
X
13
Sealing for thermocouple
6ABKA006x38
X
Powerflow_zh | Rev. 4a
Ersa GmbH
518 / 561
9 |

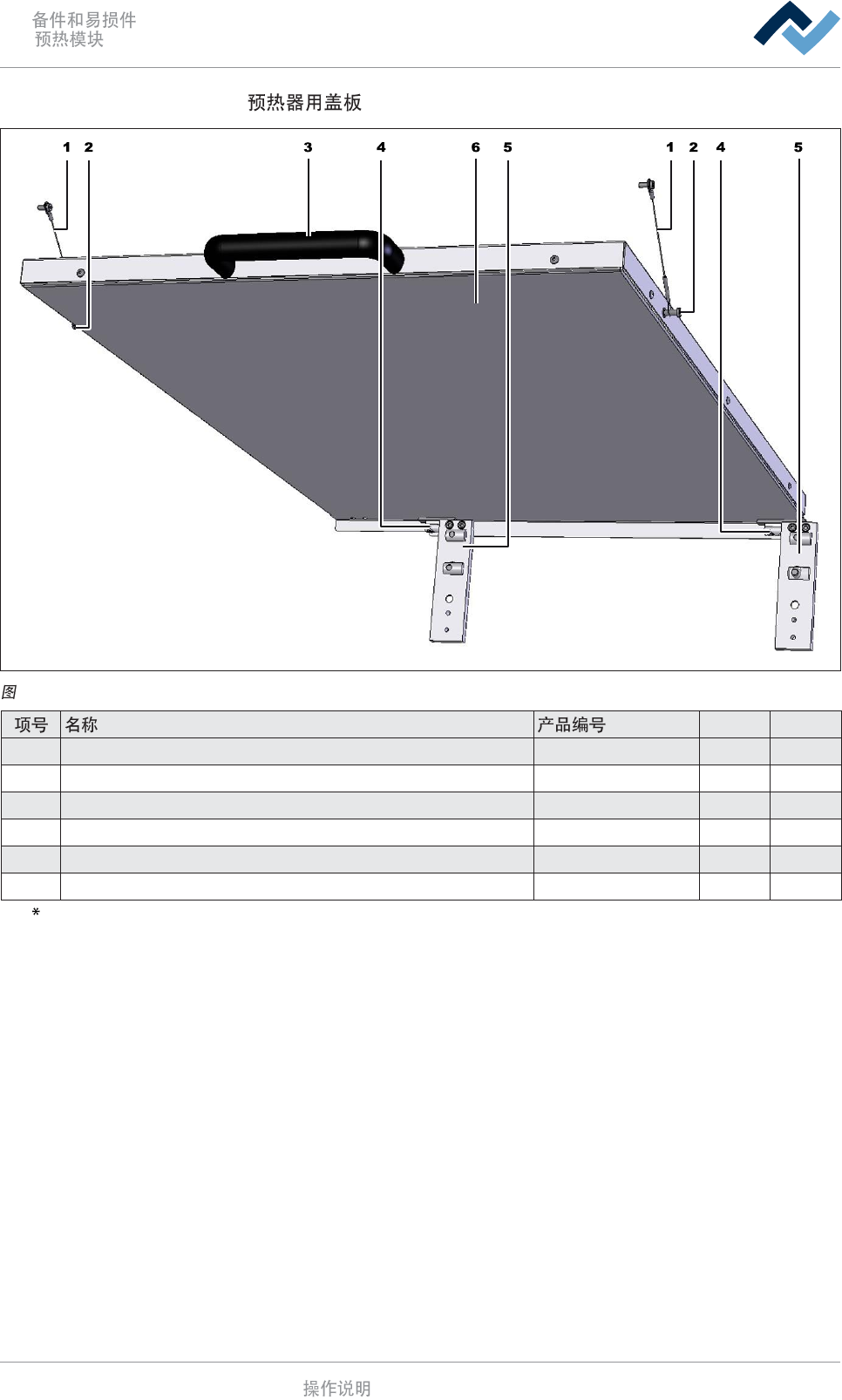

9.4.5
199: EM155-36-01-00a
A
B
1
不锈钢钢丝绳安全绳，PF Safety rope*
328042
x
2
Pan head screw M4
289457
x
3
Bow-type handle insulated, GN-564-25-160
6GR-GN564
x
4
Hinge (frame part)
24159
x
5
Hinge (arm part)
24160
x
6
Insulating
326020
x
始终成对更换！
