Powerflow_zh | Re v. 4a Ersa Gm bH 504 / 561 9 | [Z] 1 90 : EM100 - 26 - 07 -00 Ag A B 1 Angle screwing G1/8, D6 6B O387 x 2 Screw- in angle M5 94 178 x 3 Screw- in angle with cap nut 12 856 6 x 4 Tube 6x1 LW4, PU, blue,…
Powerflow_zh | Rev. 4a
Ersa GmbH
503 / 561
9 |
9.3.2
一
[普通喷头] [超声波喷头]
【普通喷头】
[X]
189: EM100-26-07-00Af
A
B
1
Metal tube
202345
x
2
Quick coupling body for control cabinet assembly
91090
x
2
Sharp ring kit for quick coupling 91090, 91091 (without image)
213396
x
3
Quick coupling, with closing
91091
x
4
助焊区马达泵 Dunker BG45x30SI (轴直径5mm,NEW)
374209
x
5
Screw-in angle
180994
x
6
Filter with bolting
129951
x
7
Straight screwing
95010
x
8
助焊剂泵 Fluxer Pump 24V, 1500 1/min, 1/8"NPT
6PUMG204-3
x
Powerflow_zh | Rev. 4a
Ersa GmbH
504 / 561
9 |
[Z]

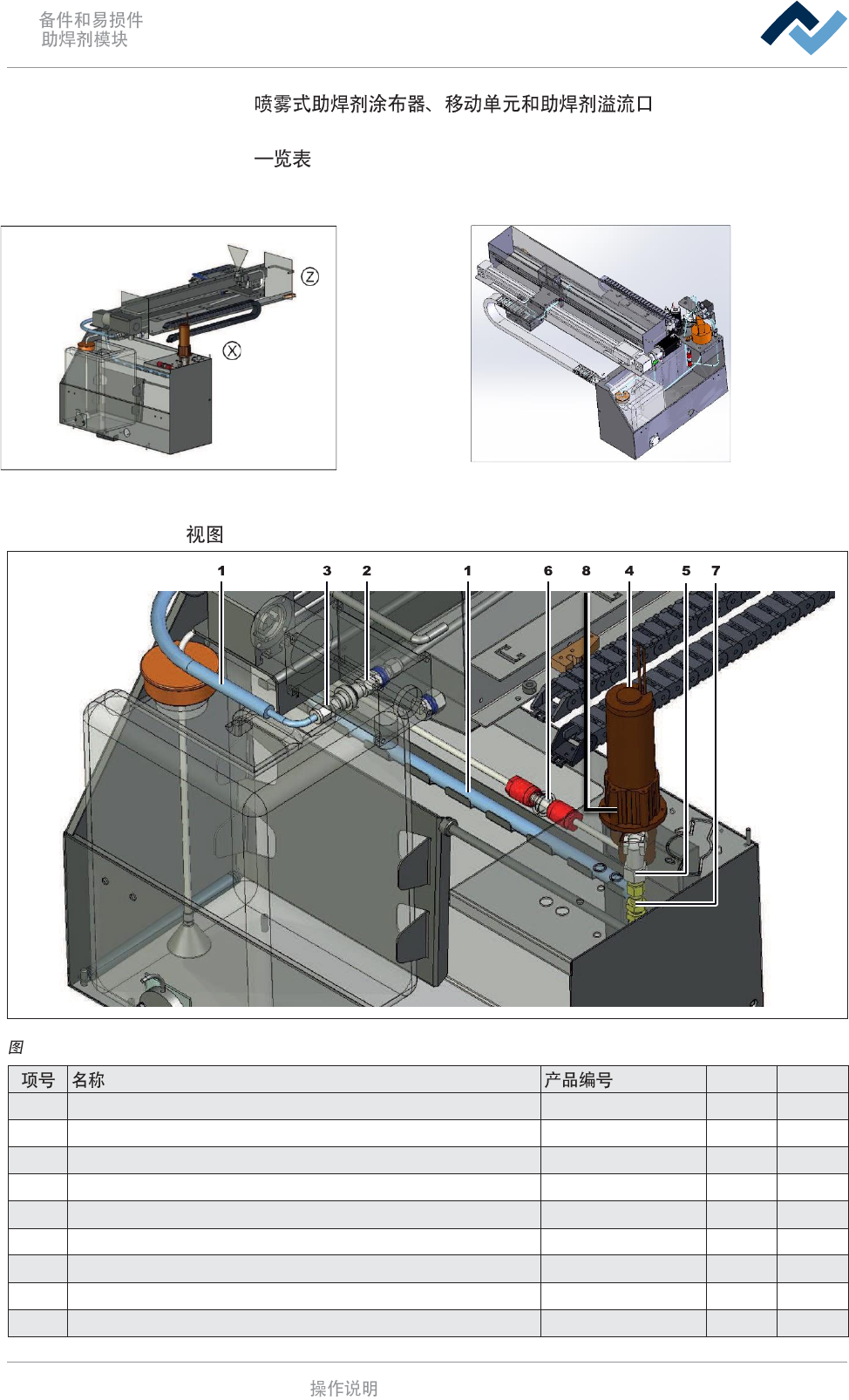

190: EM100-26-07-00Ag
A
B
1
Angle screwing G1/8, D6
6BO387
x
2
Screw-in angle M5
94178
x
3
Screw-in angle with cap nut
128566
x
4
Tube 6x1 LW4, PU, blue, bulk stock
6BO230
x
5
Hose, PTFE, bulk stock
6SPTFE04.0X0.8
x
6
Hose Ø 6/4, PTFE, bulk stock
6SPTFE06X1
x
7
Pressure spring, 08x8x1000
177580
x
7
Powerflow_zh | Rev. 4a
Ersa GmbH
505 / 561
9 |
【超声波喷头】
项号
名称
产品编号
A
B
1
油管 Tube 4 X 0,8 063.835
6SPTFE04.0X0.8
X
2
screw-in angle M5 Inox
94178
X
3
气管 PTFE Dia. 6/4
6SPTFE06X1
X
4
接头 Stanless Elbow Joint
95009
X
5
直通变径 Fitting (Reduction) 6-4
281149
X
