Powerflow_zh | Rev. 4a
Ersa GmbH
548 / 561
9 |

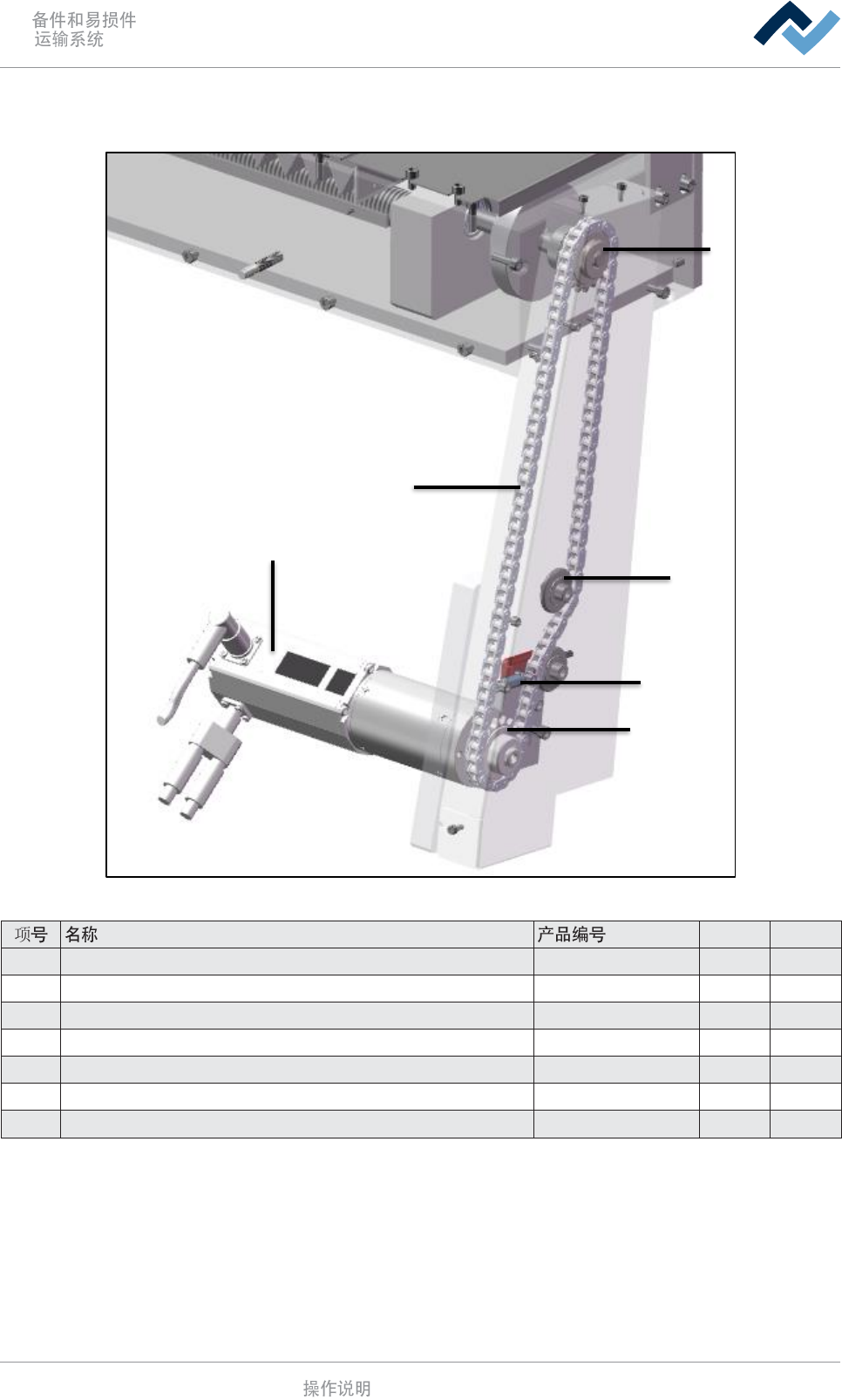

视图 [W]
图
221: EM155-61-05-00b
项
A
B
1
马达Gear Motor BG65x50 PLG63 250:1
6MO-009
x
2
链条CHAIN 9,525X5,72 06B-1 NO PINS
6KE06B-1G67NS
x
2
链条扣 CHAIN LOC 9,525 X 5,72 no pin
6KES06B-1G67NS
x
3
上链轮_焊接区 CHAIN WHEEL ABOVE
371240
x
4
steel disc V2A
248108
x
5
弹簧tension spring RZ-110I
94170
x
6
下链轮_焊接区 CHAIN WHEEL BOTTOM
371244
x
1
2
3
4
5
6
Powerflow_zh | Rev. 4a
Ersa GmbH
549 / 561
9 |

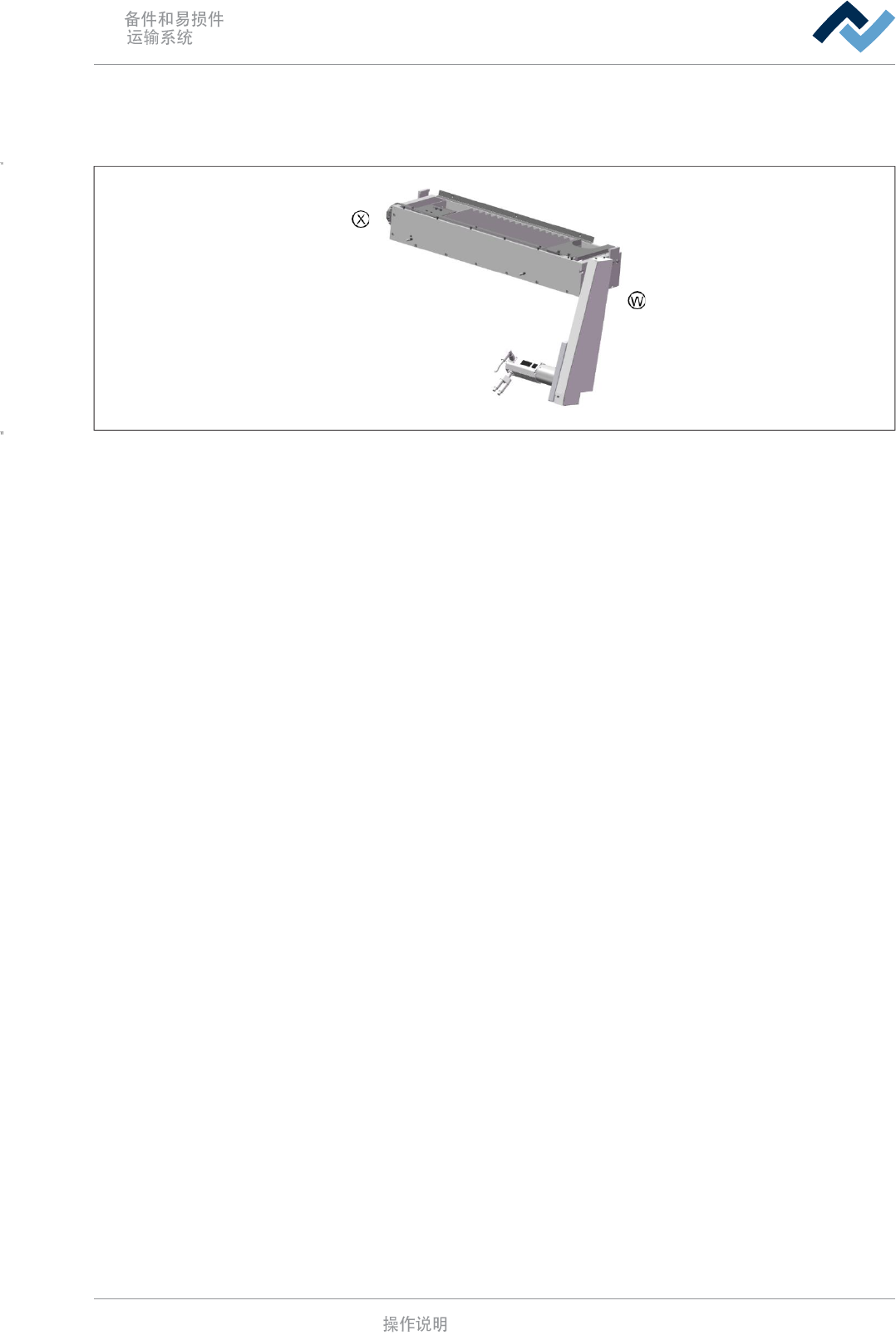

视图 [X]
13
图
222: EM155-61-05-00c
项
A
B
1
Expansion bellows
177906
x
2
Locking ring
6SER-I420472
x
3
Chain wheel Z=26
94153
x
4
Bearing 6004.2ZR/HT, thermostable up to 150°C
6LA60042ZR-T
x
5
Feather key DIN 6885 A 5x5x14
98347
x
1 5 3 2 4 1
