Powerflow_zh | Rev. 4a
Ersa GmbH
528 / 561
9 |
9.5.4
图
206: EM155-41-10-00a
[X]
项号
名称
产品编号
A
B
1
支撑, 热电偶 Holder, Thermocouple
89803
X
2
热电偶 Thermocouple NICR-NI 2Xsensor 350mm
6ETHE-IR6
X
Powerflow_zh | Rev. 4a
Ersa GmbH
529 / 561
9 |
[W]

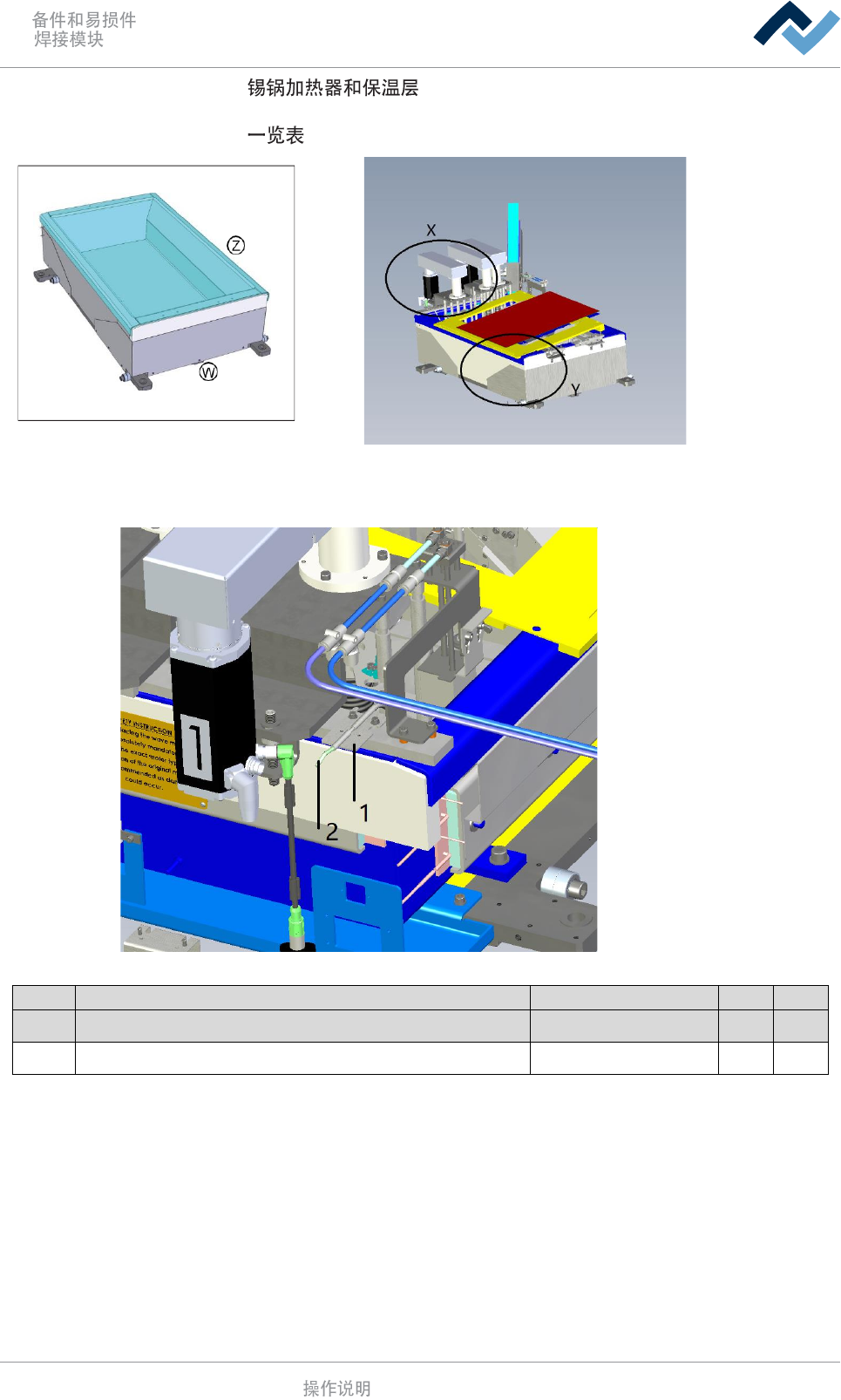

207: EM155-41-10-00b
A
B
1
External Insulating, long, right
85300
x
1
External Insulating, long, left
99958
x
2
Plate heating element 2.4 kW, (6 holes)
85297
x
3
Plate heating element 1.2 kW, (6 holes)
85298
x
4
Insulating
6ZT00025A
x
5
Insulating, short
176759
x
6
Insulating, long
85276
x
1 2
3 6
2 1
Powerflow_zh | Rev. 4a
Ersa GmbH
530 / 561
9 |
[Z]

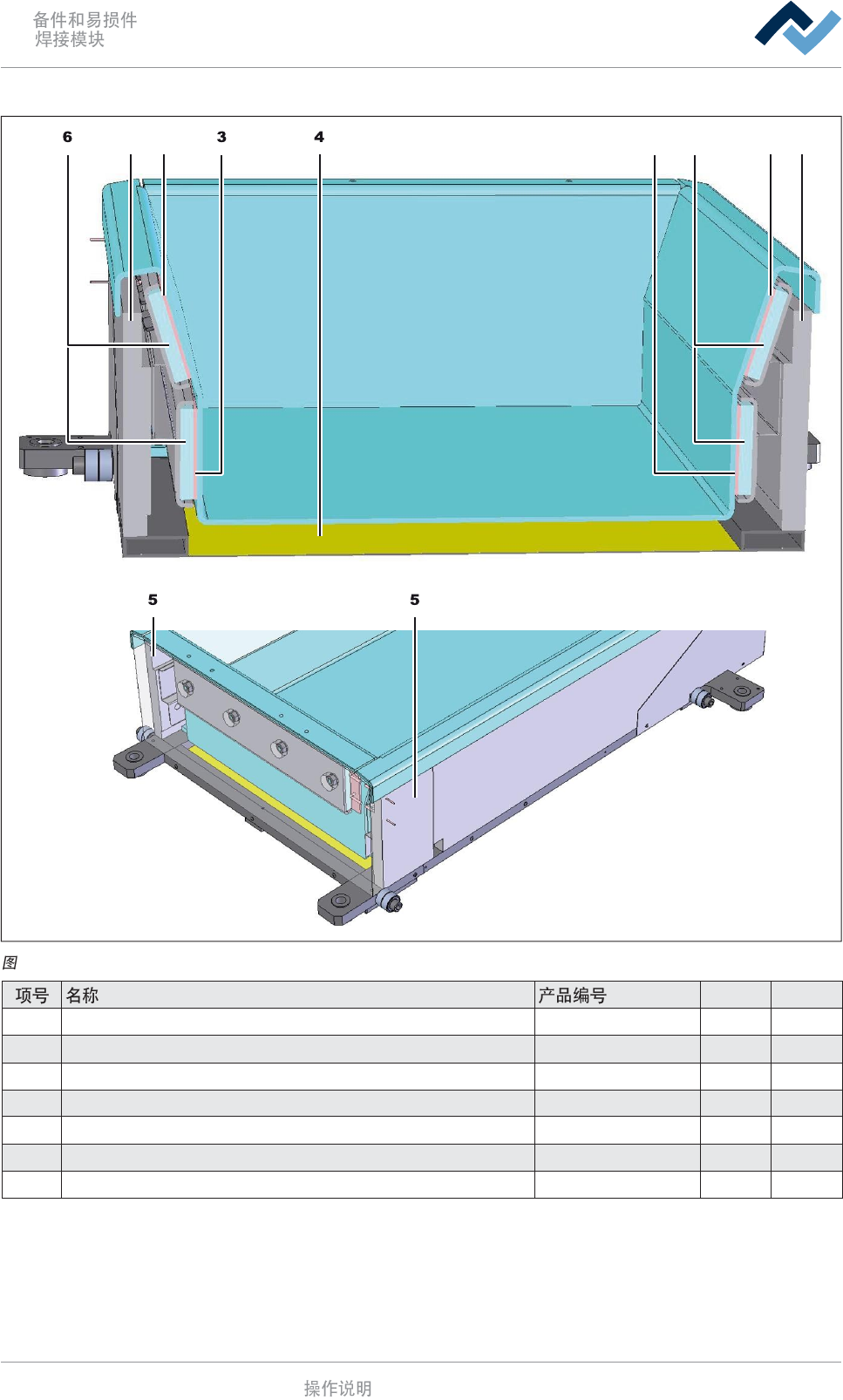

208: EM155-41-10-00c
A
B
1
Insulating, front 1
314163
x
2
Insulating, front 2
314162
x
3
Plate heating element 1.3 kW, (4 holes)
312965
x
4
Insulating, short
314165
x
[Y]
项号
名称
产品编号
A
B
1
滚珠轴承 Ball Bearing 62201.2RSR
85205
X
2
调整配合垫圈 Compensation Washer; 12/18x1 DIN988
6SA12X1.00
X
1 4 3 3 4 2
