Powerflow_zh | Re v. 4a Ersa Gm bH 530 / 561 9 | [Z] 208: EM15 5- 41 - 10 - 00c A B 1 Insulating, front 1 31 416 3 x 2 Insulating, front 2 31 416 2 x 3 Plate heating element 1.3 kW, (4 ho le s) 31 296 5 x 4 Insulating, s…
Powerflow_zh | Rev. 4a
Ersa GmbH
529 / 561
9 |
[W]
207: EM155-41-10-00b
A
B
1
External Insulating, long, right
85300
x
1
External Insulating, long, left
99958
x
2
Plate heating element 2.4 kW, (6 holes)
85297
x
3
Plate heating element 1.2 kW, (6 holes)
85298
x
4
Insulating
6ZT00025A
x
5
Insulating, short
176759
x
6
Insulating, long
85276
x
1 2
3 6
2 1
Powerflow_zh | Rev. 4a
Ersa GmbH
530 / 561
9 |
[Z]
208: EM155-41-10-00c
A
B
1
Insulating, front 1
314163
x
2
Insulating, front 2
314162
x
3
Plate heating element 1.3 kW, (4 holes)
312965
x
4
Insulating, short
314165
x
[Y]
项号
名称
产品编号
A
B
1
滚珠轴承 Ball Bearing 62201.2RSR
85205
X
2
调整配合垫圈 Compensation Washer; 12/18x1 DIN988
6SA12X1.00
X
1 4 3 3 4 2
Powerflow_zh | Rev. 4a
Ersa GmbH
531 / 561
9 |
9.5.5

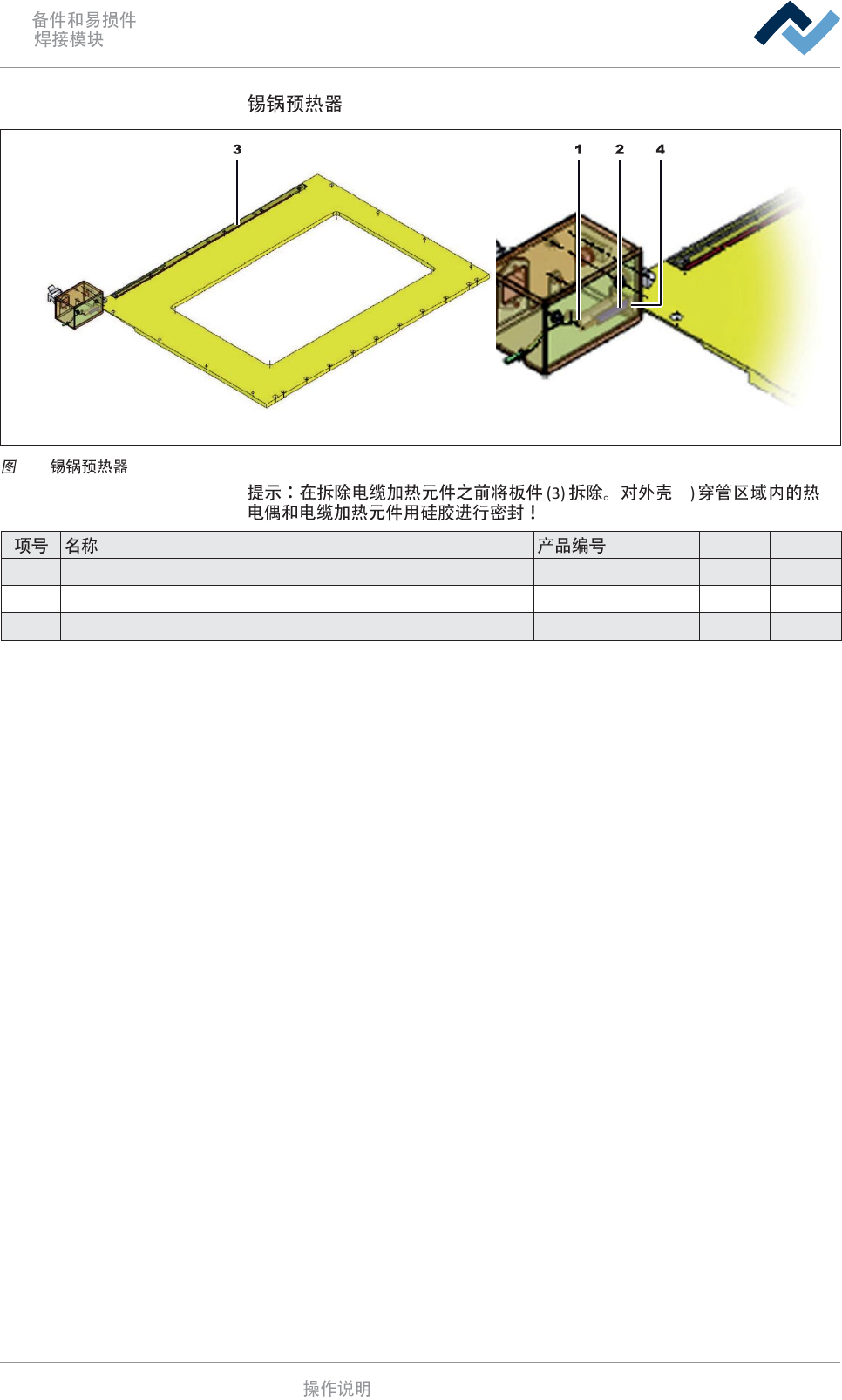

209:
(3) (4)
A
B
1
Thermocouple NiCr-Ni, NL0200, KL=10000
6ETHE-IR10
x
2
Cable-Heating element 490 W
113489
x
3
热桥盖板 Cover Sheet
176468
X
