Powerflow_zh | Re v. 4a Ersa Gm bH 511 / 561 9 | 9.3.6 19 5: A B 1 Energy chain 0 25 0/L1100 typ e 94 181 x 2 Energy c hai n 0180/L1 170 ty pe 10 160 1 x 3 Energy chain 0250/L475 ty pe 10 160 3 x 4 Energy chain 0130/L60 …

100%1 / 561
Powerflow_zh | Rev. 4a
Ersa GmbH
510 / 561
9 |
9.3.5
194: EM100-26-05-00a
项号
名称
产品编号
A
B
1

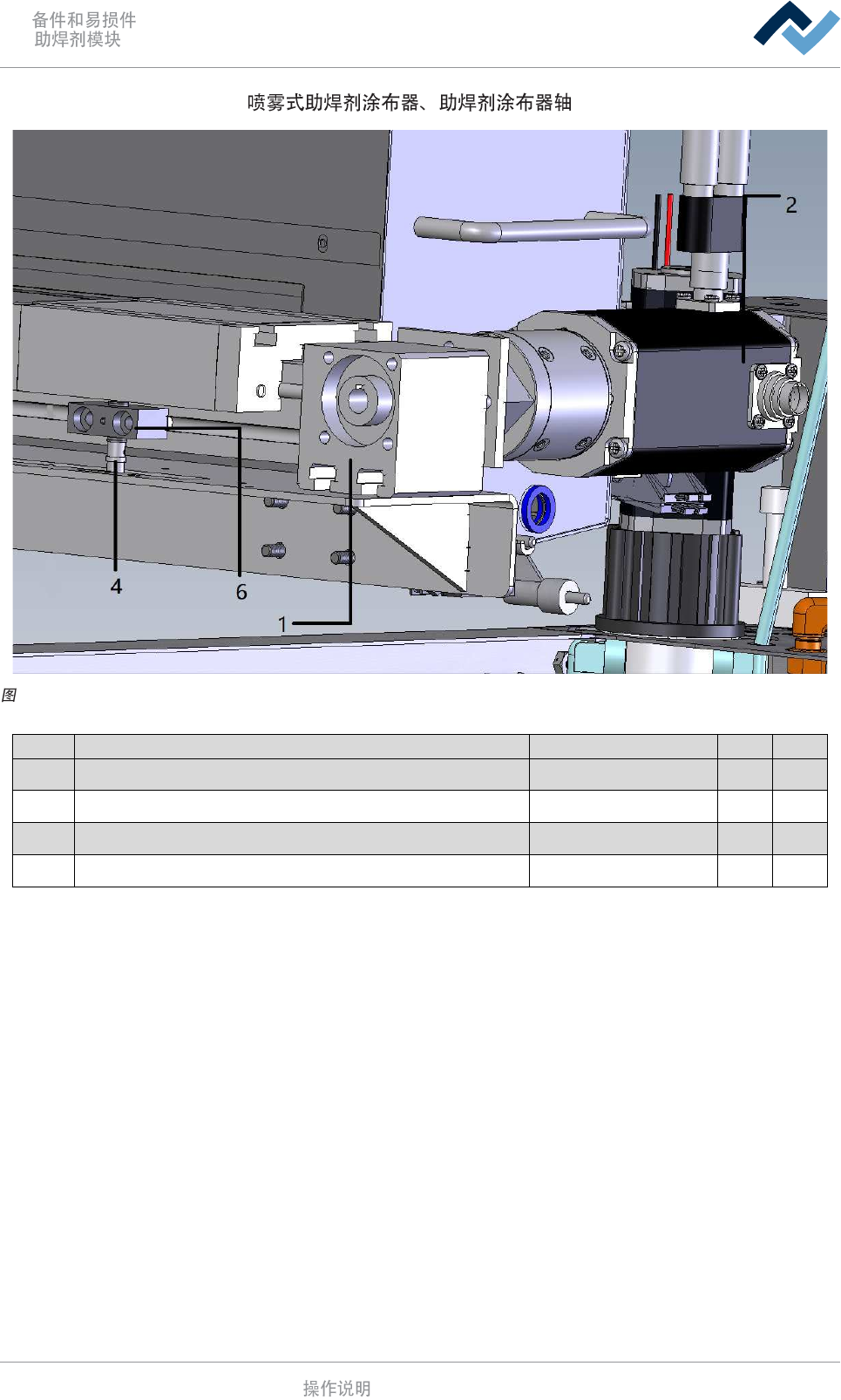

线性导轨,PF Linear Axis 40 Fluxer，24
169723
X
2
马达 Dunker BG65x25CI PLG52
214559
X
4
接近开关 Proximity Switch SA=2mm DW-AS-423-M8-0
6ESCHN18
X
6
感应器安装块，助焊剂区 Sensor Mounting，Powerflow
93993
X
Powerflow_zh | Rev. 4a
Ersa GmbH
511 / 561
9 |
9.3.6
195:
A
B

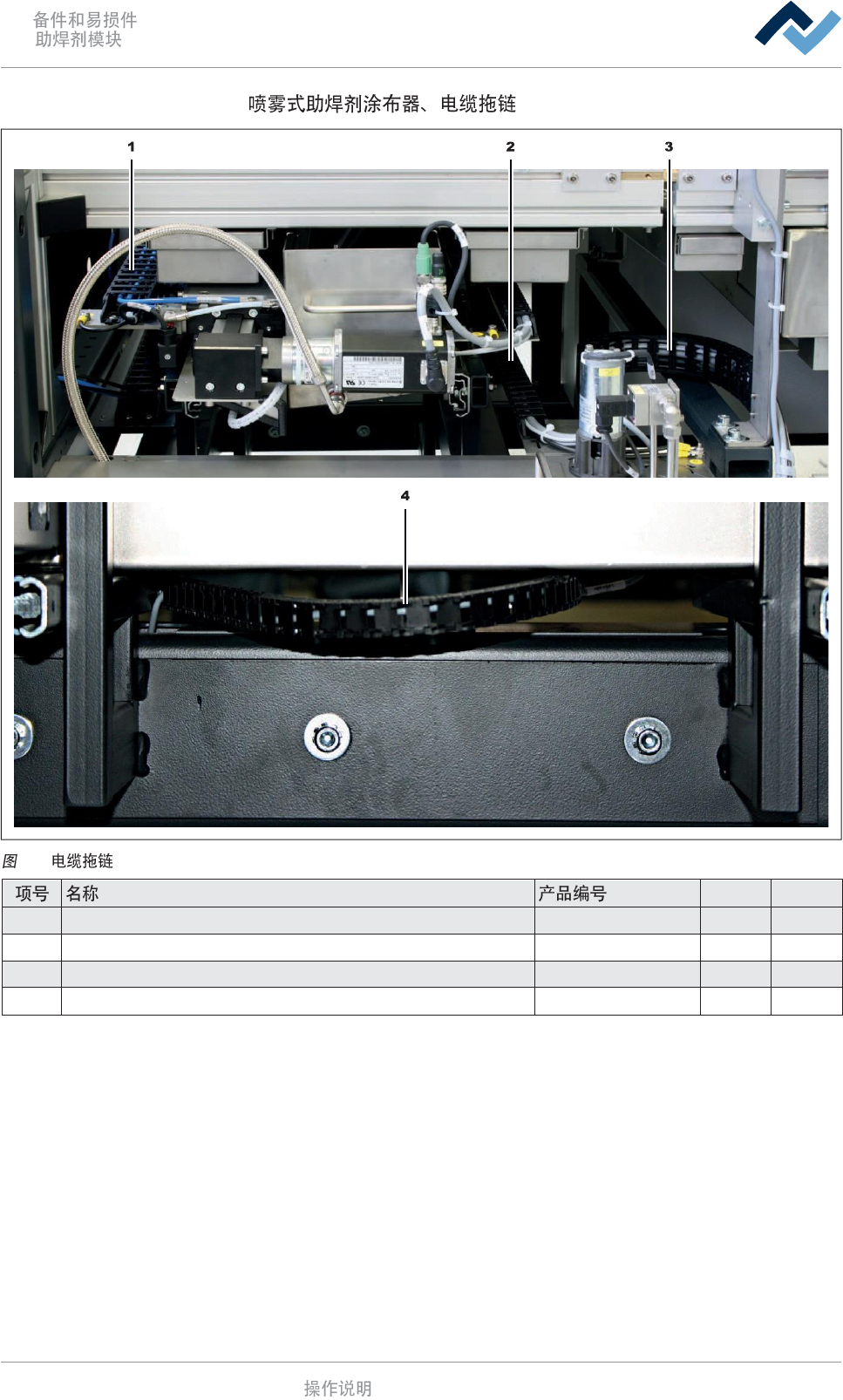

1
Energy chain 0250/L1100 type
94181
x
2
Energy chain 0180/L1170 type
101601
x
3
Energy chain 0250/L475 type
101603
x
4
Energy chain 0130/L600 type
101565
x
Powerflow_zh | Rev. 4a
Ersa GmbH
512 / 561
9 |
9.3.7

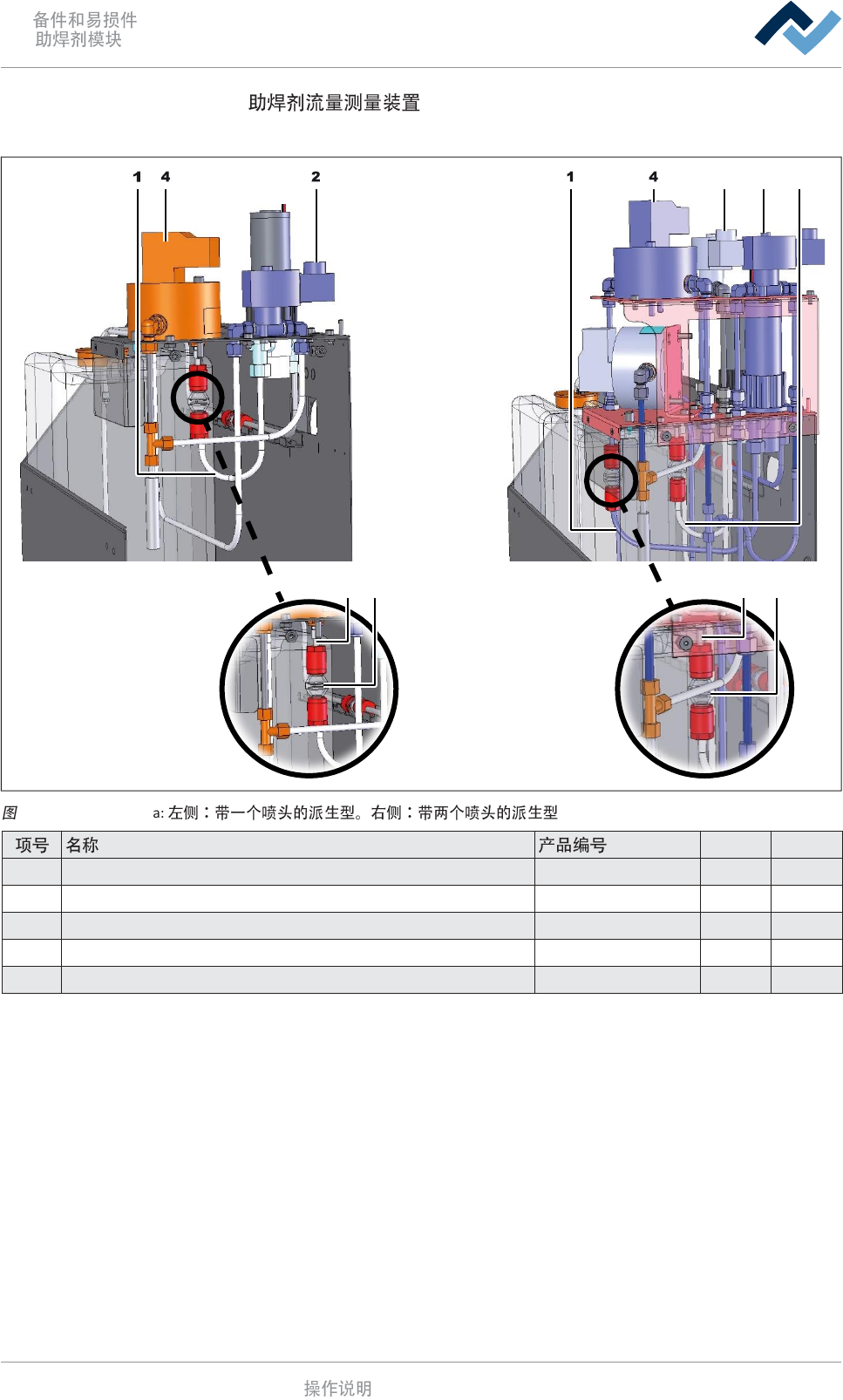

【普通喷头】
196: EM100-26-11B_a:
A
B
1
Hose Ø 6/4, PTFE, bulk stock
6SPTFE06X1
x
2
2/2 directional valve
6BO-ASCO-02
x
3
接头 Buckhead Screwing
95010
x
4
Flow meter
272105
x
5
过滤器 P0 Filter For Flux Medium P0
129951
x
2 2 1
3 5
3 5
